Device configuration:

Rail Transfer Cart For Steel Pipes

This is a versatile material handling and transportation solution for the transportation of heavy materials such as steel structures and rebar.

Rail cart design analysis

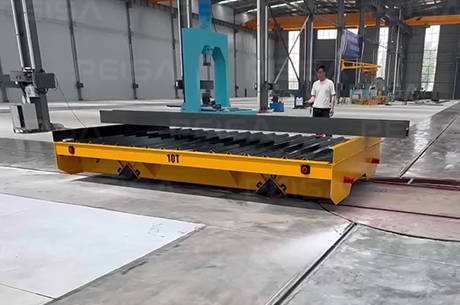

First of all, in terms of load-bearing capacity, according to the needs of customers for transporting workpieces, a rail cart with a load capacity of 10 tons is designed. Because the rail transfer carts transport not only the steel structure but also the rebar, we have carried out special treatment on the platform, adding V-shaped grooves, which help to safely transport the rebar.

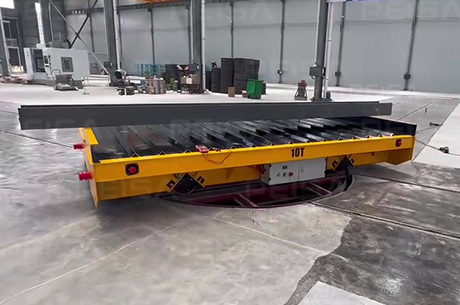

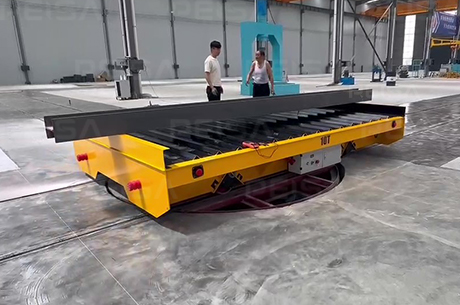

In the process of transportation, the rail cart needs to change the direction, we recommend to customers to use the turntable car to change the direction of transportation, do not need complex track layout, save manpower and material resources.

Load-bearing capacity: The 10-ton load bearing capacity ensures that rail transfer carts can safely transport most common steel structures and rebar, which provides customers with a wide range of transportation options.

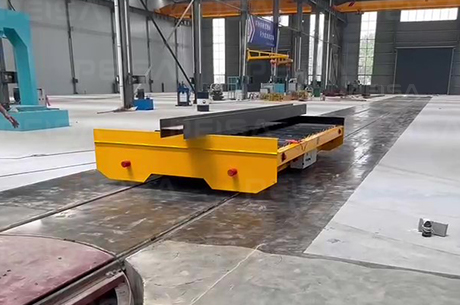

V-shaped groove design: The V-shaped groove installed on the table is a clever design that helps to fix and stabilize the steel structure in transit, preventing sliding or shifting during transportation, thereby protecting the cargo and improving the safety of transportation.
Versatility: In addition to steel construction, railcars can also transport steel bars.
