load:10t
Table size: 4000*2000*600 mm
Power supply mode:Battery Powered

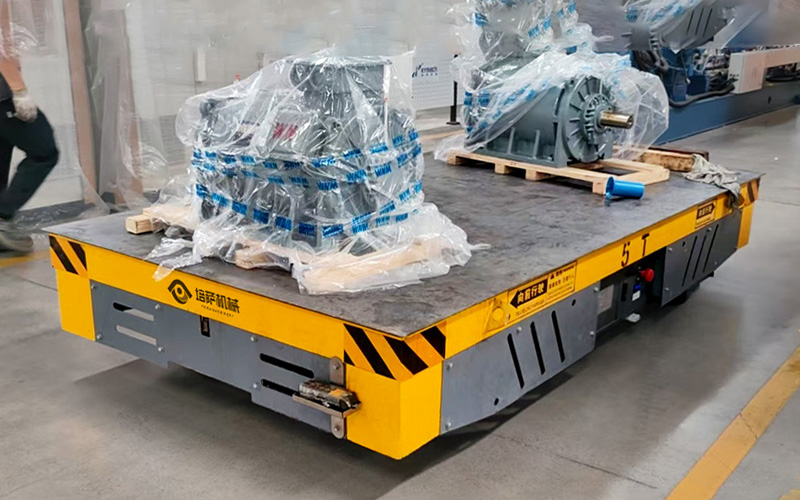

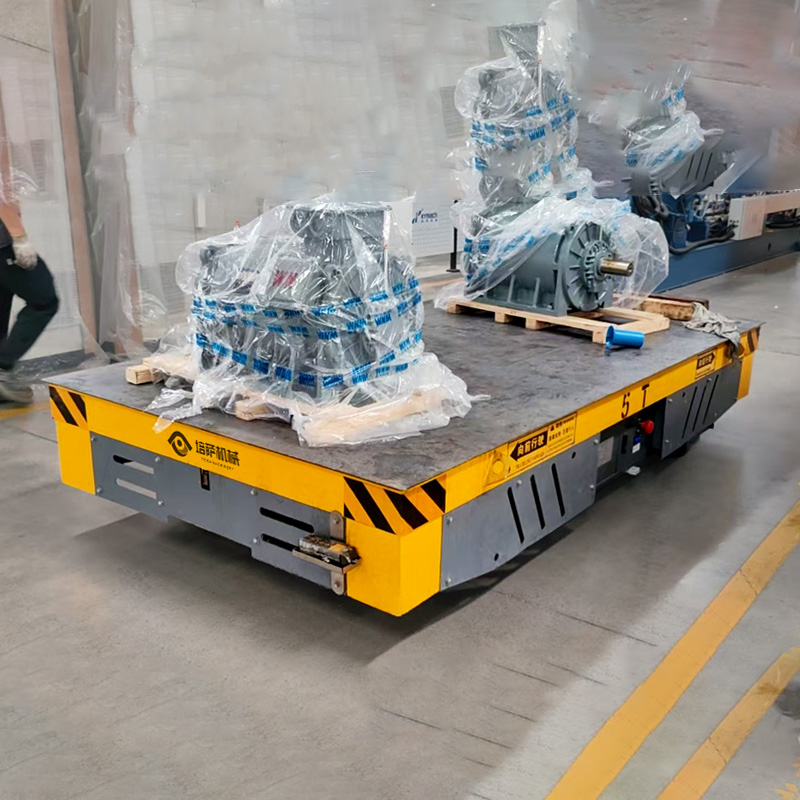

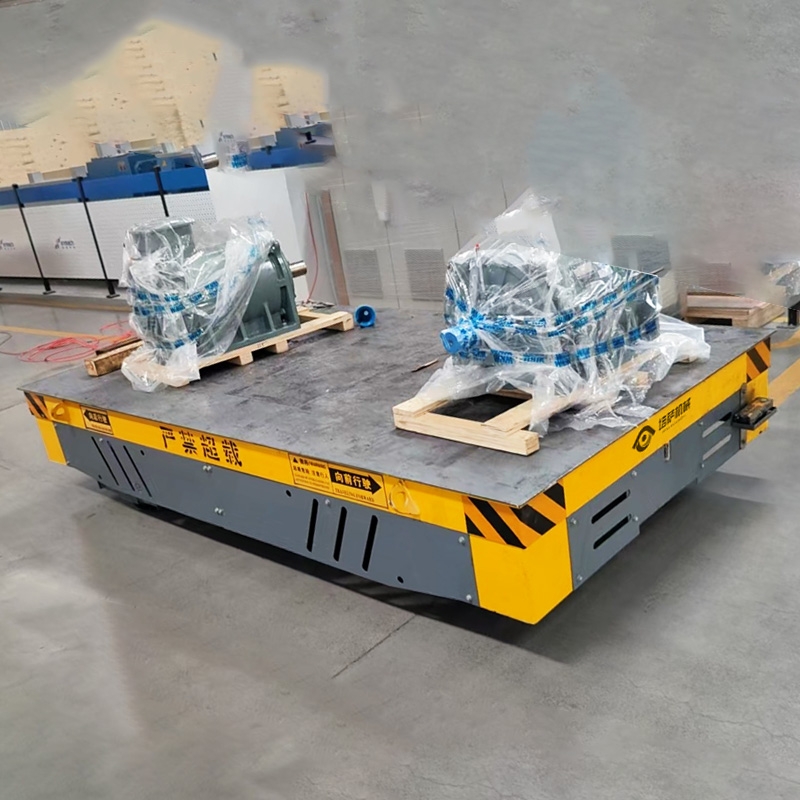

Battery-powered Self-propelled Cart
The Battery-Powered Self-Propelled Cart is a custom-designed vehicle for mold transportation. It can move heavy molds and injection molds from one location to another with exceptional flexibility and ease.
This cart features four wheels made of wear-resistant polyurethane for high impact resistance. Each wheel serves a specific function: two drive wheels and two steering wheels. Wheel size and material can be customized according to the user’s requirements and the working environment.
The mold transport battery-powered self-propelled cart is made entirely of Q235 steel. Its specially engineered structure provides exceptional load-bearing capacity and resists deformation even under heavy loads—an essential feature for mold handling.
PEISA Machinery offers free, high-quality customization services and can design mold transport carts for a wide range of industries.
We provide tailored solutions for transporting pipes, molds, metal structures, metal coils, and more.

| Model | DWP | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of frame | Steel plates welded,beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Break method | electromagnetic brake | |||||||
| Ground clearance | 500-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protectio | Infrared contact stop, fan-scanning radar | |||||||
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
