Technical Parameter

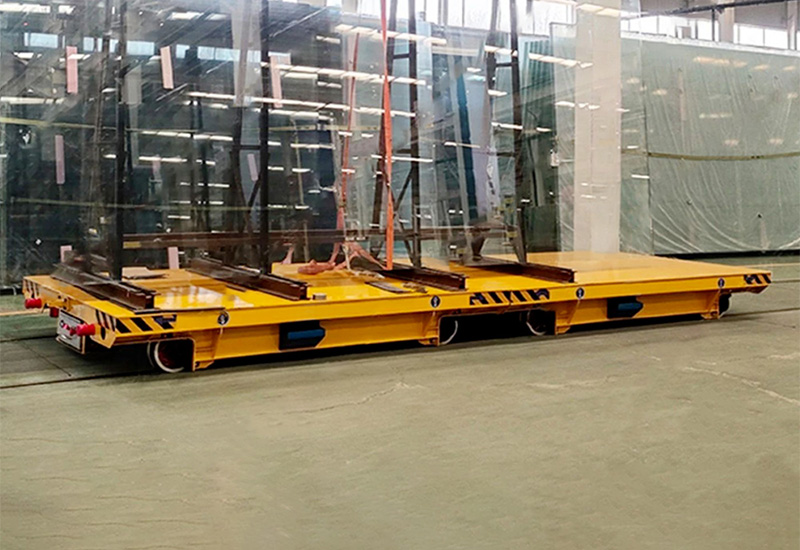

Mobile Transfer Cart
The DPX series heavy-duty Mobile Transfer Cart is a mobile platform used for transporting heavy materials in factories. It is capable of carrying loads ranging from 1 to 1000 tons.
The Mobile Transfer Cart is powered by a battery, which serves as the energy source for the flatbed cart. DC power is supplied to the control box, allowing the cart to start, move forward, and reverse through either a wireless remote control or a wired handle.
Advantages:
The heavy-duty Mobile Transfer Cart is safe and highly maneuverable. It operates on a track system, which provides accurate guidance and precise transportation. The speed is adjustable to suit various needs.
Its DC motor allows for smooth starting and stopping. In addition, it does not require high-precision track installation, making it suitable for applications with lower operating frequency and long transportation distances.
Applications:
Injection molding workshops, glass factories, steel structure workshops, mold workshops, underground mines, metallurgy, aerospace, coal, nuclear energy, water conservancy, and more.
| Model | DPX |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 |
| Rail Distance(mm) | 1430 | 2000 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Battery Capacity(Ah) | 180 | 200 | 200 | 260-300 | 300-600 |
| Break method | electromagnetic brake |
| Ground clearance | 500-100 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protectio | Infrared contact stop, fan-scanning radar |
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
