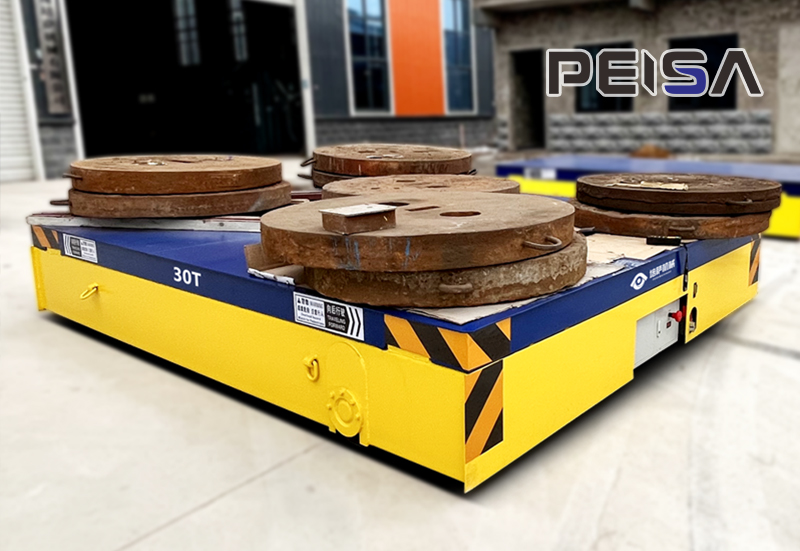

load:30 Ton (Custom)
Table size: 4500*2000 mm
Power supply mode:Battery Powered
Customized

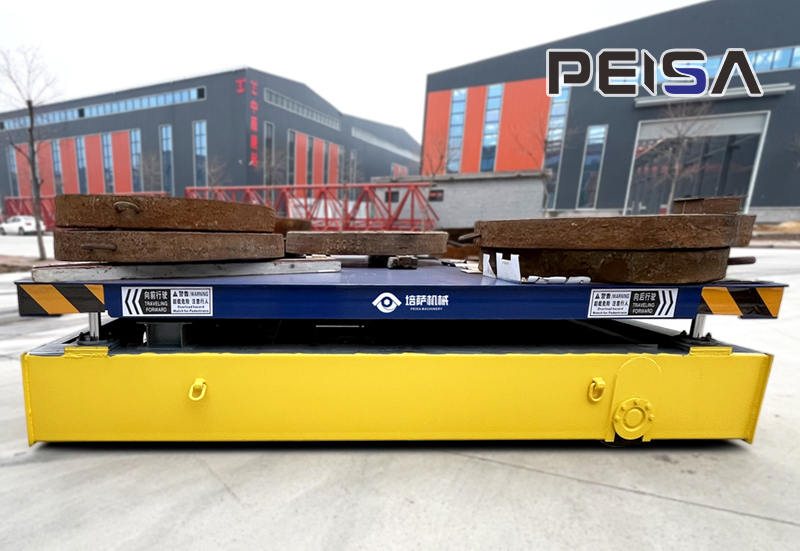

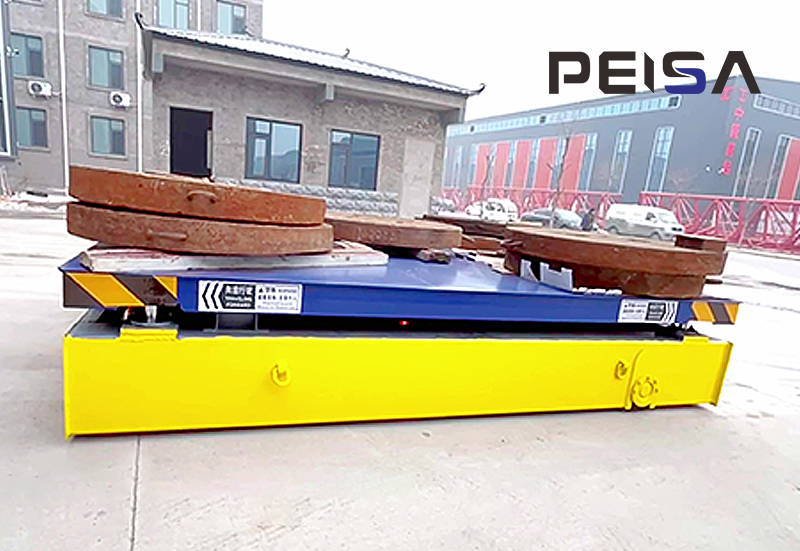

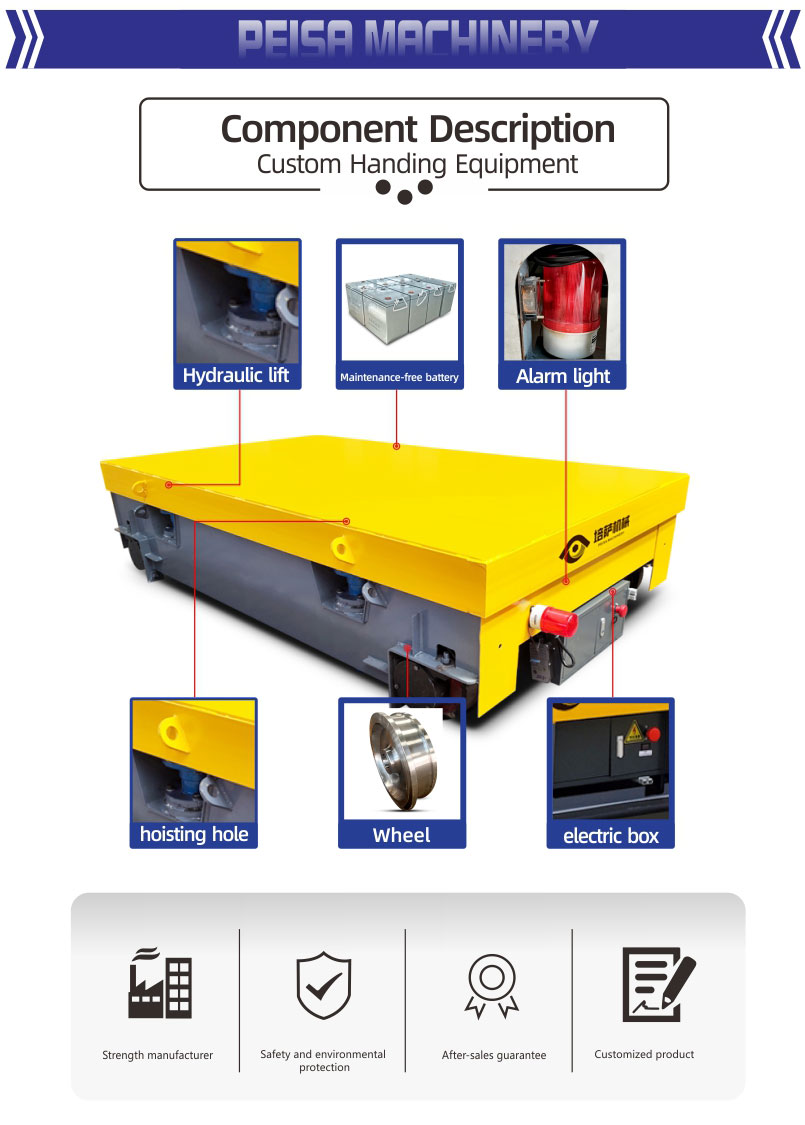

Trackless Hydraulic Lift Platform car is a highly efficient industrial equipment designed for the handling and precise positioning of heavy materials. This kind of equipment is equipped with hydraulic lifting platform, with trackless design, customized load capacity, support battery power supply, cable pain power supply, etc., and support remote control operation.
Main feature of Hydraulic Lift Platform:
Trackless design:
Free movement: The trackless design allows the vehicle to move freely on the flat or slightly uneven ground, which is suitable for a variety of complex working environments.
Flexible operation: The vehicle can turn or rotate in place in a small space, suitable for use in a limited space.
Hydraulic lifting platform:
Strong load: The hydraulic system supports a heavy load capacity of 30 tons and can smoothly lift heavy materials or equipment.
Precise positioning: the height of the lifting platform can be adjusted precisely according to the demand, which is convenient for the loading and unloading of materials and accurate positioning.
Battery power supply:
Environmental protection and energy saving: The use of battery power supply, usually using lithium batteries or lead-acid batteries, with zero emissions, low noise characteristics, suitable for indoor and outdoor environments.
Long life: Large capacity battery design, a single charge can meet the needs of a whole day of work, battery charging is relatively fast.
Remote control operation:Remote control: The operator can control the movement, lifting and other operations of the vehicle through the wireless remote control, reducing the risk of close operation and improving work efficiency and safety.
Easy operation: The remote control design is intuitive, the user interface is simple and easy to understand, the operation is simple, suitable for use under various working conditions.
Safety device:
Emergency stop button: The remote control and the car body are equipped with an emergency stop device, which can immediately stop the operation of the equipment in an emergency to ensure safety.
Anti-collision protection: Some models are equipped with anti-collision sensors and automatic deceleration function to ensure that the device can automatically slow down or stop in case of an obstacle.
Model | DWP | |||||||
Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
Structure of frame | Steel plates welded,beam structure | |||||||
Table Size (mm) | Customized | |||||||
Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 | |
Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 | |
Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
Break method | electromagnetic brake | |||||||
Ground clearance | 500-100 | |||||||
Balance adjustment | mechanical conditioning | |||||||
Operating Mode | Wireless remote control/car handle | |||||||
Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
Safety protectio | Infrared contact stop, fan-scanning radar | |||||||
Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
