Technical Parameter
The Lifting Platform Transfer Cart is a special electric flat cart specially designed for customers, which belongs to one kind of lifting platform. The specific parameters are as follows:
Load capacity: 1 ton
Transport material: insulation material
Lifting mode: Scissor type
Lifting height: 1 meter
Size: 1500*1100*800

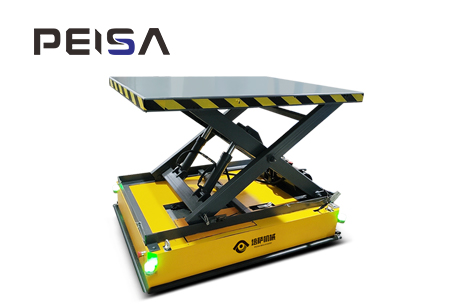

Lifting Platform Transfer Cart The lifting platform transfer cart is specialized in transporting insulation materials with a load capacity of 1 ton. It uses a scissor-type lifting mechanism, which is stable and fast, and the maximum lifting height is 1000mm, which can meet the height requirements of 1000mm.
In addition to the basic Lifting function, the Lifting Platform Transfer Cart also has the function of vertical and horizontal movement, so that the car can move flexibly in a small space, improving the convenience of work.
The Lifting Platform Transfer Cart has a compact structure, easy operation, a remote control can control the operation. It is ideal for transportation in the power, communication, cable and other industries.
| Model | DWP |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Break method | electromagnetic brake |
| Ground clearance | 500-100 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protectio | Infrared contact stop, fan-scanning radar |
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
