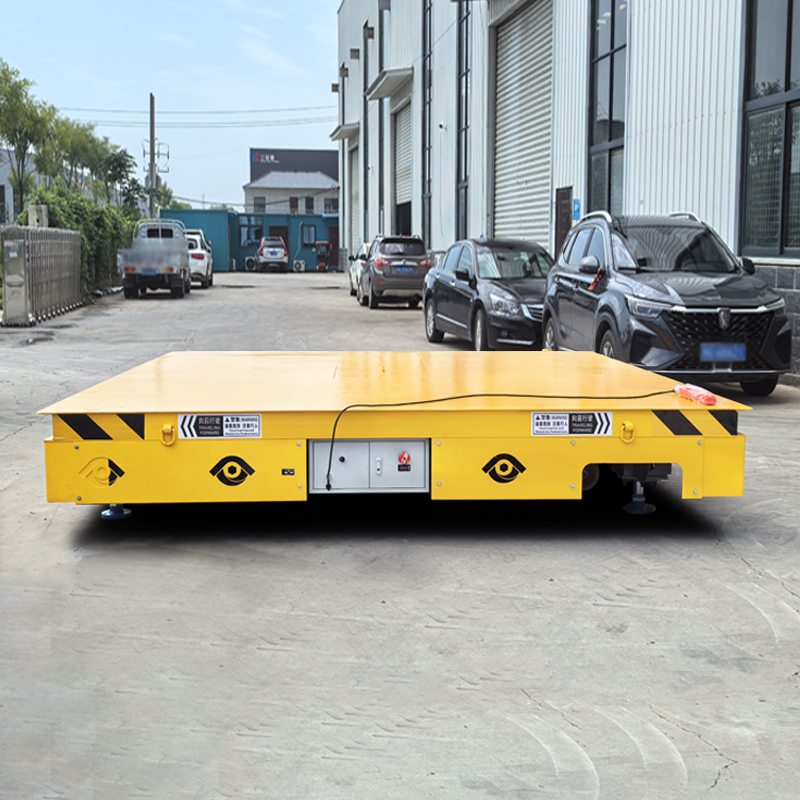

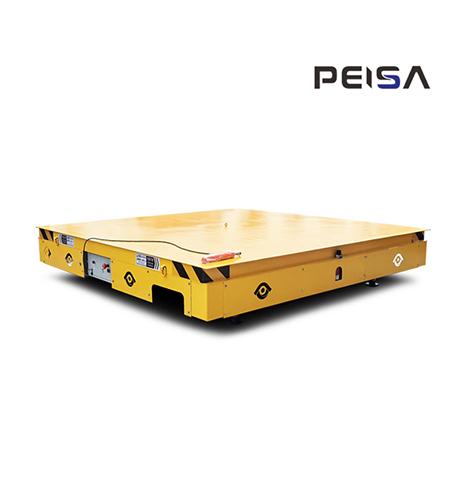

Transfer Cart With Hydraulic Lift Leg

Transfer Cart With Hydraulic Lift Leg

This is a special transfer cart equipped with hydraulic lifting legs, designed for factory applications.

In this project, large products must be transported to an inspection area, a process that takes approximately four hours. When heavy loads remain on stationary wheels for long periods, the wheels can easily deform, significantly shortening their service life. For this type of project, conventional trackless transfer carts face the following challenges:

1. Tens of tons of equipment remain supported by stationary wheels for extended periods

2. Wheels are prone to uneven deformation

3. Persistent static pressure is applied to the wheel hubs

4. Wheel replacement is required every few months

PEISA’s Solution

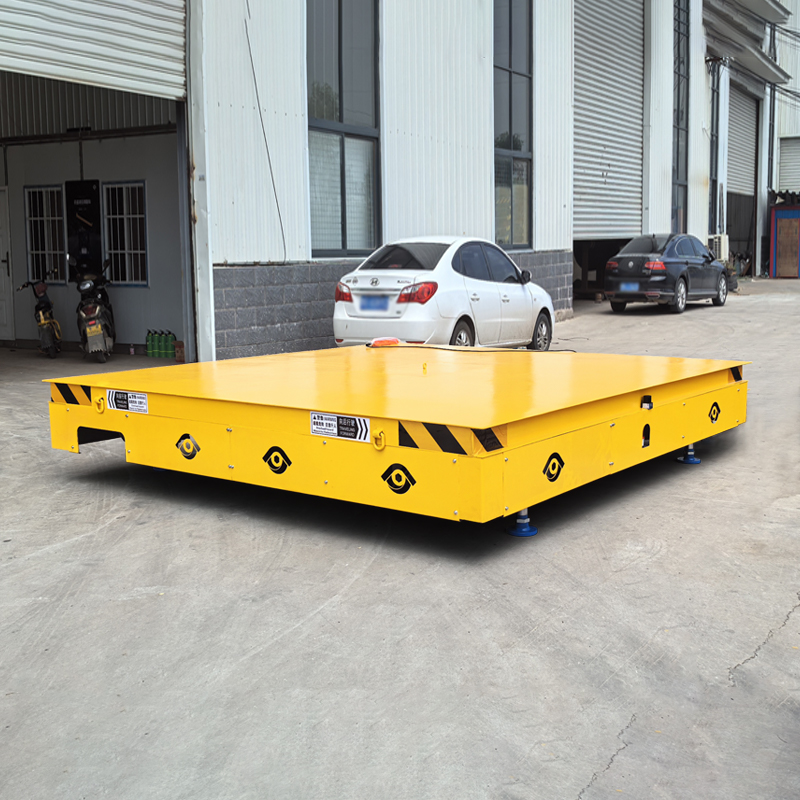

This special transfer cart with hydraulic lifting legs is equipped with four hydraulic supports at the bottom, simplifying operation while ensuring high efficiency.

• Smooth Transportation: The operator uses a remote control to transport large products to the inspection area.

• Hydraulic Support Activation: Upon arrival, the hydraulic supports are deployed to steadily lift the vehicle.

• Wheel Pressure Relief: The full load is transferred to the hydraulic legs, completely relieving stress from the wheels.

• Safe Inspection: The cargo remains absolutely stable for precise long-duration inspections.

• Quick Reset: After inspection, the supports retract and the vehicle resumes transport.

Real Customer Benefits

• Over 3× Longer Wheel Life: Eliminates tire deformation caused by long-term static pressure

• Improved Inspection Stability: Hydraulic supports fully secure the vehicle, preventing even the slightest movement

• Multi-Purpose Functionality: Maintains the flexibility of a trackless transfer cart while solving static load issues

• Lower Long-Term Costs: Reduces expenses and downtime from frequent wheel replacement

•
