Technical Parameter

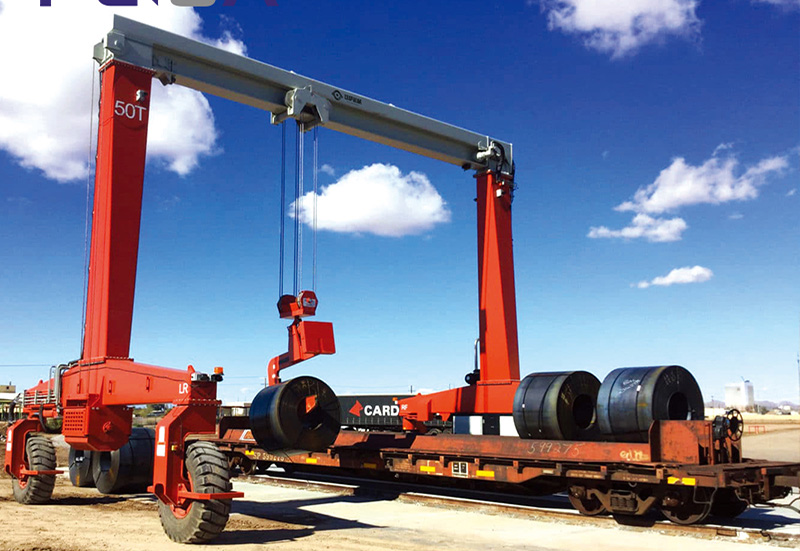

Rubber Gantry Crane (Rubber-Tired Mobile Gantry Crane)
A Rubber Gantry Crane is a rubber-tired, mobile gantry crane designed to overcome the limitations of traditional rail-mounted cranes. It is widely used in stacking yards and container yards for container handling, stacking, and unloading operations, which are its most common and frequent applications.
Relying on the flexibility and mobility of specially designed rubber tires, the Rubber Gantry Crane is highly efficient for transporting containers and other heavy cargo, allowing smooth movement across the yard without the need for rail infrastructure.
| Item | MTCS-5 | MTCS-10 | MTCS-20 | MTCS-30 | MTCS-40 | MTCS-55 | MTCS-100 |
|---|
| Capacity | 5 t | 10 t | 20 t | 30 t | 40 t | 55 t | 100 t |
| Effective Inner Width (customizable) | 3100 mm | 3000–6000 mm | 3000–6000 mm | 3000–6000 mm | 3000–8000 mm | 3000–8000 mm | 3000–12000 mm |
| Lifting Height (customizable) | 3000 mm | 2000–5000 mm | 2000–5000 mm | 2000–5000 mm | 3000–8000 mm | 3000–8000 mm | 3000–9000 mm |
| Min. Ground Clearance | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Power Mode | Diesel engine / Cable power / Lithium battery | Same | Same | Same | Same | Same | Same |
| Walking Device | Hydraulic drive / Electric motor | Same | Same | Same | Same | Same | Same |
| Steering Mode | Diagonal running / Straight running / Pivot steering / Ackermann steering | Same | Same | Same | Same | Same | Same |
| Empty-load Max. Speed | 115 m/min | 115 m/min | 115 m/min | 115 m/min | 115 m/min | 80 m/min | 80 m/min |
| Full-load Max. Speed | 80 m/min | 80 m/min | 80 m/min | 80 m/min | 80 m/min | 50 m/min | 50 m/min |
| Gradeability (Empty / Full load) | 6% / 3%
|
| Control Mode | Cab control (remote control optional)
|
| Tires | Solid tire
|
| Lifting Tools | Hook (optional automatic spreader)
|
Main Components of the Rubber Gantry Crane:
To ensure high load-bearing capacity and operational stability, all components are sourced from qualified and reliable suppliers, guaranteeing long-term performance and safety.
If required, I can further optimize this description for technical specifications, product catalogs, or port and yard project proposals.
