What Is a Motorized Transfer Cart? Types, Applications & How It Works

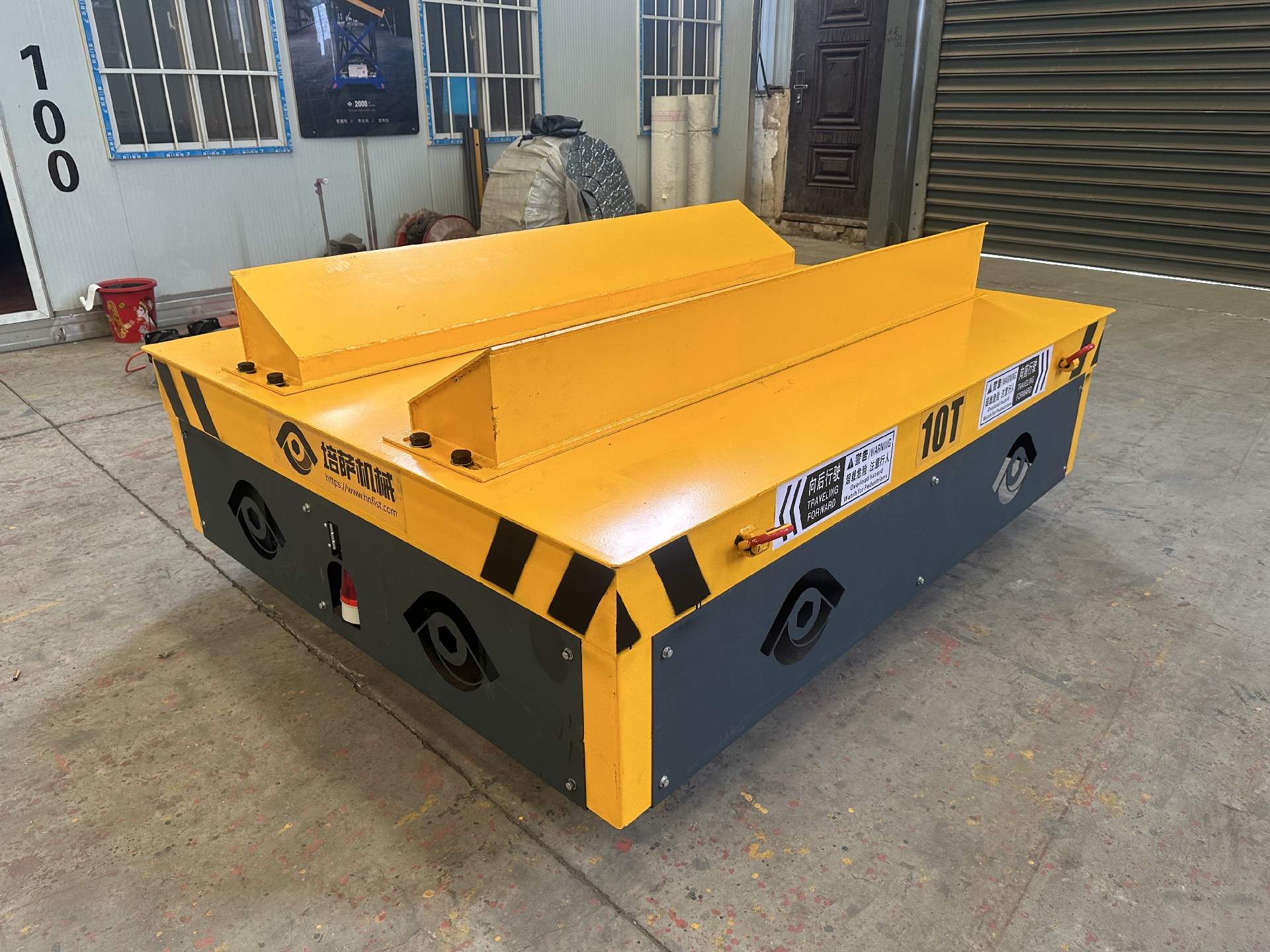

The Motorized Transfer Cart is one of PEISA Machinery’s DWP series products. It is commonly used in manufacturing plants, mold storage warehouses, and inter-workshop transportation applications. As a highly flexible material handling solution, it offers multiple steering modes to meet different transportation requirements. Controlled by a wireless remote control, operators can operate the cart remotely, enabling flexible and efficient material handling.
The term "Motorized Transfer Cart" refers to the DWP series of products. These are wheeled transfer vehicles designed to operate on flat surfaces. They offer a high level of flexibility, allowing materials to be moved between different workshops and workstations within a factory.
With load capacities ranging from 1 to 150 tons, they can be customized to handle materials of different weights. Unlike manual push carts, these carts are electrically powered. Operators can use a wireless remote control to operate the cart and move raw materials to the required location.
The DWP series is available with different steering configurations for different transportation needs, covering the requirements of around 90% of our customers' working environments.
1. Hydraulic Steering Type
This type has a wide range of applications, with rated load capacities from 1 to 150 tons. It is especially suitable for heavy-load transportation because of its high straight-line tracking accuracy, which remains stable even when operating on uneven ground.
Standard hydraulic steering models usually have a steering angle of around 40 degrees. For dual-hydraulic, dual-drive models, both the front and rear wheels can steer, giving the cart a smaller turning radius.
2. Differential Steering Type
This type has a rated load capacity ranging from 1 to 50 tons. Its main advantage is its small turning radius. By controlling the speed difference between the two drive wheels, the cart can make a 360-degree rotation.
It is better suited to loads with a relatively balanced length-to-width ratio rather than long, narrow rectangular loads. This type of cart is an excellent choice for warehouses, workshops, or aisles where space is limited.
3. Omnidirectional Transfer Cart Type
This type supports rated load capacities from 1 to 150 tons. It can move forward and backward, turn left and right, move sideways through crab steering, and rotate 360 degrees in place.
It is ideal for space-constrained environments because its lateral movement and 360-degree rotation capabilities provide greater flexibility and help save operating space.
The cart is equipped with a steering-drive wheel system, which means each wheel can both drive and steer. This provides smoother movement and strong driving performance.
However, this type of equipment is significantly more expensive, and the steering-drive wheel system requires regular maintenance and servicing.
Remote Controlled Trackless Transfer Cart Features
Remote Operation: The operator can control the trolley wirelessly, including start, stop, forward, reverse, and turning functions. This eliminates the need for manual pushing or pulling, enhancing both operational flexibility and safety.
Trackless Mobility: Thanks to its trackless design, the heavy-duty transfer cart can freely navigate workshops and factory floors, reaching any designated location. Operators can move the cart independently without being restricted by fixed rails, offering maximum convenience for material handling.
Electric Drive System: Powered by a reliable motor, the cart ensures smooth and quiet operation while producing zero emissions, making it an environmentally friendly solution for modern factories.
High Load Capacity: The load-bearing capability can be tailored to specific requirements, ranging from 1 ton up to 200 tons. This versatility allows the majority of industrial operations to deploy the equipment effectively.
Customizable Design: The cart can be fully customized to meet unique operational needs. Options include different table configurations (flat, V-shaped, or U-shaped), mobility choices (trackless or fixed track), and additional features such as lifting mechanisms, rotation, or other specialized functions.
Precautions for Use:
Operation Training: Operators need to undergo professional training to familiarize themselves with the use of remote controls and the safe operating procedures of the equipment.
Regular Inspection: Regularly check the battery, motor, track (if any), and safety devices of the equipment to ensure that the equipment is in good condition.
Operation Monitoring: During transportation, operators need to pay close attention to the operating status of the equipment and the material situation, promptly detecting and handling any abnormalities.
Summary:
Motorized Transfer Cart is an efficient, flexible, and safe handling equipment that can solve many problems in material transportation for corporate factories and warehouses. Its remote control operation method, strong carrying capacity, and customized design make it an indispensable and important tool in modern industrial transportation. If you need to know more or customize this type of equipment, we will provide you with professional solutions and technical support!
