How Much Does a 5-Ton Rail Transfer Cart Cost?
Many business owners start by asking: “How much does a rail transfer cart cost?”
In reality, this question is similar to asking “How much does a car cost?” The final price depends on many different factors, including configuration, specifications, and application requirements. Therefore, there is no single fixed price for all rail transfer carts.
In this article, we will explain the typical pricing range for rail transfer carts, the differences between various models, and the key factors that affect the final cost.
1. Load Capacity (Tonnage)
Load capacity is the most important factor affecting the price of a rail transfer cart.
Since the primary function of the equipment is to transport heavy materials, a higher load capacity requires stronger structural frames, more powerful motors, and heavier-duty wheels, which naturally increases the manufacturing cost.
5-Ton Class
This is the entry-level model, suitable for transporting lighter materials in workshops.
Typical price range: $4,000 – $6,000 USD.

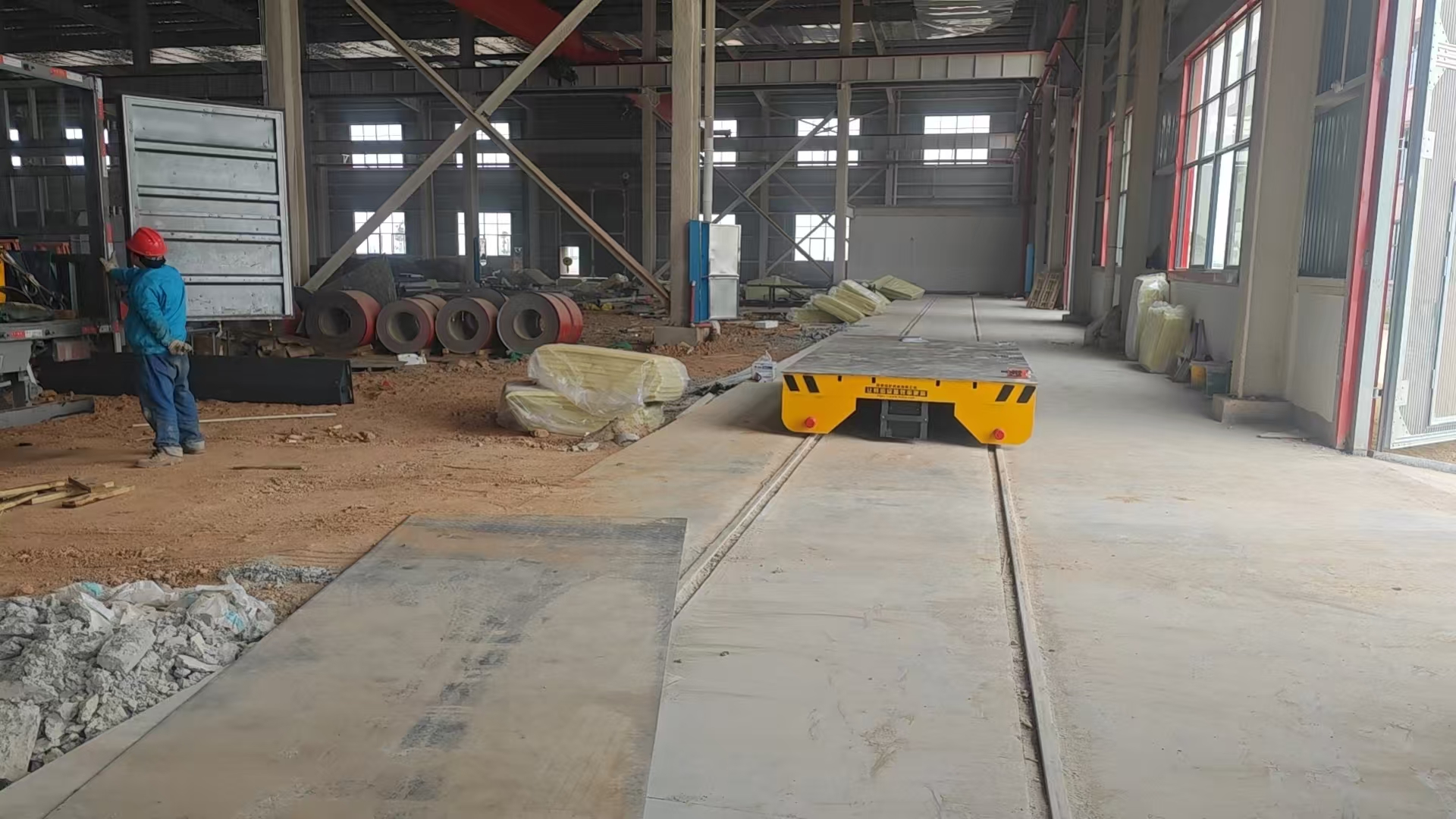

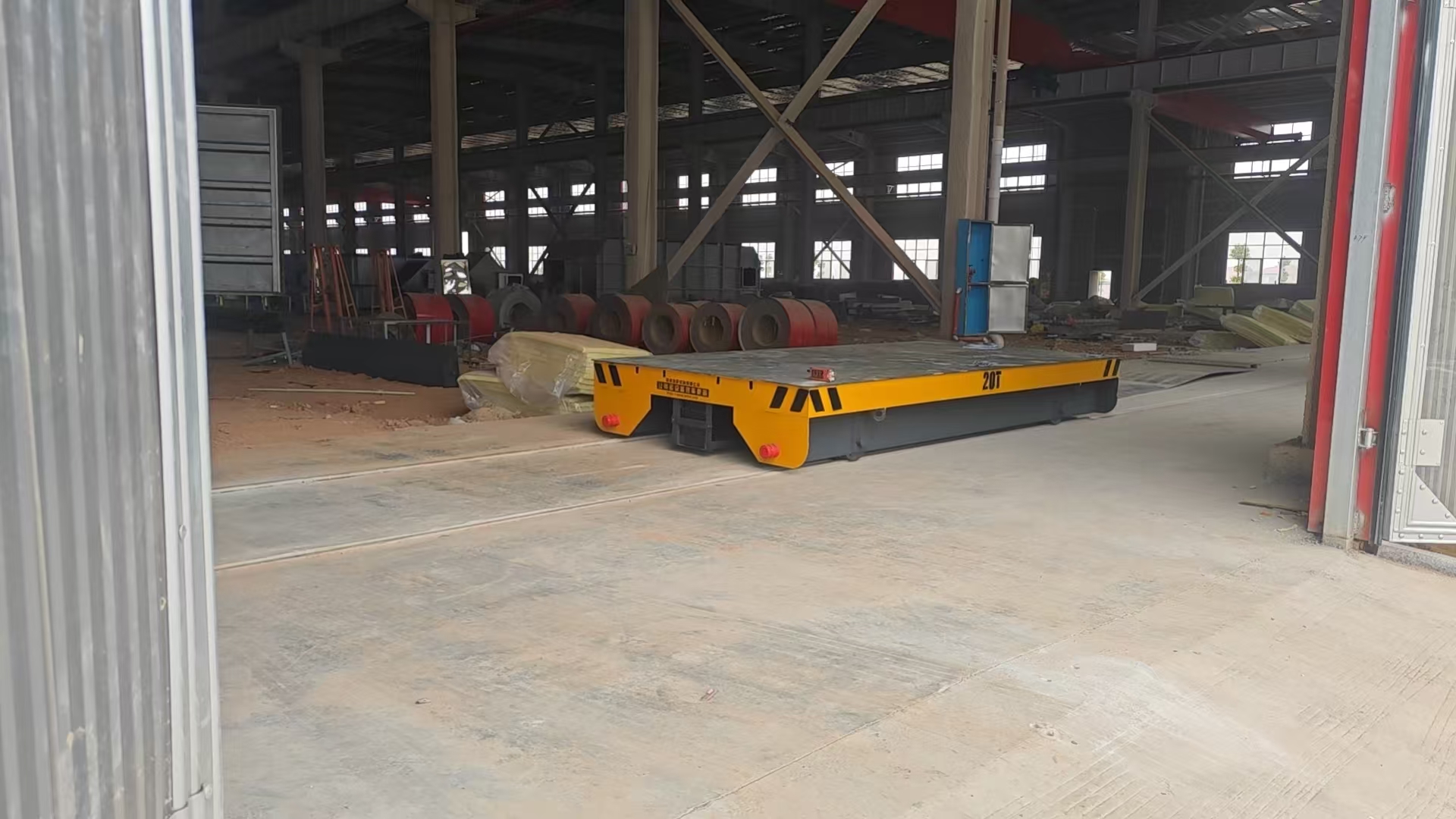

10–20 Ton Class
This range represents the mainstream industrial standard.
Prices are typically 20%–30% higher than 5-ton models because the frame structure, drive motor, and wheel assemblies must be reinforced.
The price is generally between USD 5,000 and USD 9,000. However, the exact cost depends on the specifications, power supply method, dimensions, control system, and other optional features.
30 Tons and Above
These are considered heavy-duty customized solutions.
The price for a 30-ton transfer cart typically ranges from USD 9,000 to USD 12,000. The final price depends heavily on factors such as load capacity, dimensions, power supply method, steering system, and other customized requirements.
The price can double or even increase further due to the use of thicker steel plates, more powerful drive systems, and additional safety features.
Simply put, the higher the load capacity, the stronger the materials and components required, which results in higher production costs.
2. Power Supply Method
The power supply method of a rail transfer cart has a significant impact on both the initial purchase price and long-term operating costs.
Common power supply options include:
Battery Power
Battery-powered carts do not require overhead power lines or powered rails, providing greater operational flexibility. However, the battery pack and charging system increase the initial equipment cost.
This solution is suitable for short-distance transportation and flexible routes.
Low-Voltage Rail Power
In this system, the rails themselves carry electrical power, eliminating the need for onboard batteries. However, the rail system requires electrical insulation and installation work, which adds infrastructure costs.
This option is ideal for long-distance transportation and continuous operation environments.
Cable Reel / Drag Chain Power
This solution has a simpler mechanical structure and relatively low equipment cost. However, the cables and reels are wear components, so long-term maintenance and replacement costs should be considered.
Because each power supply solution has different installation requirements and maintenance costs, the total price difference can range from several thousand to tens of thousands of dollars.
3. Dimensions and Customization
Standard rail transfer carts usually have fixed dimensions and relatively transparent pricing.
However, if your materials are extra-long, extra-wide, or unusually shaped, a customized cart design may be required.
Extended or Widened Frames
Larger carts require more structural steel and reinforcement, which increases manufacturing costs. In addition, transportation costs also increase.
For example, equipment wider than 2.3 meters is often classified as oversized cargo for ocean shipping, which significantly raises logistics costs.
Special Functions
Additional features may include:
Hydraulic lifting platforms
Tilting platforms
Anti-collision bumpers
Wireless remote control systems
Automatic navigation or PLC control
Each additional feature requires extra engineering design, components, and installation work, which increases the final price.
Just like buying a smartphone, the price difference between a basic model and a fully equipped version comes from these extra functions.
4. Rails and Supporting Equipment
When calculating the cost of a rail transfer cart, many companies focus only on the vehicle itself, but the rail system and auxiliary equipment are also important parts of the total investment.
Rail Installation
The rail system is a one-time infrastructure investment. Rail specifications such as P24, P38, or P43 must be selected according to the load capacity and operating conditions of the transfer cart.
Safety Devices
Essential safety components include:
Warning lights
Audible alarms
Emergency stop buttons
Anti-collision bumpers
Limit switches
The more comprehensive the safety system, the higher the equipment cost.
Control Systems
Rail transfer carts can be equipped with different control methods, such as:
Manual operation
Wireless remote control
Fully automated PLC control systems
More advanced control systems provide greater automation and efficiency, but they also increase the overall price.
