What Is a Hydraulic Lifting Trackless Transfer Cart?

Applications, Benefits & Pallet Handling

A hydraulic lifting trackless transfer cart is a logistics transportation product in the DWP series. It can solve both horizontal transportation and vertical lifting requirements. In terms of horizontal movement, its wheeled design allows flexible operation in workshops, warehouses, and various production stations. In terms of vertical movement, it is equipped with a hydraulic lifting platform (scissor lift type or vertical lift type) to adjust the working height, with a lifting stroke ranging from 100 mm to 1500 mm.

Why are more and more customers choosing hydraulic lifting trackless transfer carts for pallet handling?

The DWP series hydraulic lifting trackless transfer cart is one of the best solutions for handling pallets, molds, steel coils, and other materials. Its customizable design and vertical lifting function can help factories solve up to 80% of their material handling requirements.

For example, in factory workshops, warehouses, or ports, it is often necessary to move heavy goods weighing several tons or even hundreds of tons, such as large molds and heavy equipment components. These materials are not only large in size but also extremely heavy. In the past, handling methods mainly relied on a combination of rail transfer carts, cranes, and hoists, which was complicated and inefficient. These machines required constant coordination, consuming significant manpower and time. However, this trackless lifting transfer cart has a built-in hydraulic lifting function, so there is no need to install rails or use cranes to move materials.

In the past, people either relied on cranes for lifting or installed rails and used flatbed rail carts for transportation. These methods were not only inconvenient but also costly and space-consuming. Today, let’s talk about a “flexible powerhouse” in industrial material handling—the hydraulic lifting trackless transfer cart. I will explain clearly what it is and what it can do in plain language.

Simply put, a hydraulic lifting trackless transfer cart is a heavy-duty handling vehicle with a built-in hydraulic lifting system, electric drive, and no need for rail installation. It is also often called a trackless electric transfer cart or a hydraulic lifting handling cart. It combines three functions: “trackless travel,” “hydraulic lifting,” and “heavy-load handling,” and is specifically designed to solve short-distance transportation and loading/unloading docking challenges for heavy materials. It can be customized with a load capacity from 1 ton to 150 tons, and it is suitable for factories, warehouses, and ports.

This equipment is powered by batteries. Customers can choose either lead-acid batteries or lithium batteries, eliminating the need for power cables. The battery capacity configured for the hydraulic lifting platform can support continuous operation for 4 to 6 hours, meeting the working needs of 90% of customers. It operates quietly, with only warning alarms during operation. The battery system is also more environmentally friendly and complies with national requirements.

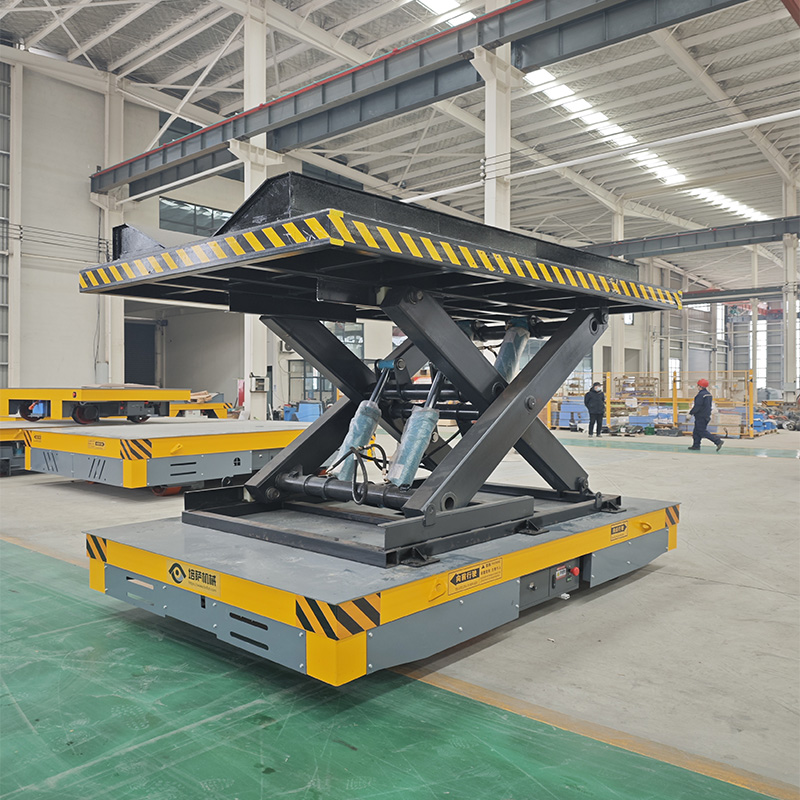

Let’s talk about the hydraulic lifting function—this is its “unique skill.” A hydraulic system is installed under the platform, most commonly using a scissor lift structure. Similar to scissors opening and closing, it can smoothly raise and lower the platform, with a lifting range of 100 to 1500 mm. There is also a vertical lift platform, whose lifting height is generally around 300 mm. It can be controlled with one button to lift and lower, making operation very simple.

What are the actual uses of a hydraulic lifting trackless transfer cart?

This lifting function is extremely useful. For example, when moving large molds, the cart can be driven under the mold fixture, and the platform can be raised to lift the mold. It can then be transported to the destination and lowered down. No crane assistance is required, and one operator can complete the loading and unloading process using remote control.

It is also convenient for docking with racks and loading platforms of different heights. If the height does not match, simply adjust the lifting height, and the goods can be transferred safely and smoothly. When passing through low-height passages, the platform can be lowered to the minimum height to ensure smooth travel without delaying work.

Is the lifting platform easy to use? Is the operation complicated?

Operation is simple and does not require complex training. Most models are equipped with wireless remote control, allowing the operator to stand aside and control the cart to move forward, backward, turn, and lift. There is no need to walk alongside the cart, making the process safer and less labor-intensive.

The cart is also equipped with anti-collision sensors and emergency stop buttons. It can stop automatically when obstacles are detected, helping prevent collision accidents and ensuring safety even during heavy-load operations.

Many people may ask whether such a heavy-duty cart is difficult to maintain and repair. In fact, it is quite the opposite. It has a simple structure, and the main body is welded from thick steel plates, making it resistant to impacts and harsh workshop environments. Metal chips and oil stains in the workshop do not affect its operation. The hydraulic system and motor use mature and reliable components with low failure rates. Daily maintenance mainly involves basic cleaning and checking the battery. Maintenance costs are very low, and the equipment can easily operate reliably for many years.

This cart now has a wide range of applications. It is used in machinery manufacturing plants to transport large molds and steel coils, in warehouses for cross-area transportation of heavy goods, in ports for short-distance movement of container components, in wind power workshops for transporting wind turbine parts, and even in automotive factories and aerospace workshops. It has become a commonly used solution for industrial heavy-load handling.

In summary, a hydraulic lifting trackless transfer cart is a heavy-duty handling solution that requires no rail installation, can travel and lift, offers strong load capacity, is easy to operate, and is durable. It solves the problems of traditional rail carts being inflexible and cranes being costly. It helps reduce costs, improve efficiency, and provides a safe and environmentally friendly transportation method. If your factory also faces challenges in heavy material handling and loading/unloading docking, this equipment is worth considering, as it may help you save significant labor and costs.

Why spend extra money to purchase a hydraulic lifting trackless transfer cart?
