For procurement professionals, selecting the right transfer cart is essential. High-quality equipment plays a vital role in material handling and can significantly improve production efficiency.

Transfer carts are indispensable equipment for safely transporting ultra-heavy materials, finished products, and semi-finished goods, whether in factory production, warehouse operations, or inter-workshop transportation.

As a professional purchaser or production manager, you should not focus only on price and load capacity. Important factors such as factory layout, transportation routes, floor conditions, battery operating time, and power supply methods are equally critical, as they directly affect whether the equipment can operate efficiently and reliably.

Today, Nancy from PEISA Machinery will provide a detailed transfer cart buying guide based on practical factory application experience.

Step 1: Select the Transfer Cart Based on Operating Conditions and Routes

First, determine the transportation route and floor conditions according to your actual working requirements.

If your application requires a fixed point-to-point route, such as transportation along a production line or assembly line, with short or medium-distance movement, a rail-guided electric transfer cart is recommended. These carts rely on rail systems to provide excellent stability and high load capacity. The rails can be installed either flush with the floor or mounted on the surface, providing an economical and reliable transportation solution.

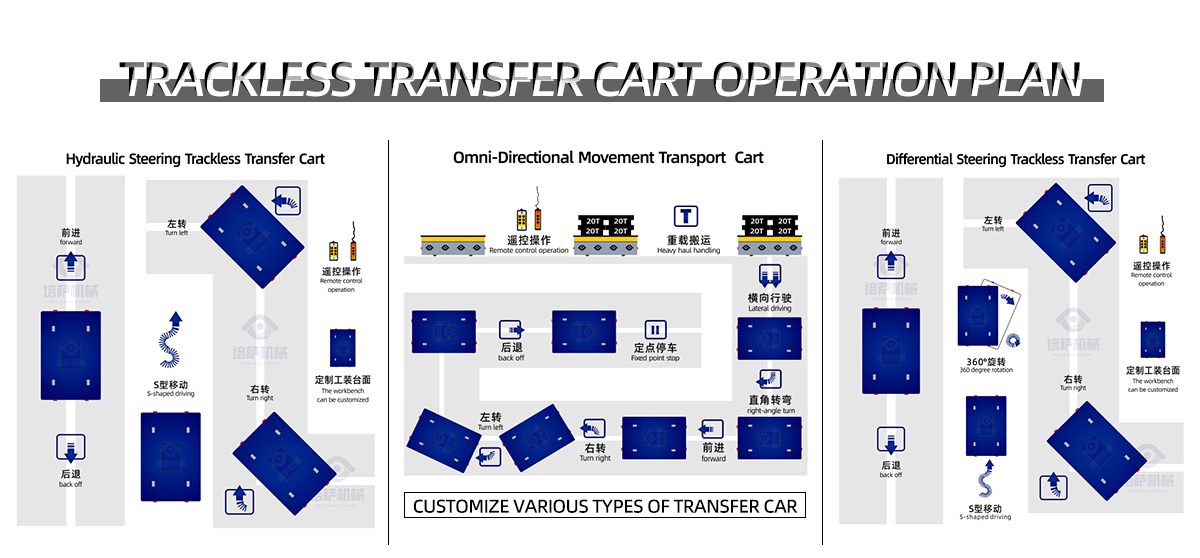

If your transportation routes are flexible and frequently change, requiring movement between multiple workstations or navigation around curves, a trackless transfer cart is the better choice. Equipped with rubber or polyurethane wheels, these carts can freely adjust their routes without being restricted by fixed rails, providing excellent flexibility.

Step 2: Determine Load Capacity Accurately and Reserve a Safety Margin

Load capacity is one of the most important specifications of an electric transfer cart. Avoid selecting a cart with a rated capacity that exactly matches your cargo weight.

Long-term operation at full load or overloading will accelerate the wear of key components such as motors, wheels, and batteries, significantly reducing the service life of the equipment.

The standard practice in the industry is to select a cart with a load capacity at least 20% higher than the maximum daily load. For example, if your heaviest daily load is 8 tons, a 10-ton transfer cart would be the appropriate choice. This provides stable operation and allows for unexpected heavier loads or uneven weight distribution.

In addition, the platform dimensions must match the cargo size. Large plates or long profiles may require customized extended platforms to prevent excessive overhang and ensure safe transportation.

Step 3: Select the Power Supply Method According to the Working Environment

The power supply method should be selected based on the operating environment. Three common power options are widely used in factories, each suitable for different applications.

Battery-powered transfer carts provide the greatest flexibility, requiring no external wiring and typically offering 4–6 hours of continuous operation per charge. They are suitable for most small and medium-sized factories and workshops without fixed power sources. Lead-acid batteries provide excellent cost performance, while lithium batteries are lighter, have a longer service life, and offer more stable operating performance.

Cable reel power supply is suitable for rail-guided transfer carts operating on fixed, short-distance routes. It provides continuous power without frequent charging and is ideal for assembly lines requiring 24-hour continuous operation.

Low-voltage rail power supply provides high safety, quiet operation, and continuous working capability without range limitations. It is especially suitable for large heavy-industry enterprises and applications involving frequent heavy-load transportation.

Step 4: Consider Equipment Configuration and Safety Design

Detailed configuration and safety features are essential for long-term reliable operation.

Wheel selection should match the floor conditions. Cast steel wheels are commonly used for rail-guided transfer carts due to their excellent wear resistance and load-bearing capability. Trackless transfer carts generally use polyurethane-coated wheels, which provide quiet, non-slip operation while protecting workshop floors. Rubber wheels are also available for workshops with humid or dusty environments.

Safety features are equally important. Standard configurations should include sound and light alarms, power-off braking, emergency stop buttons, collision avoidance sensors, and overload protection.

For areas with high personnel traffic, transfer carts equipped with intelligent obstacle avoidance systems should be prioritized to improve operational safety.

For hydraulic lifting applications, different configurations can be selected according to actual requirements. Single-cylinder systems are suitable for shorter platforms and open working areas, while dual-cylinder systems are recommended for longer platforms or narrow workshops where higher stability is required.

Step 5: Evaluate Manufacturer Capability and After-Sales Support

Finally, consider the manufacturer's qualifications and after-sales service capabilities.

Transfer carts are specialized industrial equipment, and purchasing low-quality products simply because of a lower price may result in higher long-term costs. Priority should be given to manufacturers that use high-quality materials, have mature manufacturing processes, and provide customized solutions for different dimensions and load capacities.

At the same time, customers should confirm after-sales policies, including warranty periods, technical support, repair services, and spare parts supply.

Professional manufacturers provide comprehensive services, including customized design, production tracking, installation guidance, and after-sales support, helping reduce long-term operating and maintenance costs.

Conclusion

When selecting an electric transfer cart, factories do not need to simply pursue the highest specifications or the lowest price. The right choice should be based on actual transportation routes, load requirements, and working conditions.

By balancing safety performance, equipment reliability, and after-sales support, companies can obtain durable and efficient material handling solutions that perfectly match their production needs and significantly improve workshop logistics efficiency.
