The Omnidirectional Transfer Cart is one of the models in the DWP series. Compared with a standard trackless transfer cart, it offers greater flexibility, including forward and backward movement, left and right steering, sideways travel, diagonal movement, and 360-degree rotation with zero turning radius.

The cart adopts a four-wheel steering system, and each wheel is equipped with an independent driving motor and steering motor. This design allows all wheels to work together, giving the cart excellent maneuverability. Even in workshops with limited space, it can move and turn smoothly, making it suitable for transporting materials in complex working environments.

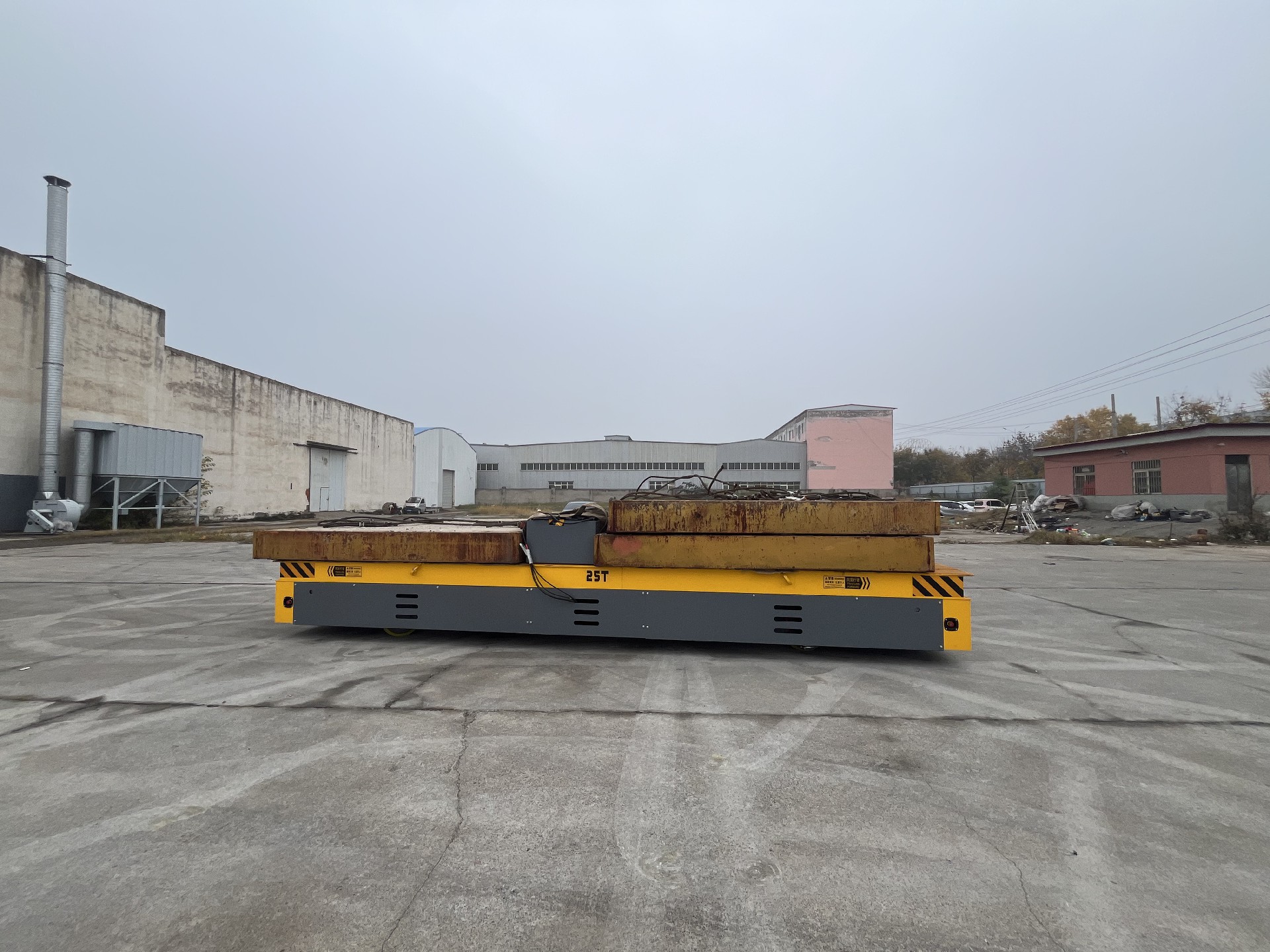

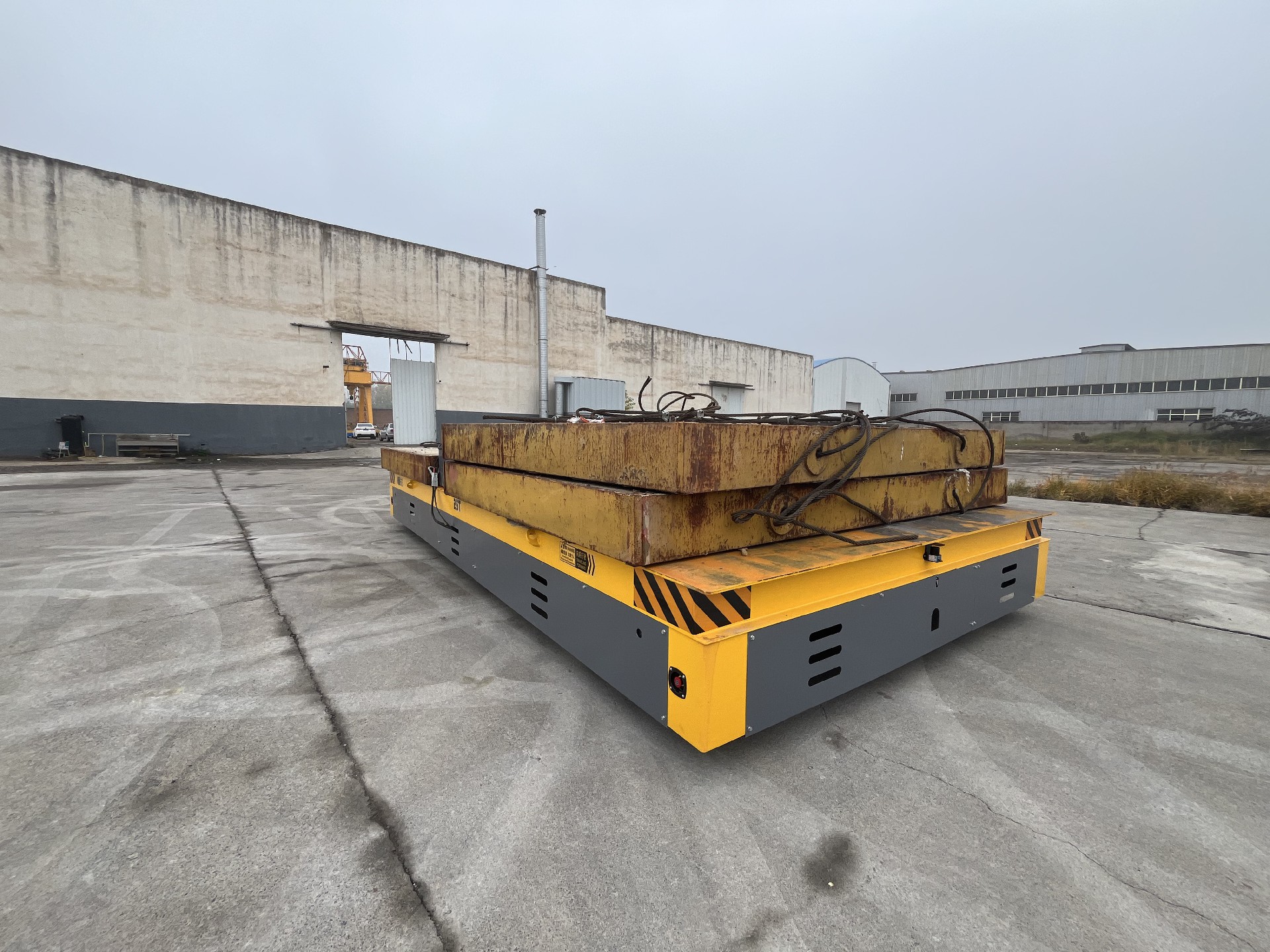

Case：

Specific parameters of Omnidirectional Transfer Cart

Load: 25 tons

Workbench size: 5000*2800*700mm

Workbench type: platform

Power supply: battery power supply

Motor: DC motor

Control method: remote control

Color: yellow + gray

Wheel diameter: 500mm

Special requirements: It can move horizontally.

An omnidirectional transfer cart can be customized in many aspects according to your working conditions. Common customizable options include:

Load capacity (1–200 tons)

Platform size (length, width, height)

Power supply (battery powered, low-voltage rail powered, cable reel, busbar, etc.)

Control method (wireless remote control, wired pendant, PLC control, semi/fully automatic)

Travel speed and acceleration settings

Wheel type ( PU wheels, rubber wheels, steel wheels)

Movement functions (forward/backward, sideways, diagonal movement, 360° rotation in place)

Battery type and capacity (lead-acid or lithium, working time requirement)

Safety devices (anti-collision sensors, infrared sensors, safety edge, emergency stop, warning lights, buzzer)

Braking system (electromagnetic brake, automatic braking)

Surface treatment (painting color, anti-slip plate, galvanized option)

Special functions (lifting system, hydraulic clamping, positioning system, turntable integration)
