Transfer Cart Transport Heavy steel plates and beams

Device configuration:

The DPX-RAIL TRANSFECART ---heavy-duty industrial rail transfer cart, introduced by a mechanical equipment factory in Shandong, is a tailor-made solution designed to meet the demands of heavy material transportation within the factory. We recommended this heavy industrial transfer cart, with a load capacity of up to 25 tons, to the customer. By optimizing the structural design of the trolley and selecting high-quality motor manufacturers, the rail cart ensures stable operation and a high load capacity.

In the customer's factory workshop, traditional transportation tools were previously used, relying on forklifts to transport spare parts. Forklifts not only require manual operation but also necessitate an operator’s license, posing certain safety hazards. To enhance efficiency and safety, the customer introduced the DPX series rail transfer carts to transform the workshop’s transportation method.

Specifications of the Heavy Industrial Transfer Cart

1. Model: DPX-RAIL TRANSFECART

2. Name: 25T Load Transfer Cart for Transporting Heavy Steel Plates and Beams

3. Size: 3000 × 2500 × 500 mm

4. Load Capacity: 1–25 tons

5. Safety Factor: 1.2 (Maximum Load: 28 tons)

6. Wheel: Cast steel wheel, diameter 350 mm

7. Motor Power: 2.5 kW

8. Running Speed: 25 m/min

9. Endurance Time: 4 hours

10. Steel Plate Thickness: 8 mm

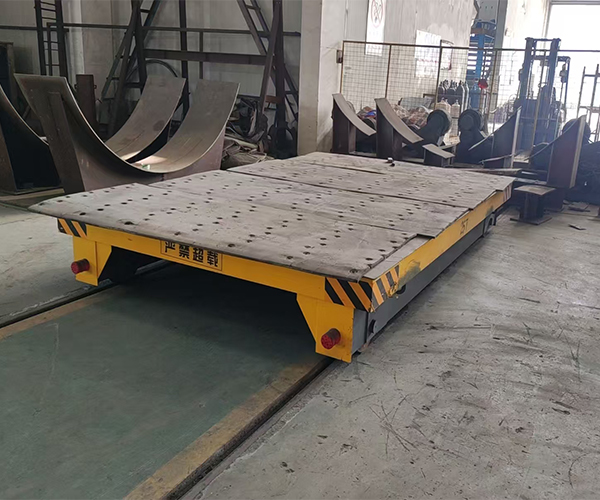

The equipment operates safely and stably on tracks, smoothly transporting heavy materials such as steel plates and beams to designated locations. The 350 mm diameter cast steel wheels ensure sufficient load capacity and safety during transportation. Additionally, the cart body is made of 8 mm thick steel plates, eliminating concerns about durability and load-bearing capacity. Whether transporting heavy steel structures, equipment, or semi-finished products, the battery-powered transfer cart can easily handle the task.

Compared to other heavy-duty transport equipment, the DPX-RAIL TRANSFECART heavy-duty industrial rail transfer cart provides significant economic benefits to the customer's factory at a lower cost. With a motor power of just 2.5 kW and a battery life of up to 4 hours, it consumes minimal energy while ensuring stable operation. By introducing this equipment, the factory has not only improved production efficiency but also reduced operating costs, thus gaining a competitive advantage in the market.
