Device configuration:

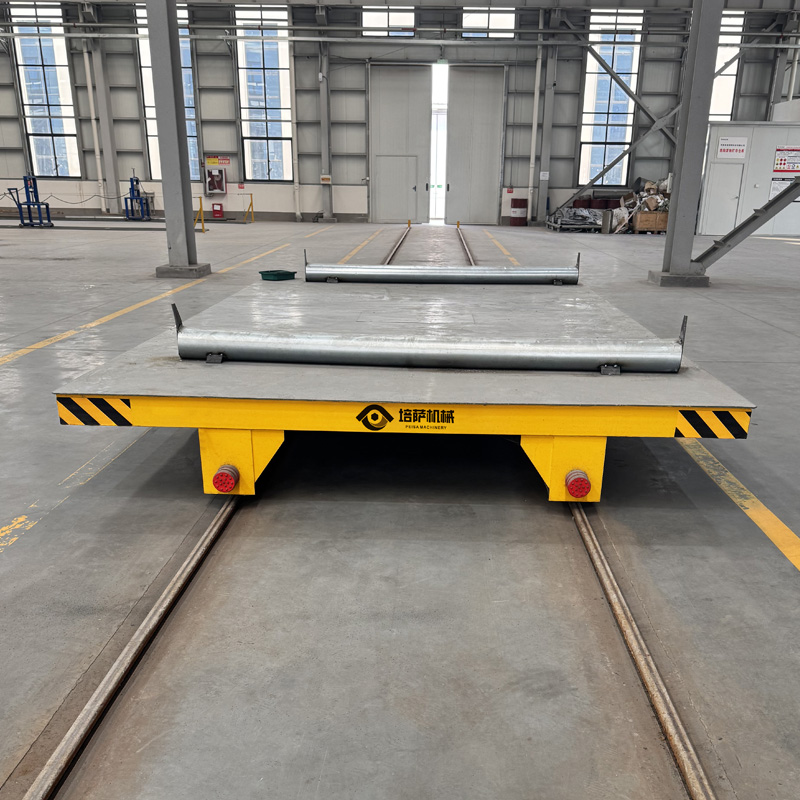

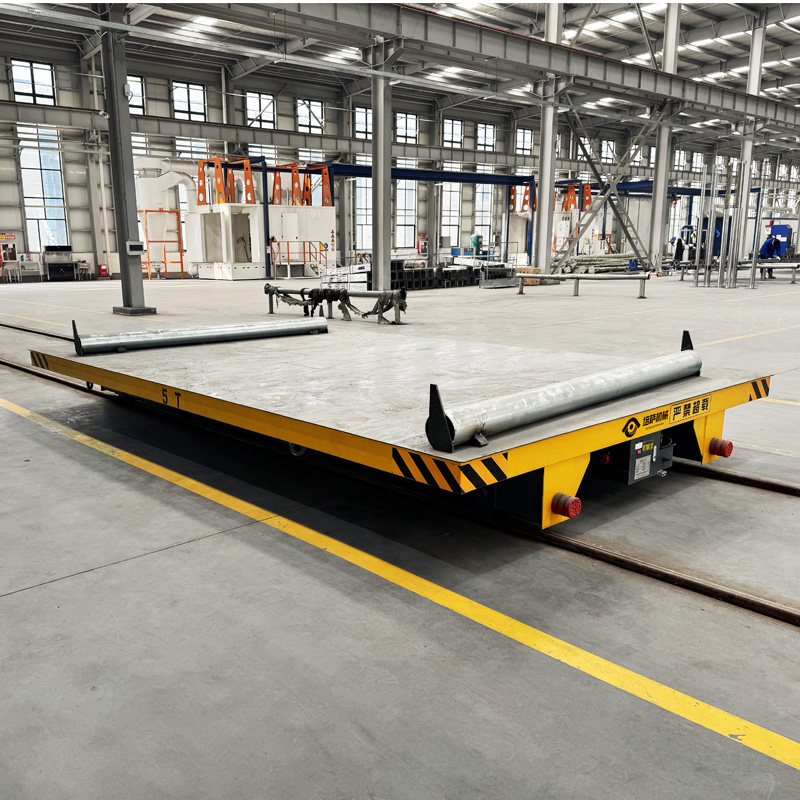

This low-voltage rail-powered Rail Transfer Cart was customized for a client’s cleanroom and is used to transport 5-ton lighting equipment.
The workshop was newly constructed, and the client chose a low-voltage rail power supply solution.
Safe Voltage: Power is supplied directly to the trolley through the rails. Collectors mounted underneath the trolley draw power, while internal step-down and voltage stabilization devices provide stable output. This ensures low-voltage operation throughout the entire process and eliminates the risk of electric shock.
Long-Term Operation: The rails provide a continuous power supply, eliminating the need to charge or replace batteries. The Rail Transfer Cart can therefore support high-frequency continuous transportation.
To use the trolley, workers simply place the lighting equipment onto the platform, and the Rail Transfer Cart smoothly moves along the rails into the paint booth. The entire transportation process is clean, quiet, and spark-free, making it ideal for cleanroom applications.
With this Rail Transfer Cart, the client no longer needs to manually push or pull the equipment, nor worry about shaking or collisions during transportation. This safe and labor-saving solution makes the painting process more efficient and reliable.
| Model | DPX |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 |
| Rail Distance(mm) | 1430 | 2000 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Battery Capacity(Ah) | 180 | 200 | 200 | 260-300 | 300-600 |
| Break method | electromagnetic brake |
| Ground clearance | 50-200 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protectio | Infrared contact stop, fan-scanning radar |
Mesa requirement
| Laying rubber, V-shaped frame, table lifting, rollover, work frame |
Why Do Customers Choose Rail Transfer Carts?
Fixed Transport Routes
When materials need to be transported repeatedly between designated points, such as from Point A to Point B, a rail transfer cart ensures stable and precise movement along the predefined route. There is no need to worry about the cart deviating from its path.
Cost-Effective Solution
For applications with fixed routes and regular transportation needs, rail transfer carts offer a reliable and economical solution. Compared with more complex trackless or AGV systems, rail-based carts generally have a simpler structure and lower overall equipment cost.
