Transfer Trolley With Remote Control
Transfer Trolley With Remote Control
Get 2025 Latest Price List Online Crushing Equipment

Transfer Trolley With Remote Control

load:20T

Table size: 4000*2000*700

Power supply mode:Battery Powered

Technical Parameter

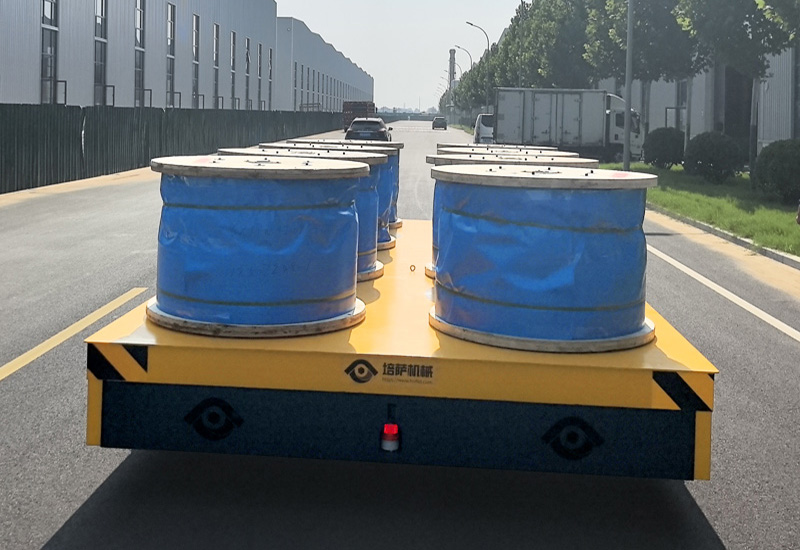

20t Transfer Trolley With Remote Control

This is a transfer trolley equipped with a wireless remote control. It is a heavy-duty material handling equipment from the DWP series designed by PEISA Machinery Co., Ltd. The wireless remote control allows workers to control functions such as forward movement, backward movement, turning, and stopping within a 50-meter range. Remote operation improves safety during the transportation of heavy materials, allowing workers to observe the surrounding environment of the equipment from a distance and from multiple angles, so that they can effectively respond to unexpected situations and ensure better safety and efficiency.

In addition to the wireless remote control, this DWP unit is also equipped with a wired remote control. The wired remote control is used as a backup. When the wireless remote control runs out of power or has a malfunction, the wired remote control can be used instead, reducing equipment downtime.

Update 7-30/2026

Advantages of the 20t Transfer Trolley:

  1. The trolley body is welded from structural steel plates, and the thick steel material provides a solid foundation for load-bearing capacity.

  2. The electric flat cart is equipped with a high-torque drive motor, capable of transporting materials ranging from 5 to 200 tons.

  3. Wireless remote control operation supports flexible transport and remote start-stop of transport tasks.

  4. Safety features: LED sound and light alarm, emergency stop button, anti-collision posts, photoelectric sensors, and speed limiter.

  5. Simple structural design for easy maintenance and servicing.

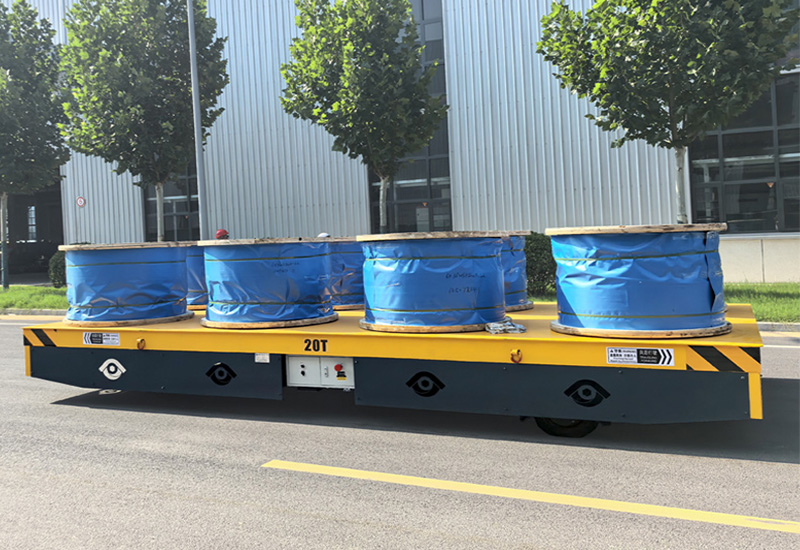

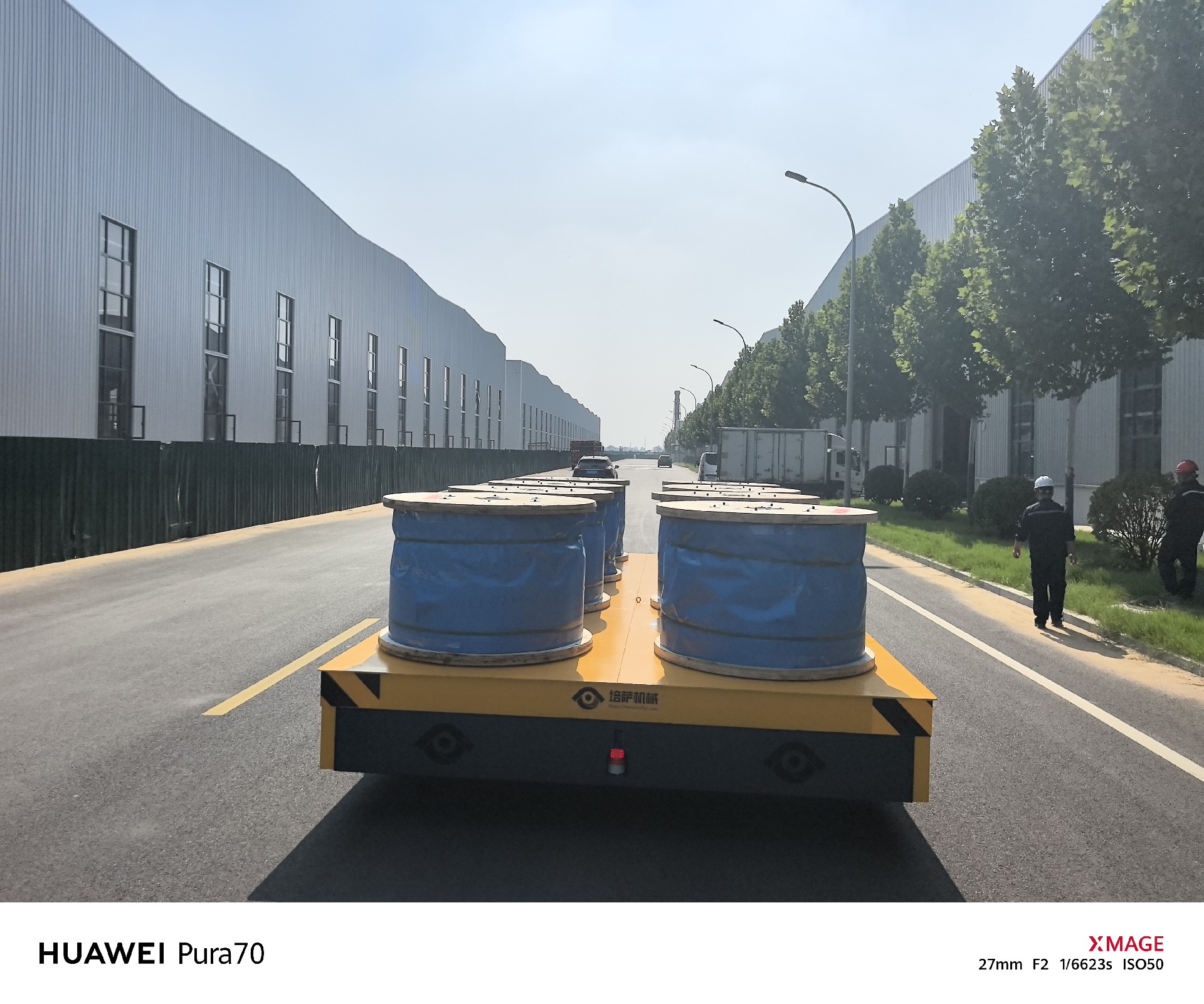

20 ton transfer trolley case

ModelDWP
Rated load (T)51020305060150
Impacted rated load(T)7.51522.530456075
Structure of frameSteel plates welded,beam structure
Table Size (mm)Customized
Height (mm)450530600600600700700
Motor Power (Kw)3459121540
Wheel Diameter(mm)Φ300Φ350Φ400Φ400Φ600Φ700Φ900
Running speed(m/min)0-250-250-250-250-250-250-25
Break methodelectromagnetic brake
Ground clearance50-100
Balance adjustmentmechanical conditioning
Operating ModeWireless remote control/car handle
Battery TypeLead-acid battery, maintenance-free battery, lithium battery
Safety protectionInfrared contact stop, fan-scanning radar
Surface requirementLaying rubber, V-shaped frame, table lifting, rollover, work frame

application of transfer trolley

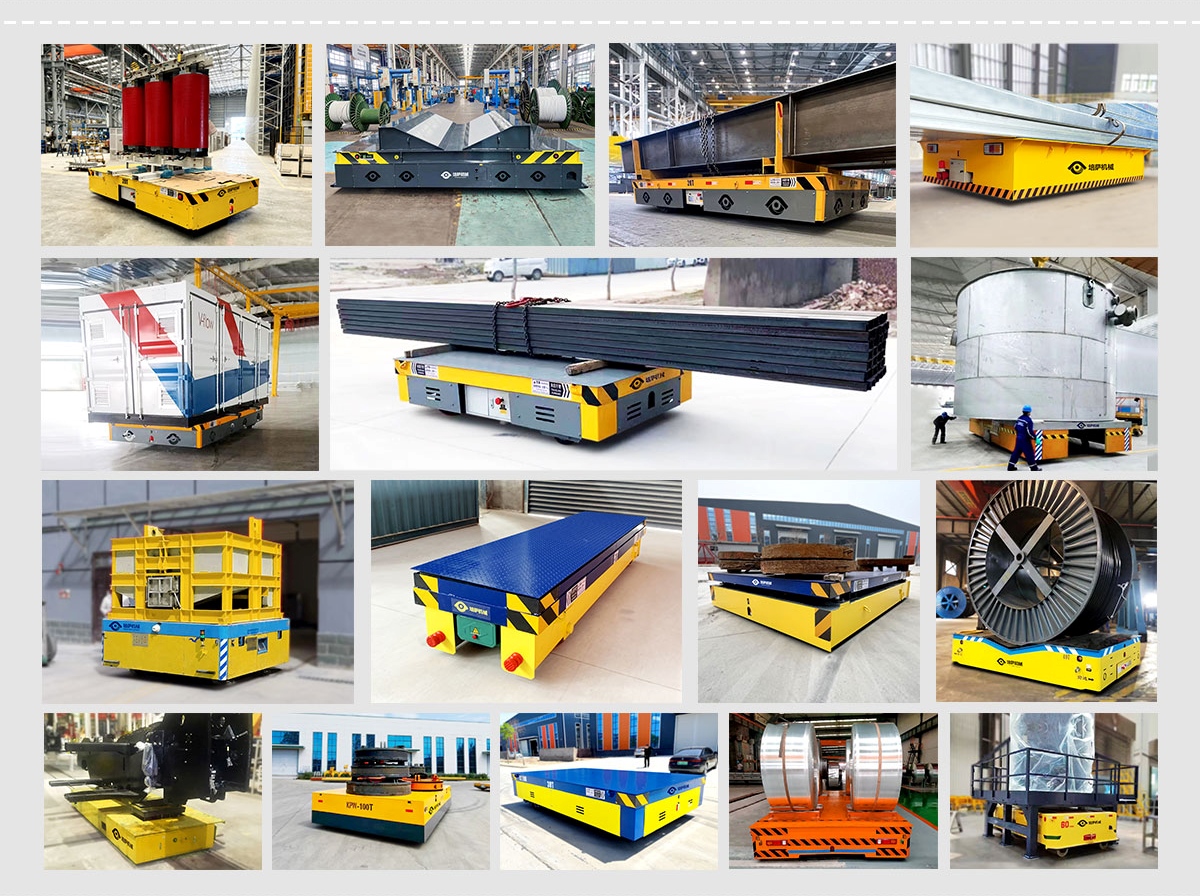

transfer trolley case

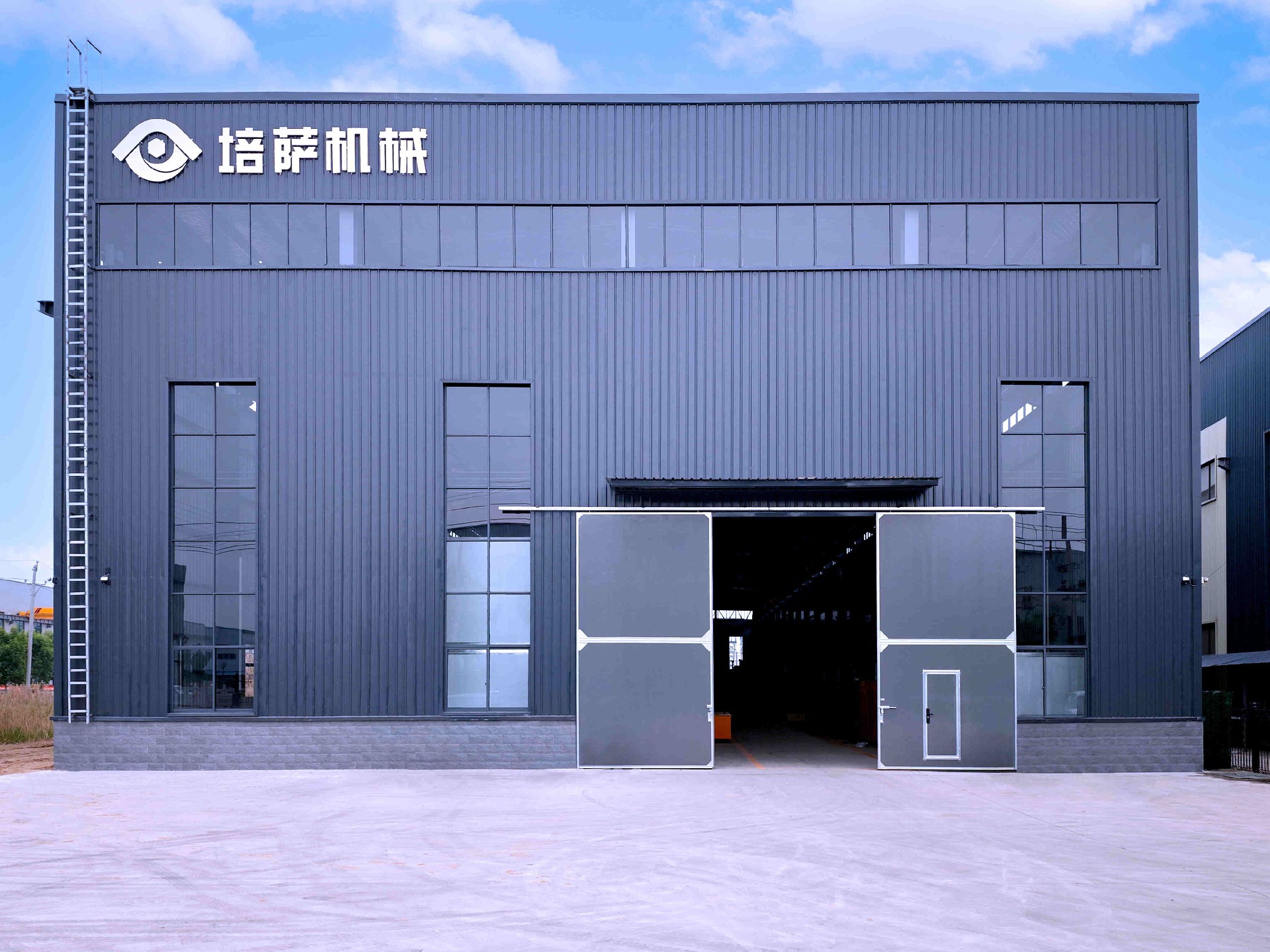

factory transfer trolley


Customers Cases
