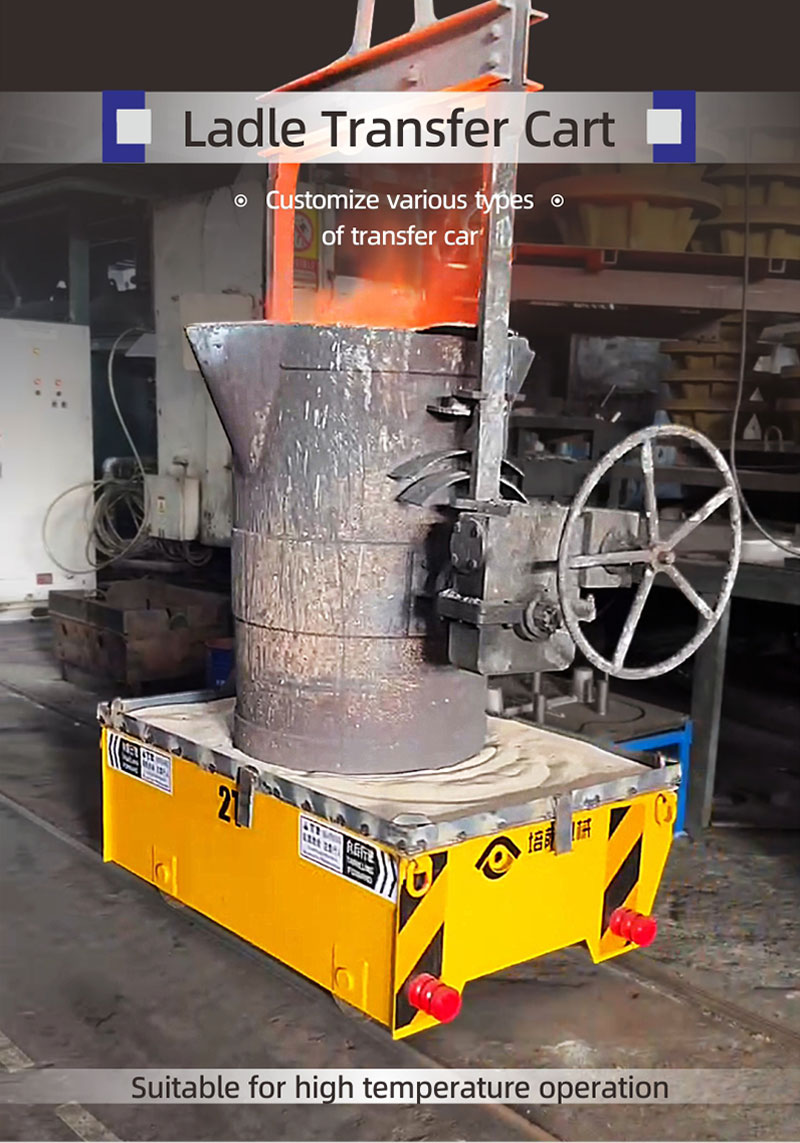

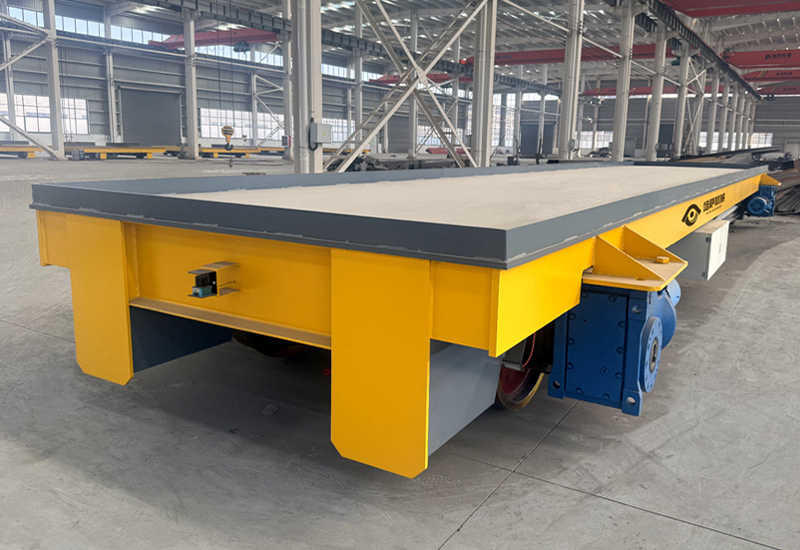

Steel Ladle Transfer Cart

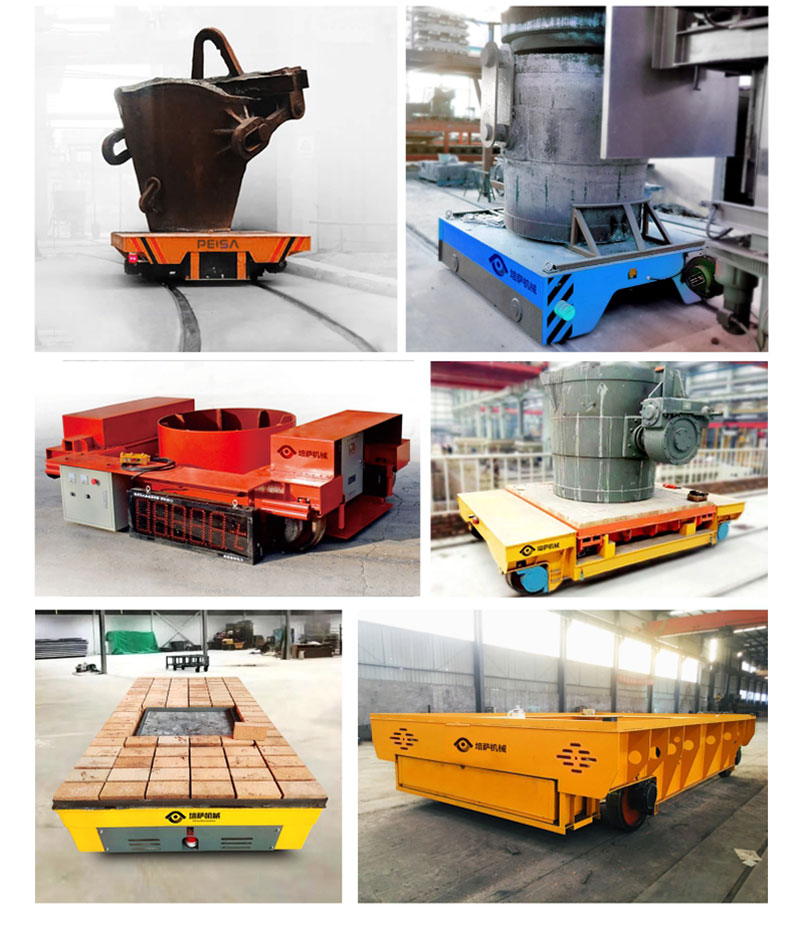

This Steel Ladle Transfer Cart is a heavy-duty transfer device specifically designed for steel and metallurgical plants. It is primarily used for transporting high-temperature, heavy materials such as steel ladles, slag, and billets within workshops. The vehicle body can be specially treated for high-temperature and explosion protection, and it offers both low-voltage rail power and battery power options to suit various production scenarios. With a load capacity ranging from 1 to 150 tons, it is a crucial piece of equipment connecting steelmaking, rolling, and warehousing processes.

1. DPX Series Battery-Powered Transfer Cart

The DPX series battery-powered transfer cart is equipped with a built-in battery system, providing flexible operation without external power cables or fixed power supply lines.

However, due to the extremely high-temperature environment in steel plants, the battery and electrical components require effective thermal insulation protection. Proper heat shielding measures help prevent high temperatures from affecting battery performance, electrical safety, and service life.

2. DDG Series Low-Voltage Rail-Powered Transfer Cart

The DDG series low-voltage rail-powered transfer cart receives power through a rail system, providing stable and continuous energy supply for high-frequency operations.

When applying this solution, the operating environment must be carefully evaluated, especially regarding conductive materials such as iron filings, steel particles, and metal dust.

To ensure safe and reliable operation:

• The insulation resistance of rail insulation pads and insulated joints should be checked regularly (recommended weekly);

• Solidified molten steel splashes, accumulated water, and conductive dust on the rail surface must be removed promptly;

• Prevent conductive materials from bridging the two rails, which may cause short circuits, electrical arcing, or system failures.

3. DPJ Cable Reel-Powered Transfer Cart

The DPJ series cable-powered transfer cart uses a cable reel system to provide power during operation.

For steel ladle transportation applications, high-temperature-resistant and flame-retardant special cables are required, with an additional fire-resistant protective sheath installed for enhanced protection.

During operation and maintenance:

• The cable should be reeled in a neat and organized manner;

• Avoid excessive pulling tension, twisting, or cable entanglement;

• Regularly inspect the cable outer sheath for wear, cracks, or damage;

• Replace damaged cables promptly to maintain operational safety.

Update:7-28th/2026

FAQ

Q: Can the two power supply methods be switched?

A: Yes. A dual power supply system can be customized. Rail power can be used for fixed workshop routes, and battery power can be switched on for cross-regional transport. One-button switching is very convenient.

Q: Do the high-temperature protection components require frequent replacement?

A: No. The core protective components are highly durable and typically do not require replacement for at least three years under normal use. Only simple daily cleaning is needed.

Q: How long can the battery version run on a single charge?

A: With the standard large-capacity battery, it can operate continuously for up to 8 hours. It also supports fast charging, reaching full charge in 1.5 hours.

Q: Is track installation complicated?

A: Low-voltage rail installation is simple and does not require extensive ground modifications. Installation can typically be completed within 1–2 days in standard factory areas.

Q: Can a dual-system be installed?

A: Absolutely. Considering the special requirements of steel ladle transport, we can provide a dual-system configuration: one as the primary system and the other as a backup. If the main system fails, the secondary system can be activated immediately.
