Technical Parameter

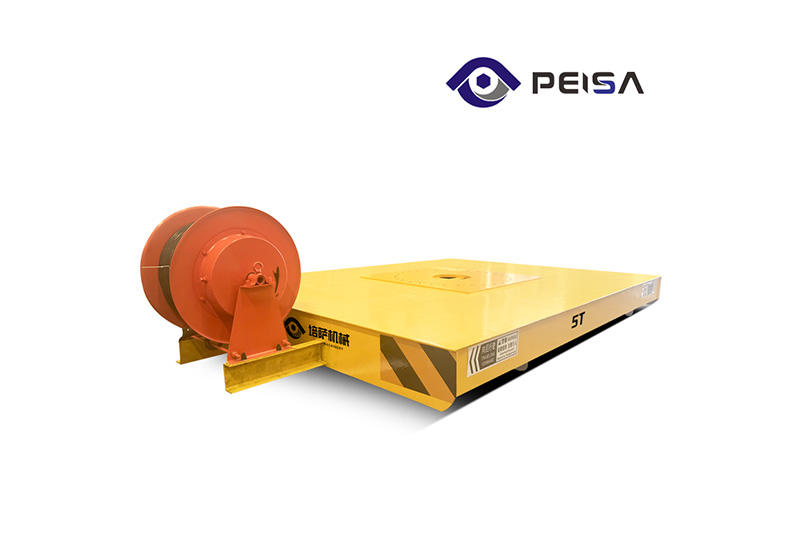

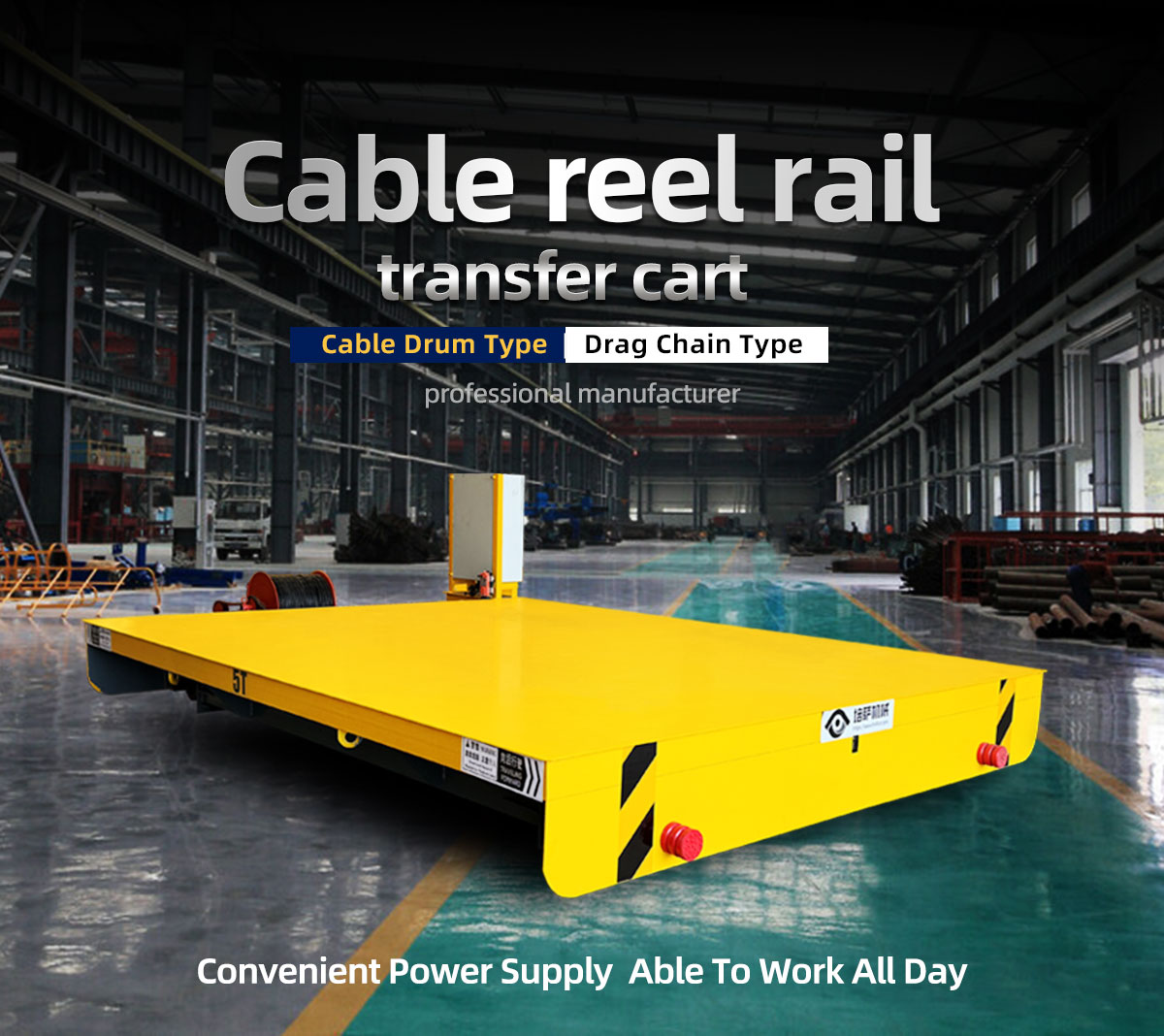

PEISA Machinery's Cable Powered Transfer Cart is part of our rail-mounted electric flat cart series. It is powered by a cable drum with 380V AC (or other standard voltage options). As its operating range is limited by cable length, we recommend this model for environments where the transportation distance is within 200 meters.

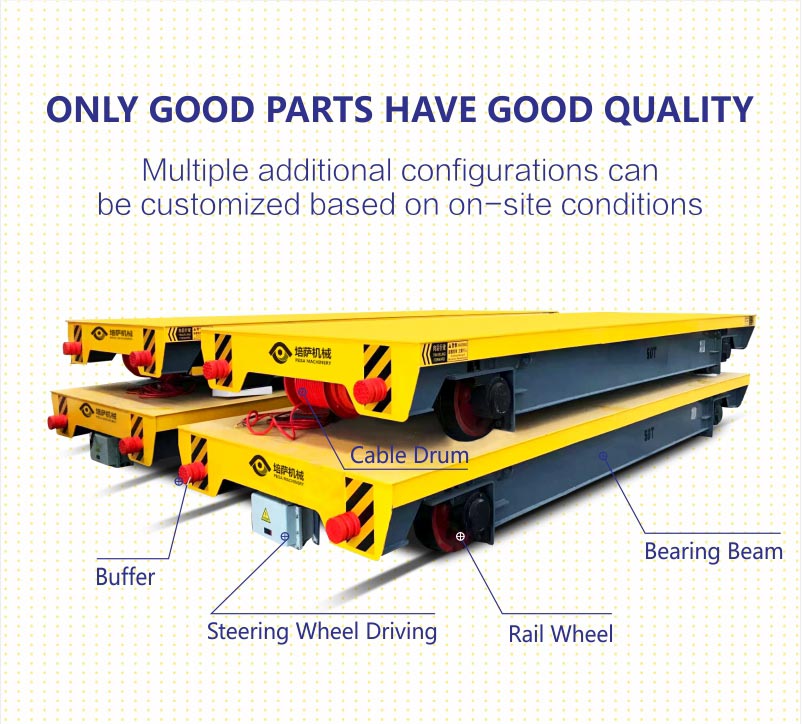

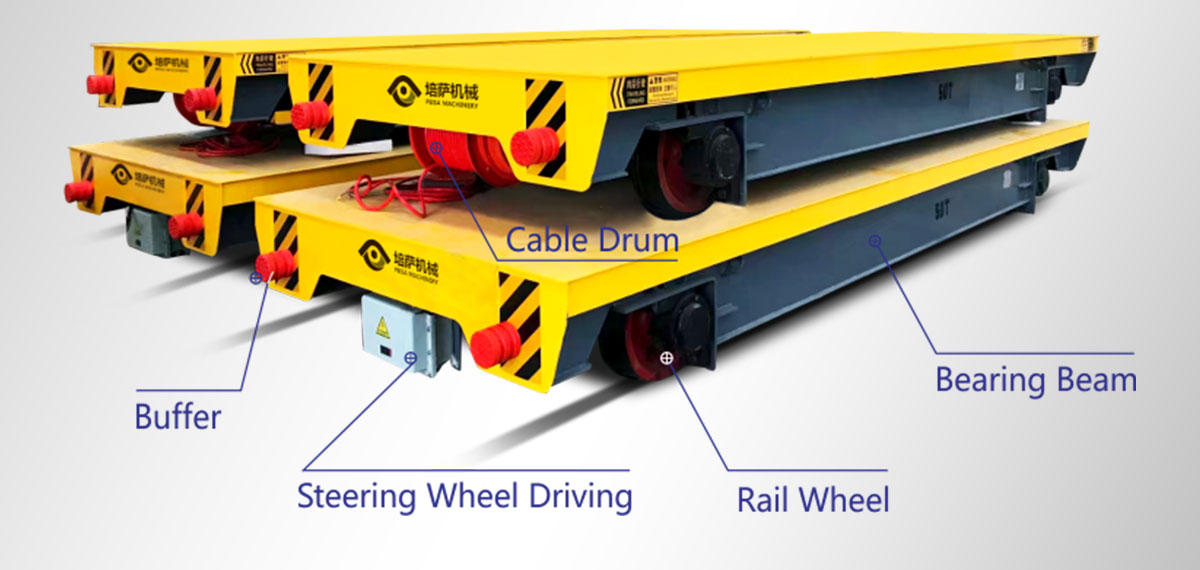

To ensure the cable drum functions reliably during operation, we equip it with an electric reeling mechanism. This electric drum maintains even tension on the cable at all times, significantly reducing the risk of cable damage and ensuring stable power supply.
One end of the cable is connected to the factory’s AC power supply, while the other end is wired to the cart itself. This direct connection supplies power to the drive motor, enabling smooth and consistent operation of the transfer cart.
PEISA Machinery’s Cable Powered Transfer Carts are available in a wide range of specifications and models, differentiated primarily by load capacity. They can handle loads from 1 ton to 1,000 tons. Whether it is a 1-ton light-duty rail cart or a 1,000-ton heavy-duty transfer vehicle, we optimize the motor drive system and other key components to ensure efficient, safe handling of heavy goods.
Customers can freely select any load capacity between 1 and 1,000 tons. Unless otherwise specified by the customer, standard components will be adopted for the drive and control systems to ensure reliability and cost-effectiveness.
| Model | DPJ |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 |
| Rail Distance(mm) | 1430 | 2000 |
| Running speed(m/min) | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
| Battery Capacity(Ah) | 180 | 200 | 200 | 260-300 | 300-600 |

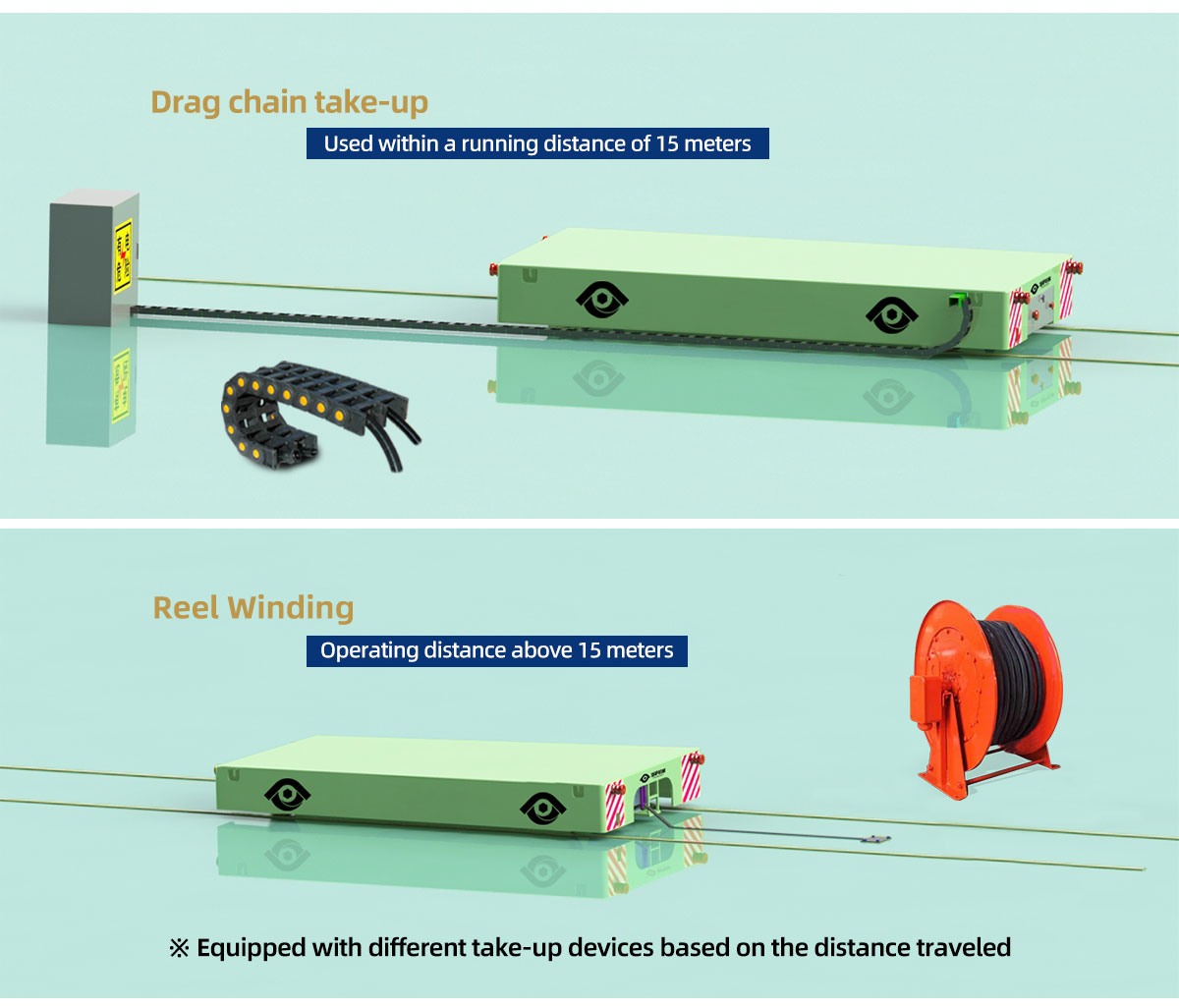

| Take-up mode | Cable drum, tow chain |
| Ground clearance | 500-100 |
| Running time | All Day |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protectio | Infrared contact stop, fan-scanning radar |
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
In terms of structure, the cart is constructed with high-quality Q235B steel, combined with a unique welding structure. This robust design ensures the cart’s service life exceeds 10 years. Key components such as the motor, reducer, and electrical parts come with a minimum service life of 3 years, guaranteeing long-term stable operation.
We provide lifelong technical support services, along with a 12-month quality guarantee period. Our support covers both online consultation and on-site service, ensuring timely and effective solutions whenever our customers encounter issues during use.
