Technical Parameter

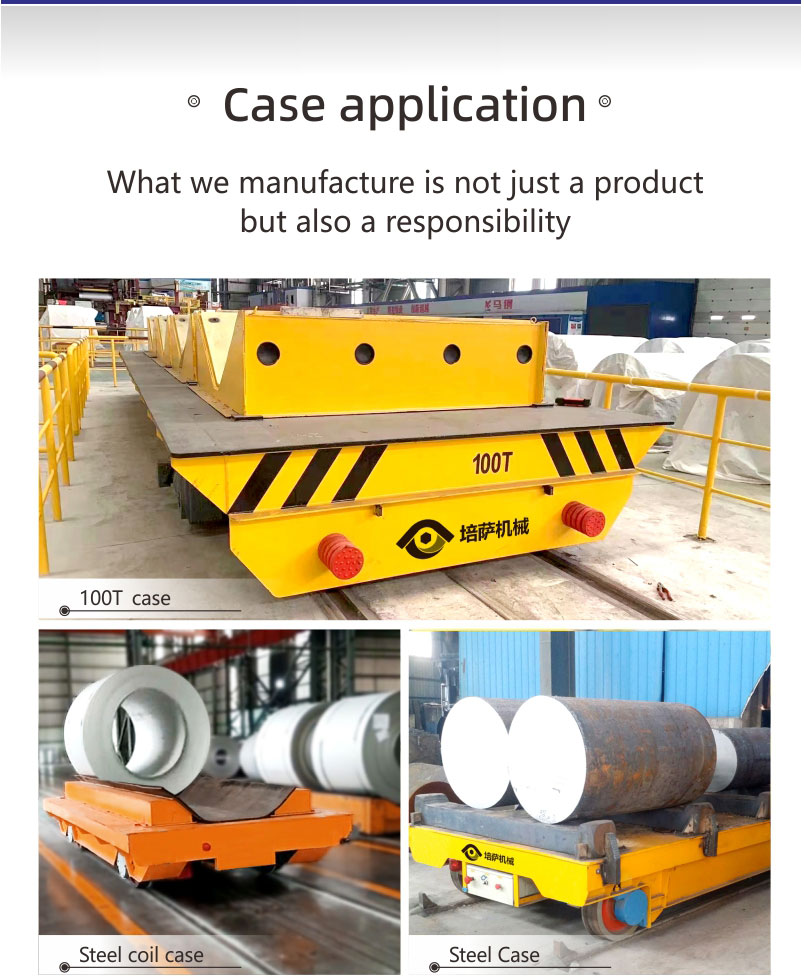

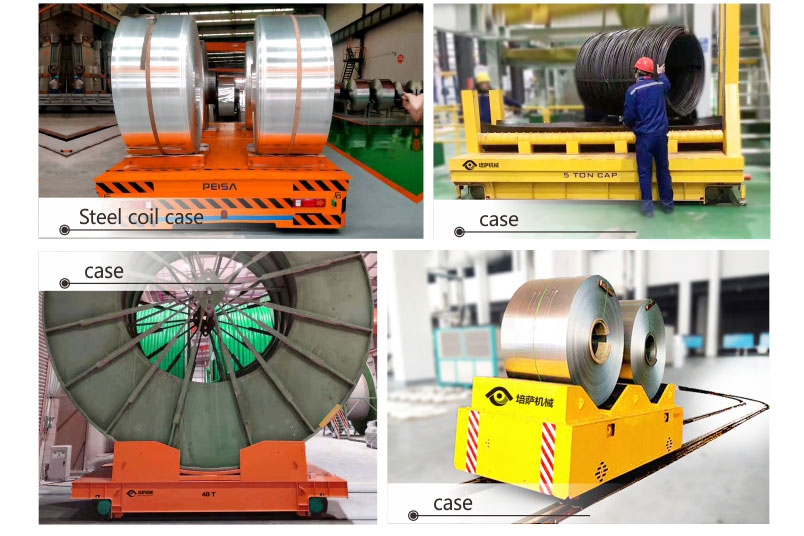

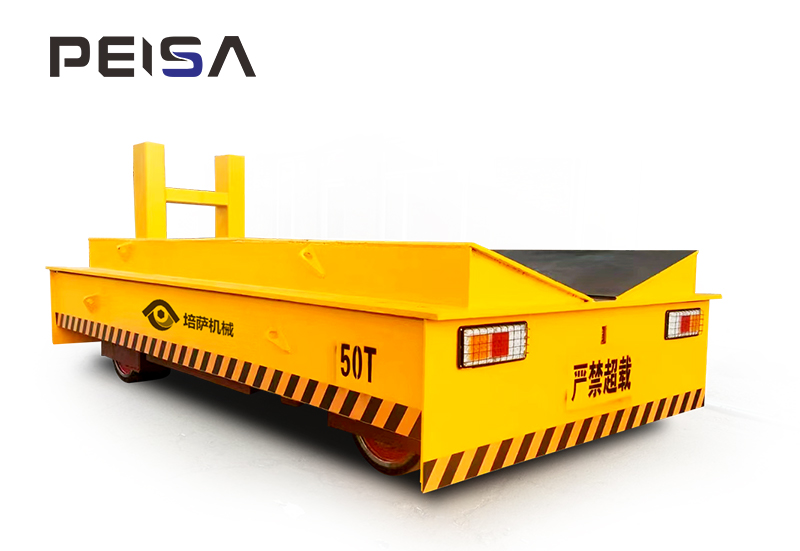

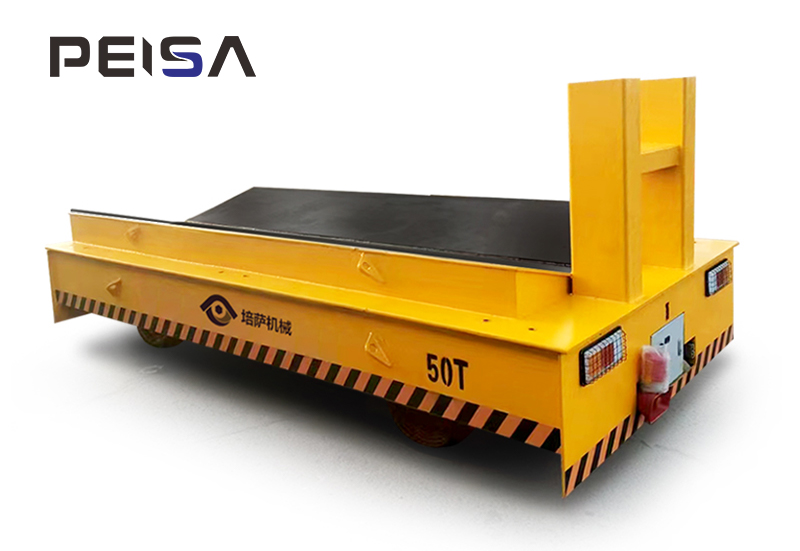

The Steel Coil Transfer Cart is a product in the DWP series, primarily designed for material handling in steel plants and for transporting steel coils. It helps workers move heavy steel coils to designated locations. The cart can travel in straight lines or make S-shaped turns, adapting to changing transportation routes. This flexible movement allows steel plants to solve up to 90% of their internal material handling challenges.
Features and Advantages of the DWP Series:
Strong customization capability: Custom designs can meet the requirements for transporting materials of different sizes and weights.
Flexible movement options: Multiple steering systems can meet most transportation needs in steel plants.
Polyurethane wheels: Suitable for transporting steel coils and supporting stable movement in different workshop areas.
Wireless remote control: Allows operators to observe from multiple angles and control the cart remotely.
High-capacity battery: Provides at least 3 hours of continuous operation under normal working conditions.
| Model | DWP |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Break method | electromagnetic brake |
| Ground clearance | 50-100 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protection | Infrared contact stop, fan-scanning radar |
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |

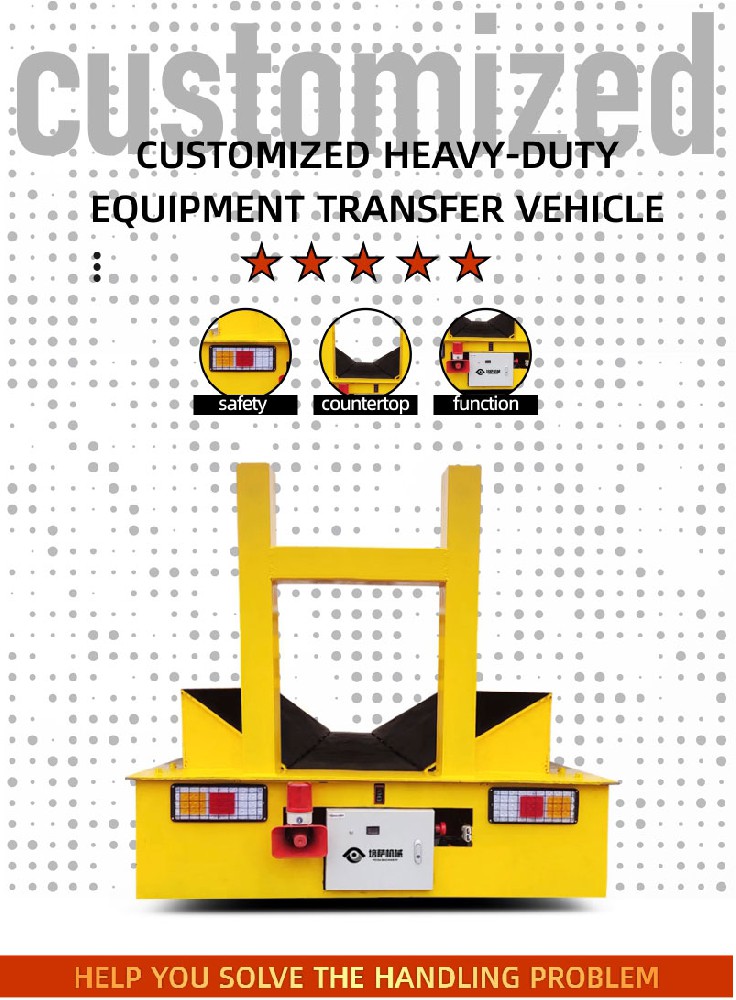

Customizable Attributes of Steel Coil Transfer Cart
Load Capacity: 1–200 tons (customized based on coil weight and size)
Platform Size: Customized according to steel coil diameter, width, and workshop layout
Platform Structure:
Flat deck

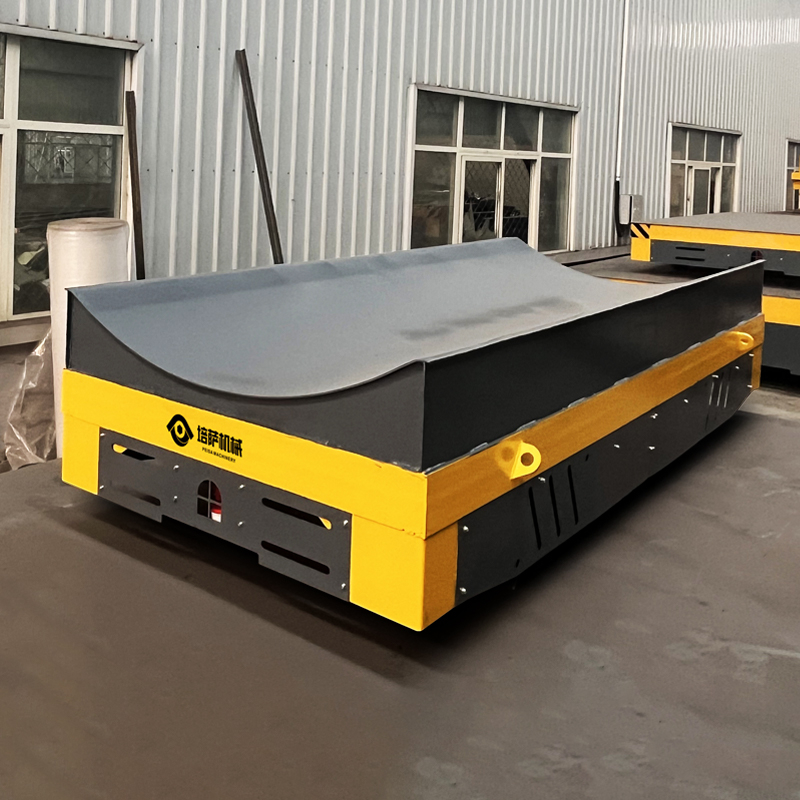

V-shaped coil support frame
U-shaped cradle frame
Anti-slip steel plate surface
Removable side guardrails
Power Supply System:
Battery powered (lead-acid battery / lithium battery)
Low-voltage rail power supply (optional)
Cable reel power supply (optional)
Control System:
Steering System:
Driving System: Electric motor + gearbox drive system (single or multi-motor configuration)
Speed Control: Variable frequency drive (VFD), soft start and soft stop
Wheel Type:
Polyurethane wheels (floor protection, suitable for indoor workshops)
Rubber wheels (shock absorption, strong grip)
Steel wheels (rail-mounted option)

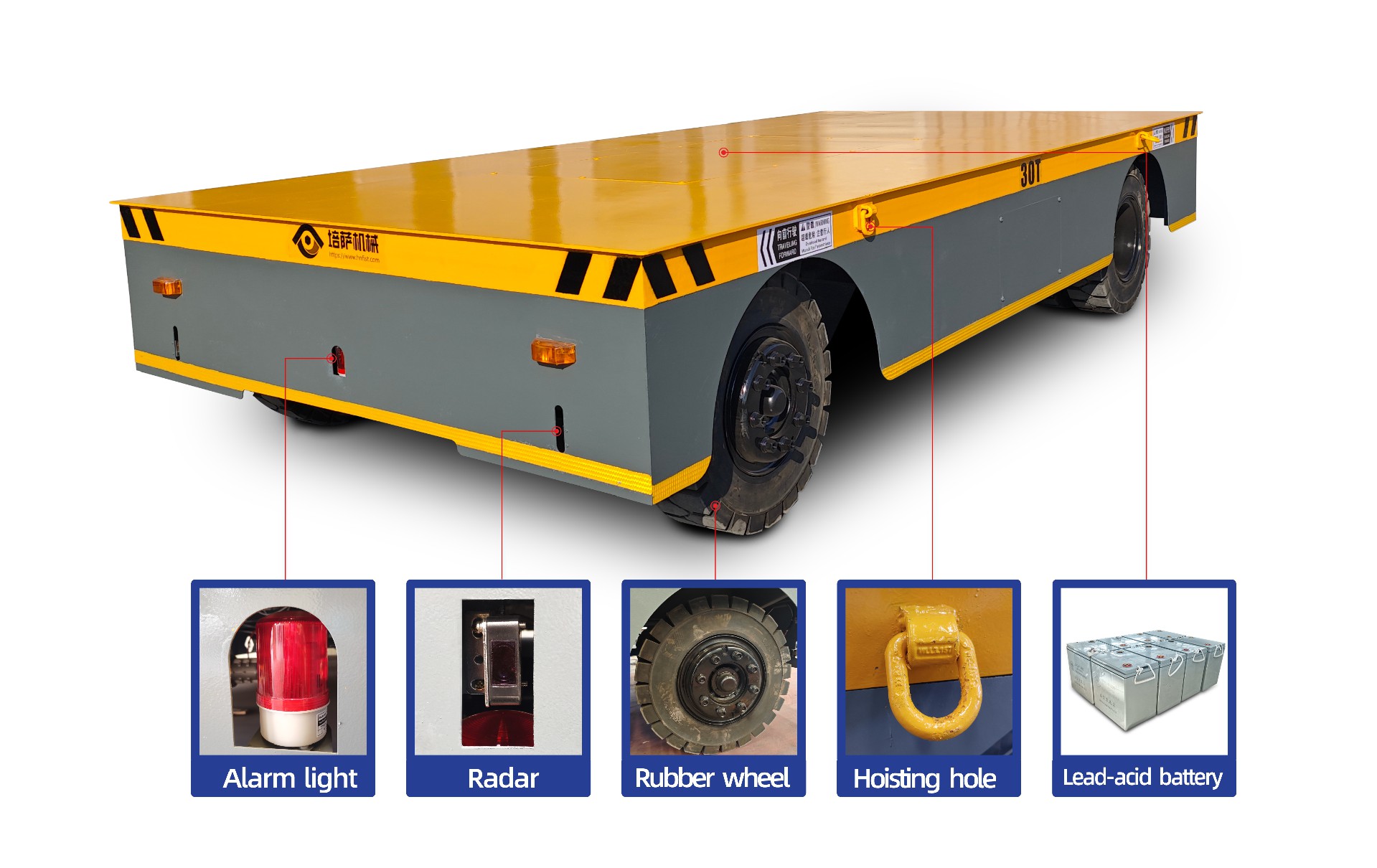

Safety Devices:
Emergency stop button
Sound and light alarm system
Anti-collision sensors (infrared / laser detection)
Overload protection system
Automatic braking system
Coil Protection Features:
Anti-rolling V-frame design
Rubber-coated support surface to prevent surface damage
Coil fixing and clamping devices (optional)
Travel Speed: Customizable (commonly 0–20 m/min)
Working Environment: Steel plants, coil warehouses, processing workshops, smelting industries
Customization Options: Load capacity, platform size, steering mode, power system, wheel type, safety configuration, automation level
