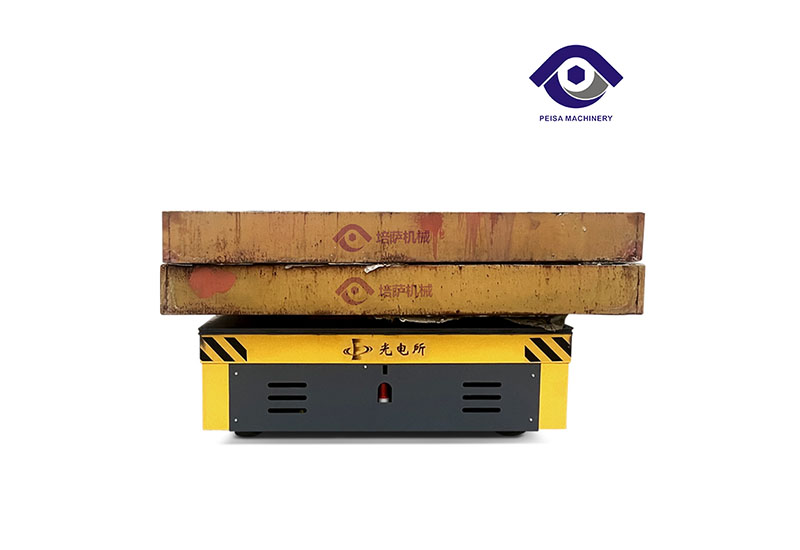

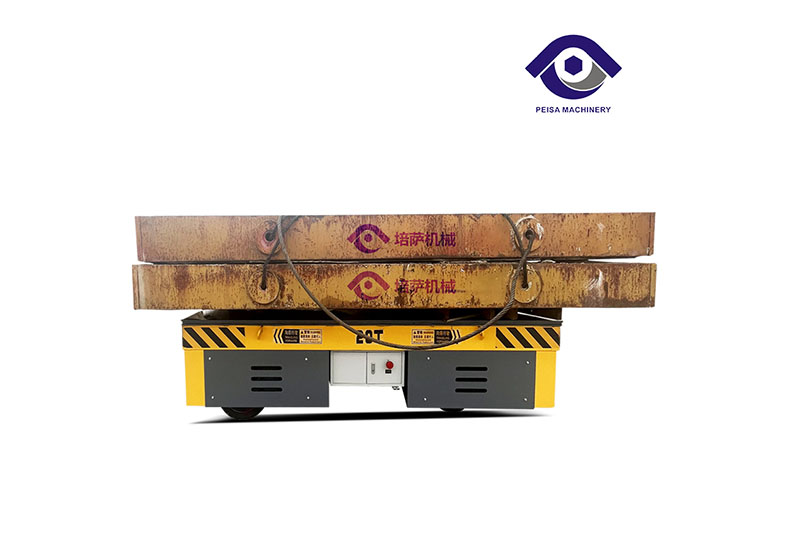

Heavy Load Transfer Cart

Peisa Machinery’s Heavy Load Transfer Cart is a widely used flatbed trolley in factories, docks, ports, and large foundry workshops. It is designed for transporting heavy and bulky materials, including molds, and can be easily used in mold storage areas, maintenance workshops, and press workshops. The Heavy Duty Transfer Cart is powered by batteries, with different battery capacities selected according to the required load to ensure sufficient power and endurance.

Unlike cranes, which are limited to moving materials within a single workshop and cannot travel between different factory areas, our battery-operated transfer trolley offers greater flexibility. Its wheeled structure allows easy direction changes and is not restricted by tracks or cables, enabling free movement throughout the factory. The Heavy Load Transfer Cart can be controlled via a wired handle or wireless remote control and is capable of 360-degree rotation with a small turning radius, making it highly maneuverable.

Manufacturing plants, especially in heavy industries, handle large volumes of materials every day. Using inappropriate handling equipment can result in high labor and operating costs; however, safety remains the most important factor for any enterprise.

The Heavy Load Transfer Cart is specifically designed for heavy industry applications. It can flexibly transport heavy materials while integrating multiple safety protection features, making it an ideal solution for workshop material handling.

Model		DWP
Rated load (T)		5	10	20	30	50	60	150
Impacted rated load(T)		7.5	15	22.5	30	45	60	75
Structure of frame		Steel plates welded,beam structure
Table Size (mm)		Customized
Height (mm)		450	530	600	600	600	700	700
Motor Power (Kw)		3	4	5	9	12	15	40
Wheel Diameter(mm)		Φ300	Φ350	Φ400	Φ400	Φ600	Φ700	Φ900
Running speed(m/min)		0-25	0-25	0-25	0-25	0-25	0-25	0-25
Break method		electromagnetic brake
Ground clearance		50-100
Balance adjustment		mechanical conditioning
Operating Mode		Wireless remote control/car handle
Battery Type		Lead-acid battery, maintenance-free battery, lithium battery
Safety protection		Infrared contact stop, fan-scanning radar
Surface requirement		Laying rubber, V-shaped frame, table lifting, rollover, work frame

Why is the Heavy Load Transfer Cart particularly suitable for heavy industry?

1. High load capacity: It can easily transport loads of up to 200 tons.

2. Remote control operation: Operators can monitor the equipment from all directions within a 50-meter radius and immediately activate emergency braking if needed.

3. High customization: Workshop cargo varies widely, and customized designs allow the cart to better match the shape and characteristics of different materials.

Peisa Machinery Factory Transfer Cart – Battery Operated Material Handling Vehicle

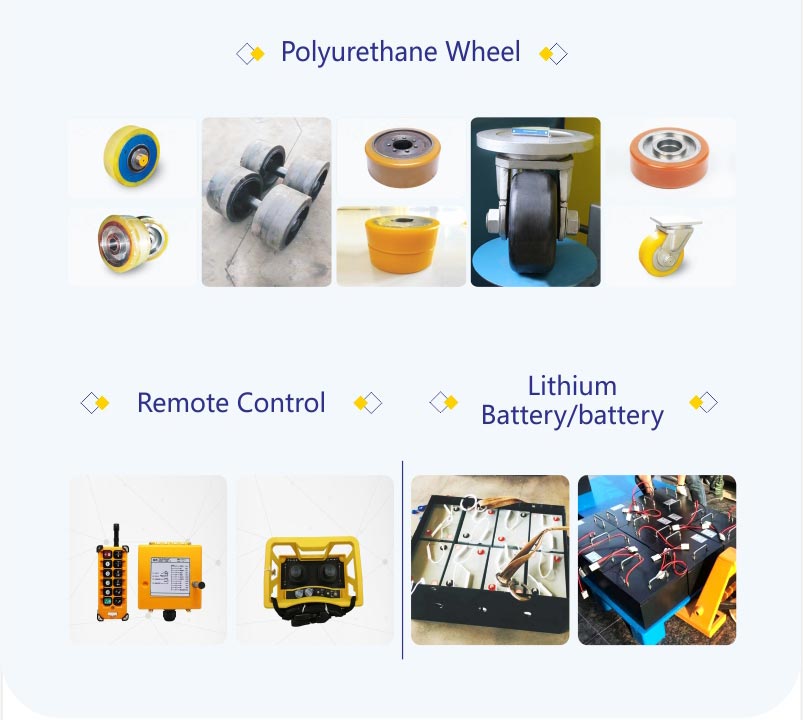

The Heavy Load Transfer Cart from Peisa Machinery is a trackless system supported by four wheels that bear both the weight of the vehicle and the load. Therefore, selecting wheels with strong wear resistance and high load capacity is essential. The wheels we use fully meet these requirements, ensuring stable load-bearing performance and extending service life.

Parameters of the Factory Transfer Cart:

• Product Name: Heavy Load Transfer Cart

• Type: Wheeled Industrial Transfer Cart

• Wheel Diameter: 400 mm

• Frame Thickness: 6 mm

• Frame Material: Carbon Steel

• Battery Capacity: 220 Ah

• Size: Customizable

• Height: Customized according to user requirements
