Technical Parameter

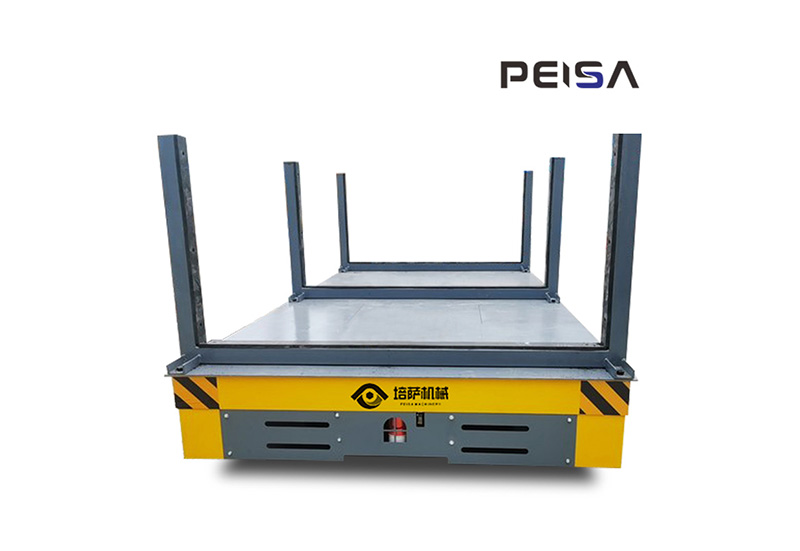

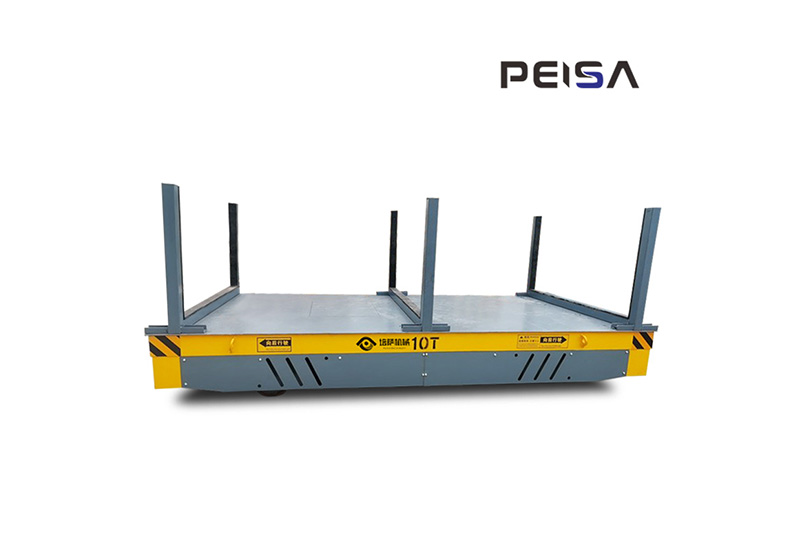

The Transfer Trolley is an intelligent material handling device that serves as a valuable assistant for operators. This 10-ton Transfer Trolley helps customers efficiently transport goods within the workshop.
Its key features include:
1. High load capacity: Whether transporting 1 ton, 10 tons, 20 tons, or 120 tons, customizable features are available.
2. Forward and reverse function: Both hydraulic and differential steering offer this basic function, allowing operators to freely adjust forward and reverse movements based on actual needs.
3. Left and right turning: The operator uses the remote control to freely move the trolley to a designated location.
Note: Pressing the remote control button activates the trolley function; releasing the button causes the transfer trolley to brake immediately.
Updated:7-17/2026
[Application Scope]:

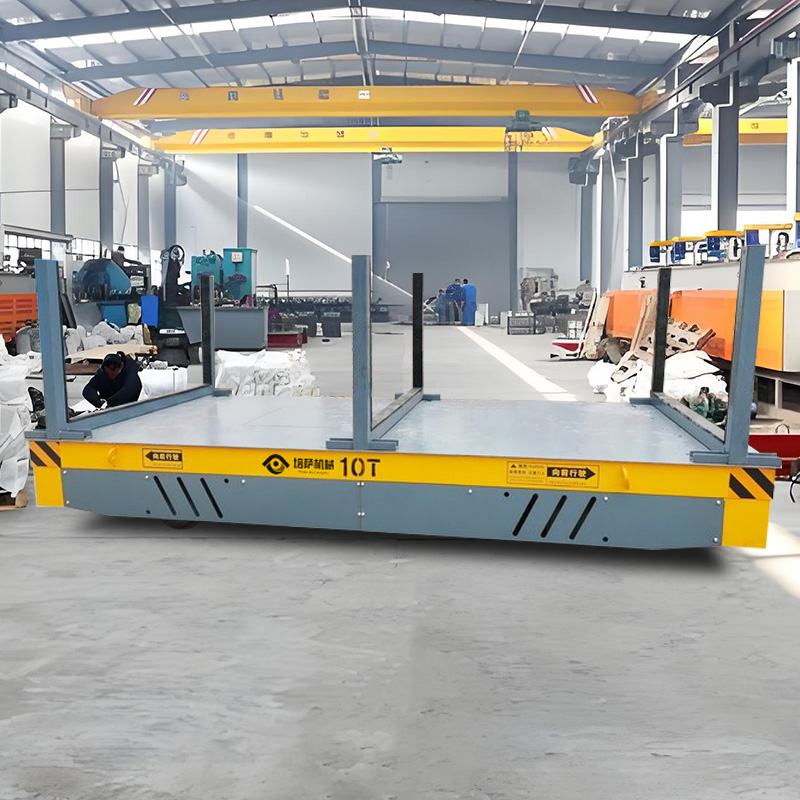

Transfer Trolley material handling equipment is suitable for material handling and transfer work in various places such as factories, warehouses, and logistics centers. It can be used to transport heavy goods, light goods, large goods, etc., and plays an important role in busy working environments.
The DWP Series Transfer Trolley is one of PEISA Machinery's best-selling products. Why has it become the preferred choice for so many customers?
Customizable to Your Application
Every manufacturing facility handles different types of materials, equipment, and finished products, each with unique sizes and weights. As a result, standard transfer equipment often cannot meet specific operational requirements. The DWP series transfer trolley can be customized in terms of load capacity, platform size, and other specifications to suit each customer's application.
Easy Remote-Control Operation
Unlike forklifts that require trained operators, the transfer trolley is controlled by a wireless remote, allowing a single operator to move heavy loads safely and efficiently throughout the workshop or warehouse. Its flexible operation also improves material handling efficiency.
Designed with Safety in Mind

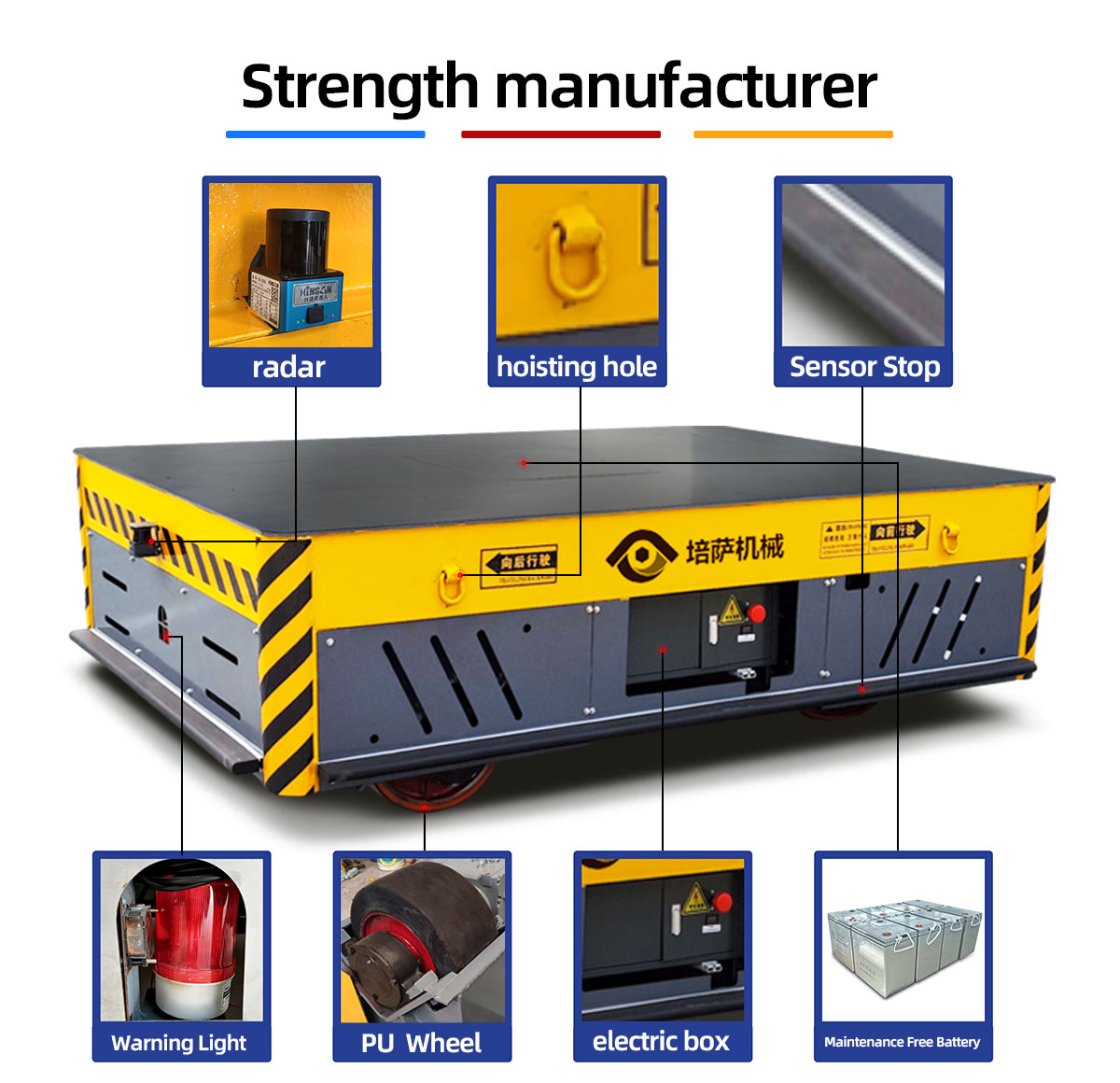

Safety is a key feature of the DWP series. The trolley can be equipped with infrared obstacle detection sensors, an emergency braking system, and audible and visual warning alarms to help ensure safe operation and reduce the risk of accidents during material transport.
| Model | DWP |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 |
| Motor Power (Kw) | 3 | 4 | 5 | 9 | 12 | 15 | 40 |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ600 | Φ700 | Φ900 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Break method | electromagnetic brake |
| Ground clearance | 50-100 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protection | Infrared contact stop, fan-scanning radar |
| Surface requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
[Product Advantages]:

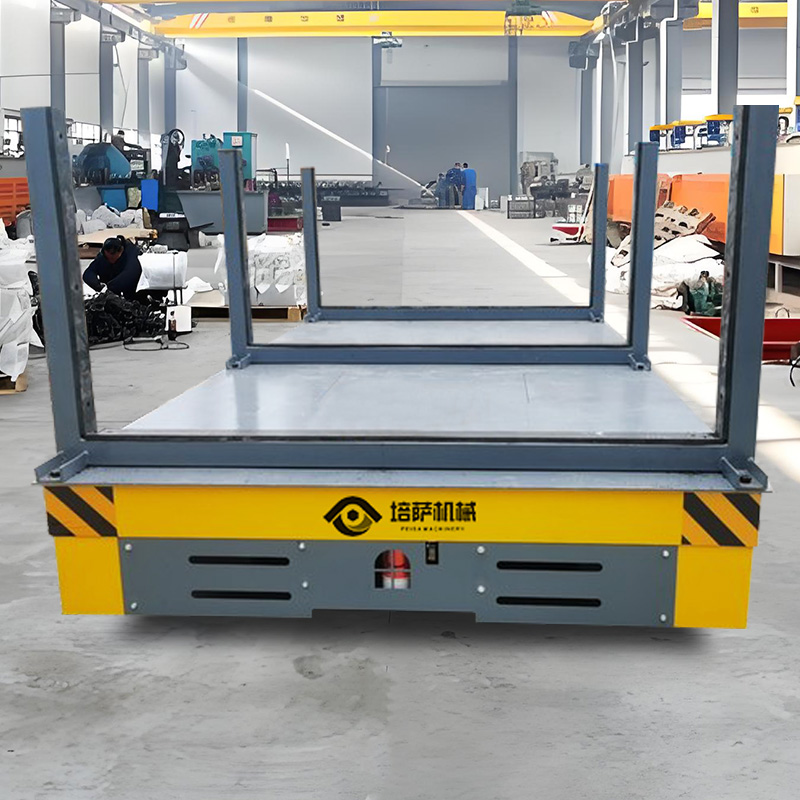

Efficient and labor-saving: Simple and convenient operation, easy to carry various materials, and improved work efficiency.
Safe and reliable: The emergency brake system ensures the safety of operators and surrounding personnel, and the trolley is stable and durable.
Multifunctional application: Suitable for a variety of places and working environments to meet different needs.
