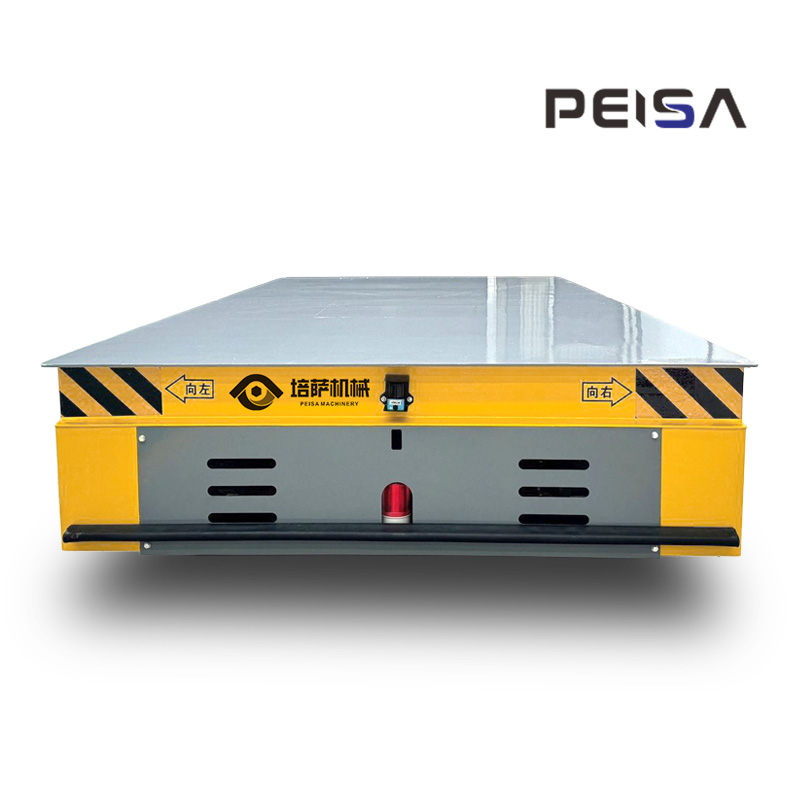

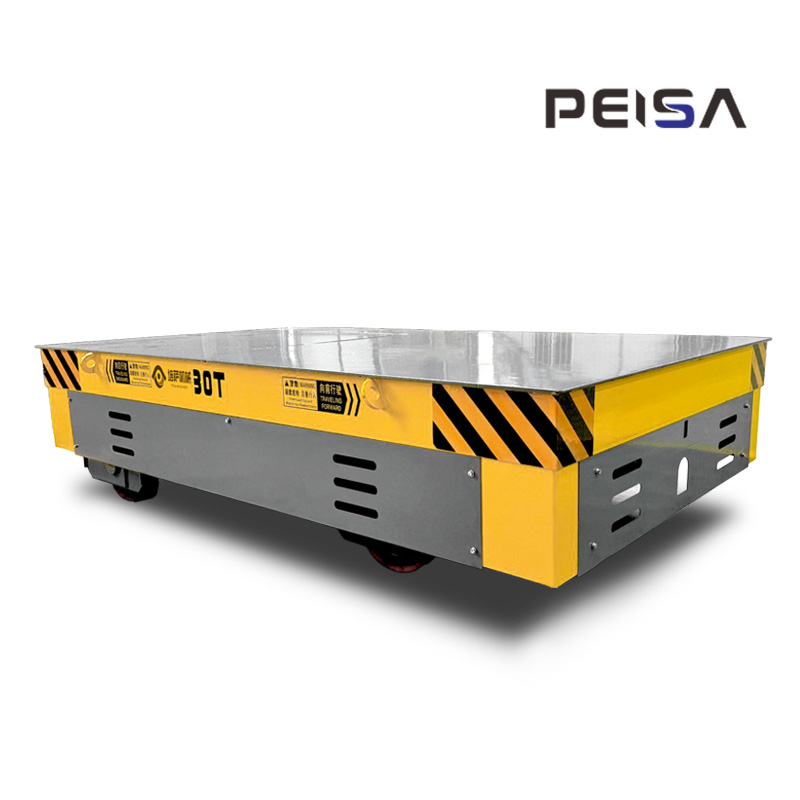

Electric Transfer Cart with Polyurethane Wheels

An electric transfer cart is designed for material movement inside warehouses and workshops. Its main purpose is to transport heavy materials, finished products, semi finished goods and other logistics loads from Point A to Point B. During transportation, the cart can avoid obstacles and adjust direction according to actual site conditions, offering excellent maneuverability.

With a wheeled design, the cart can travel freely in any direction and to any location. Equipped with polyurethane wheels, it achieves even greater flexibility, including 45‑degree turning and driving. The high‑hardness polyurethane material allows the cart to run smoothly on flat surfaces both indoors and outdoors.

Operating Steps

Check the surrounding area for obstacles.

Pull out the start button and take the remote control from the electrical box.

Turn the green button on the remote control, then press and hold the start button for 3 seconds.

The cart is now ready for operation.

Press the function buttons on the remote control to move forward, backward, turn left or right, etc.

When operation is finished, press the emergency stop button on the electrical box.

Features & Advantages

High flexibility: The wheeled structure enables free movement between workstations inside the plant without relying on rails.

Battery powered operation: No cables or power cords restrict movement.

Customizable load capacity and dimensions: Designed based on the maximum weight and size of the customer’s cargo.

Wireless remote control: Supports remote operation with a control distance of approximately 50 meters.

Strong load bearing performance: Designed with a 1.2x safety factor based on the maximum workpiece weight, providing extra capacity and impact resistance.

Reliable battery life: Battery capacity is configured according to daily transportation distance to ensure at least one full shift of operation.

Customizable chargers: Compatible with 220V, 380V, 400V power supplies and supports fast charging.

Comprehensive safety features: Safety edges, anti collision strips, infrared sensors, emergency braking, audible and visual alarms, and reflective strips.

Ready to use upon delivery: No on site installation or commissioning required. The cart arrives fully assembled and can be used immediately after reaching the factory.

Henan Peisa Machinery attaches great importance to product quality and customer service. Product quality and customer needs are always our top priorities. For many years, we have been customer centric and committed to delivering reliable quality in everything we do.

We provide one  stop procurement services covering everything from product design, manufacturing and testing to delivery, after sales support and technical assistance. You can get a complete, full cycle service solution from us.
