load:30 Ton (Custom)
Table size: 4000*2500*550
Power supply mode:Lead-acid Battery Powered. Customized

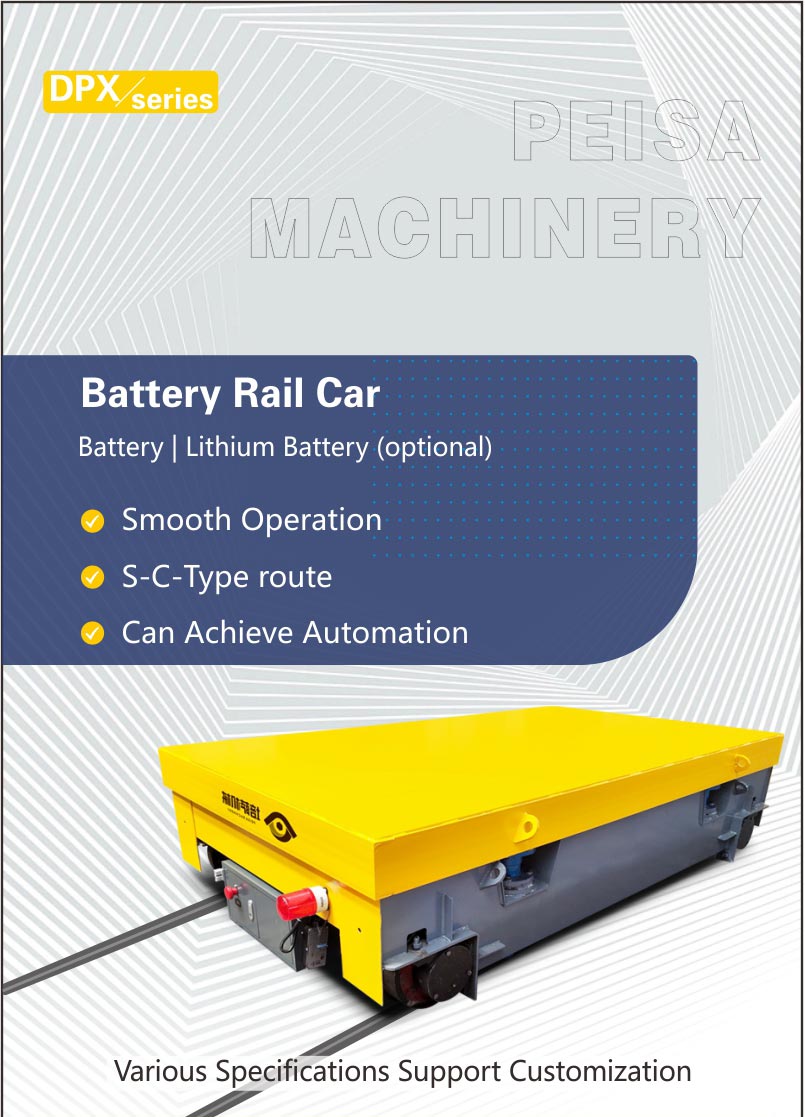

The lead-acid battery-powered Materials Transfer Cart is an electric transfer device for heavy material transportation, especially suitable for scenarios that require precise control and safe transportation of heavy materials (factories, workshops, warehouses, etc.). This rail car is operated by wireless remote control, which improves operational flexibility and safety, especially in crowded or space-limited environments


Characteristics of lead-acid battery:
Lead-acid batteries are relatively low in cost and relatively simple to maintain, suitable for customers with limited budgets; Lead-acid batteries have a short service life and require regular battery pack renewal. Charging time is long, it may take several hours or even ten hours to fully charge. But the cost is much lower than the battery.
Application scenario
Workshop transportation: In large factory workshops, Materials Transfer Carts are used to transport heavy raw materials, semi-finished products or finished products, reducing the labor intensity of manual handling and improving production efficiency.
Warehouse management: In warehouses, rail carts help move goods quickly and accurately, optimizing inventory management processes.
Special environment: In special environments such as flammable, explosive or high temperature, electric rail carts are safer and more environmentally friendly than traditional fuel vehicles.

| Model | DPX | |||||||
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 | |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of frame | Steel plates welded,beam structure | |||||||
| Table Size (mm) | Customized | |||||||
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 | |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 | |
| Rail Distance(mm) | 1430 | 2000 | ||||||
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
| Battery Capacity(Ah) | 180 | 200 | 200 | 260-300 | 300-600 | |||
| Break method | electromagnetic brake | |||||||
| Ground clearance | 500-100 | |||||||
| Balance adjustment | mechanical conditioning | |||||||
| Operating Mode | Wireless remote control/car handle | |||||||
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery | |||||||
| Safety protectio | Infrared contact stop, fan-scanning radar | |||||||
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame | |||||||
