Technical Parameter

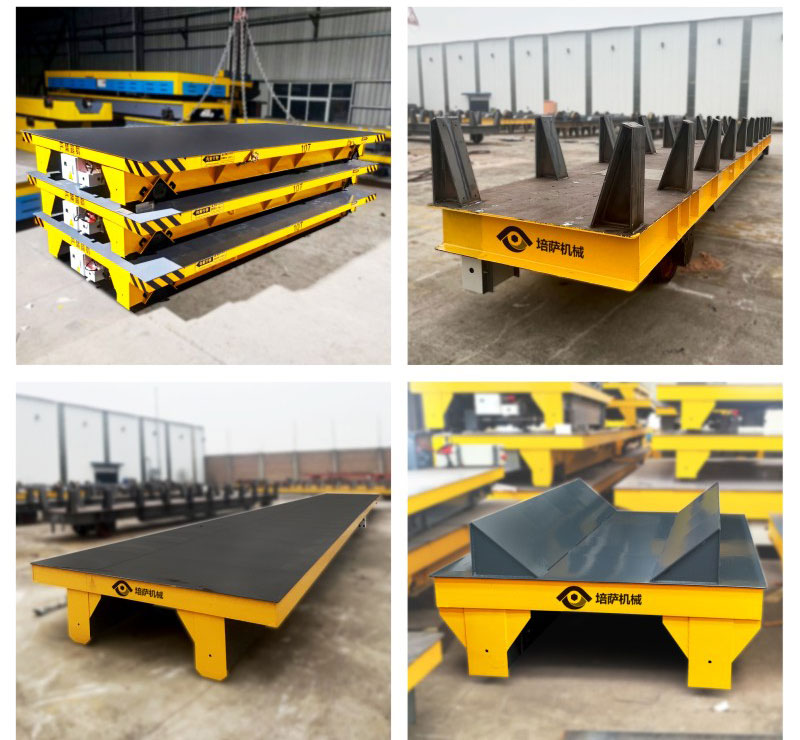

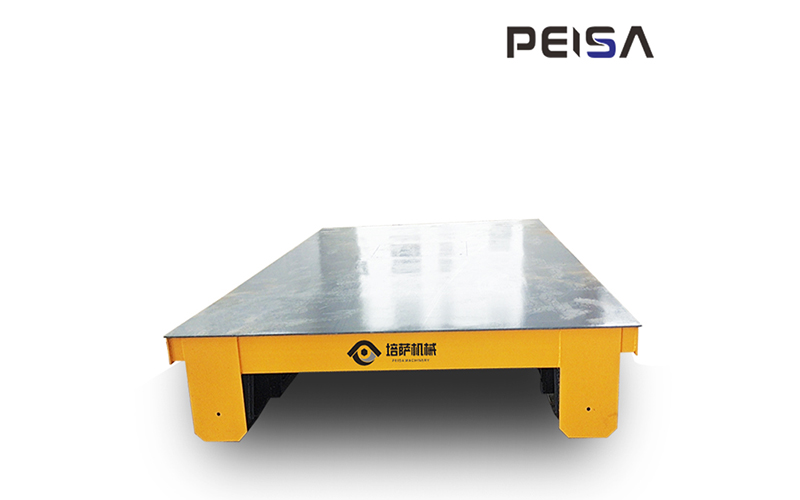

A rail-mounted trolley is a small electric transfer cart guided by rails, designed to transport large and heavy materials of any size. It is commonly used in factories, workshops, warehouses, and outdoor environments within the manufacturing industry. As a widely used transport solution for heavy industrial enterprises, its functions are similar to those of forklifts and cranes but offer a more economical alternative.
When selecting a power supply method for rail-mounted trolleys, users have multiple options, including battery power, cable drum power, and low-voltage track power. Approximately 60% of users prefer battery power due to its convenience. However, each power supply method has its own unique advantages.

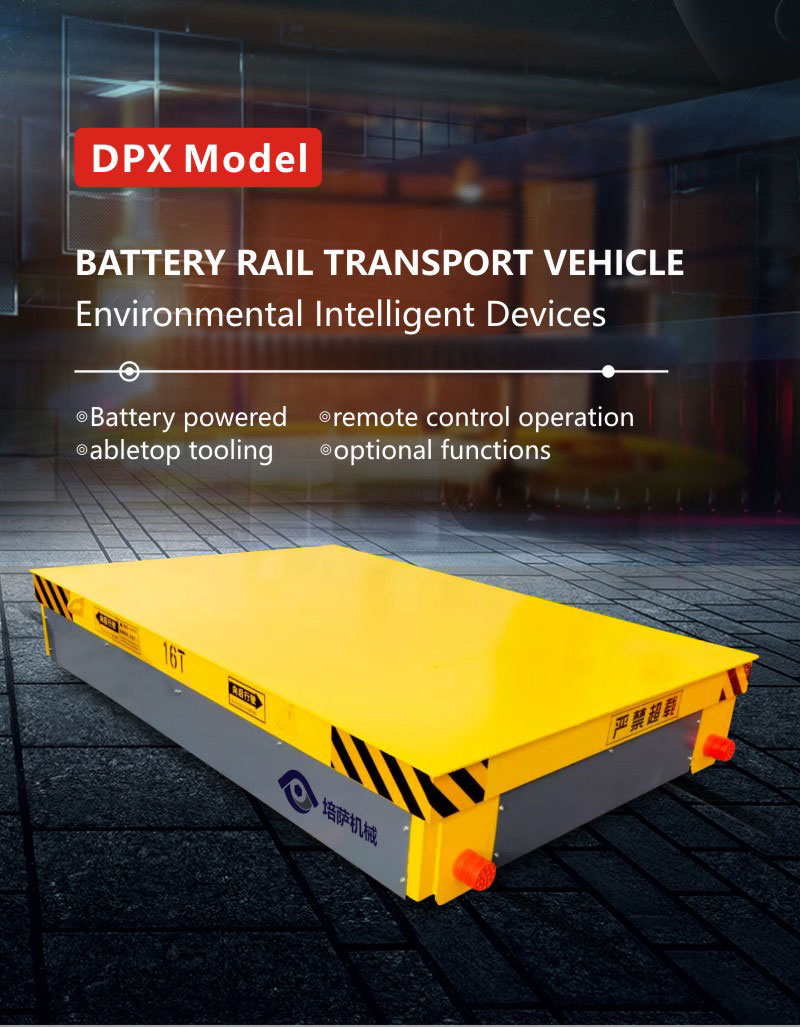

| Model | DPX |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |

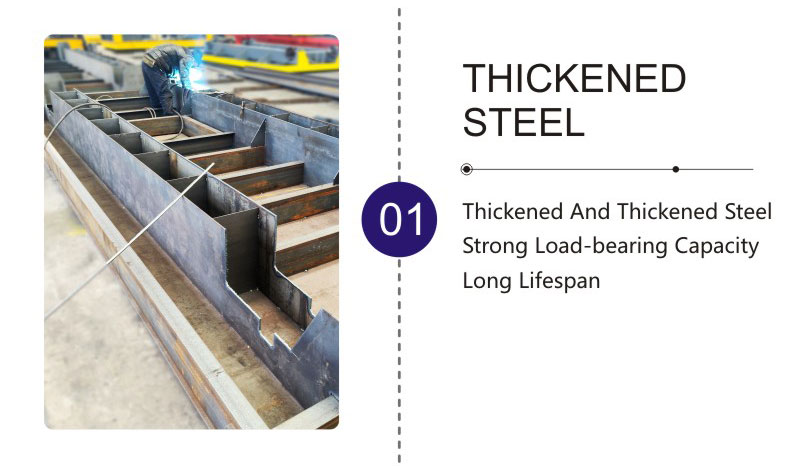

| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 |
| Rail Distance(mm) | 1430 | 2000 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Battery Capacity(Ah) | 180 | 200 | 200 | 260-300 | 300-600 |
| Break method | electromagnetic brake |
| Ground clearance | 50-200 |
| Balance adjustment | mechanical conditioning |

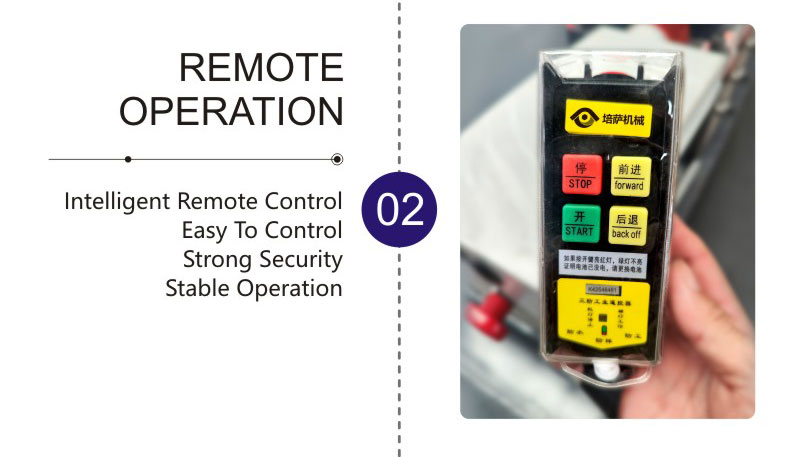

| Operating Mode | Wireless remote control/car handle |

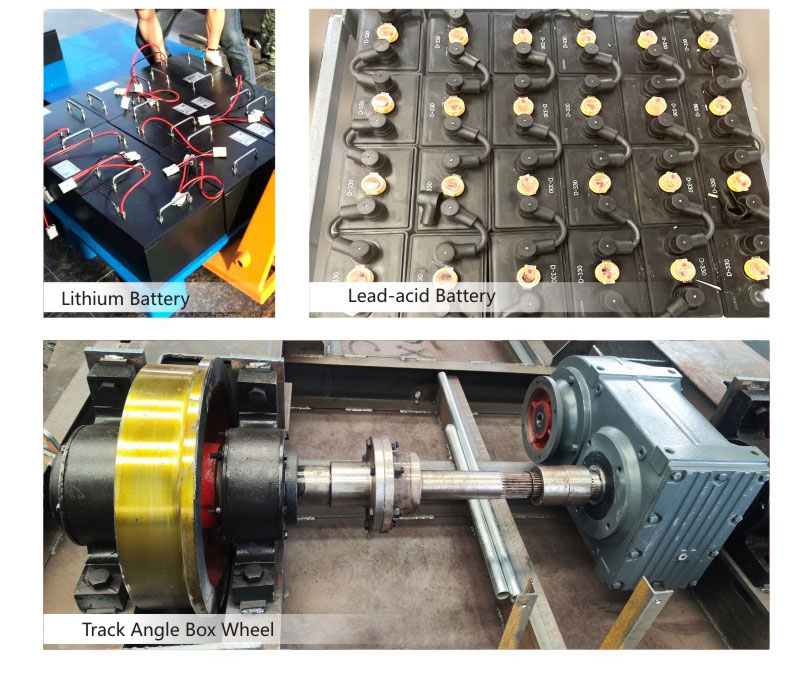

| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |

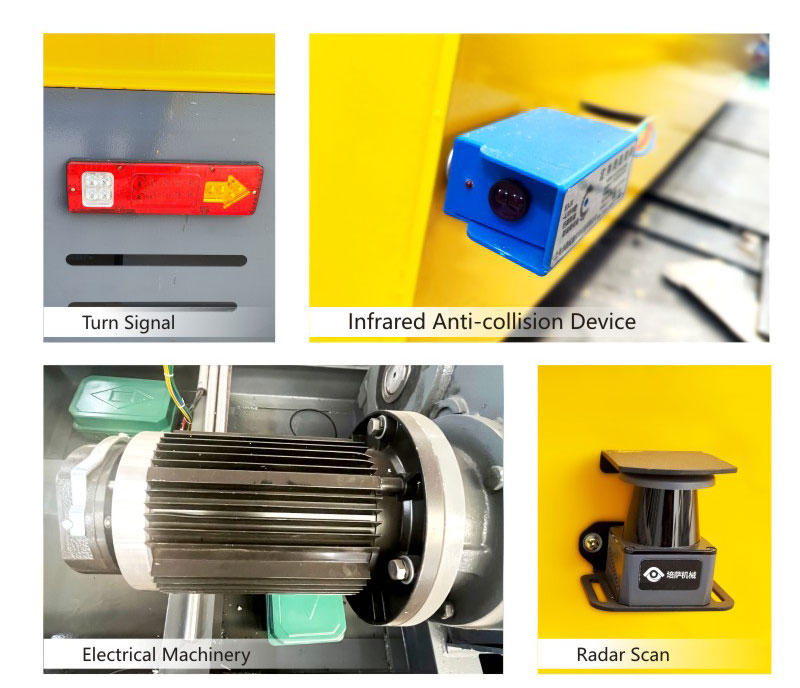

| Safety protectio | Infrared contact stop, fan-scanning radar |
Mesa requirement

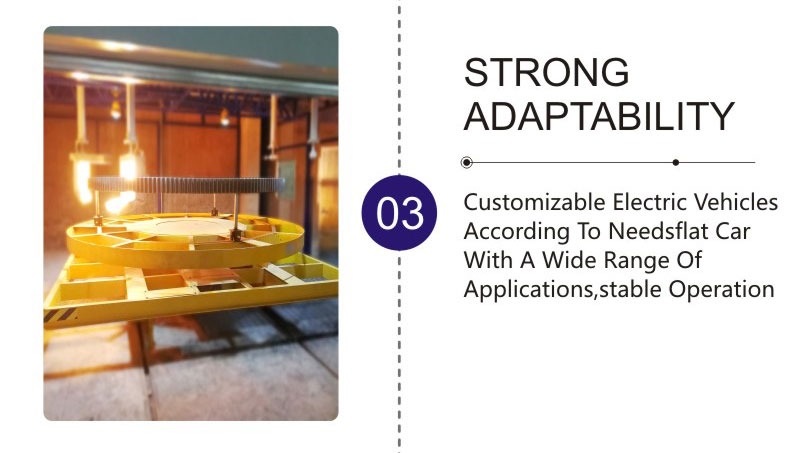

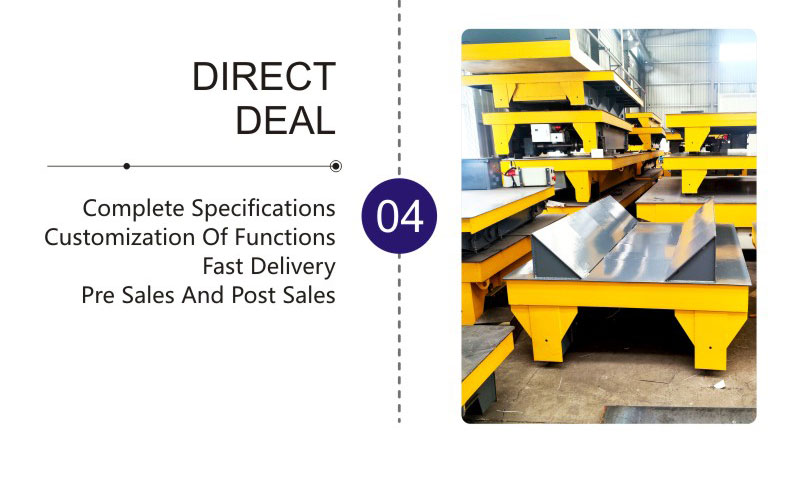

| Laying rubber, V-shaped frame, table lifting, rollover, work frame |
How to Choose a Suitable Rail-Mounted Trolley?
Determine Load Capacity and Size
Consider the Operating Environment
In special conditions, such as dusty, high-temperature, or corrosive environments, it is necessary to choose a trolley with specialized features to ensure optimal performance.
Evaluate Transportation Time and Distance
