The Rail Powered Transfer Cart is an electric flatbed cart powered by electricity supplied via rails. It utilizes a step-down transformer to reduce high-voltage electricity to a safe, acceptable low voltage of 36V; once powered, the cart is capable of executing functions such as moving forward, reversing, and stopping.
The Rail Powered Transfer Cart is a heavy-duty material handling vehicle widely used in industrial production, manufacturing, and smelting industries.
This transfer cart converts alternating current through a step-down transformer to a safe 36V supply. The low-voltage power is transmitted along two insulated rails, then collected by the cart and fed into its electrical control cabinet, powering the vehicle into motion.
Power flow: High voltage → Step-down transformer → Insulated rails → Power pickup on cart → Rectifier / Booster → Electrical cabinet → Cart operation

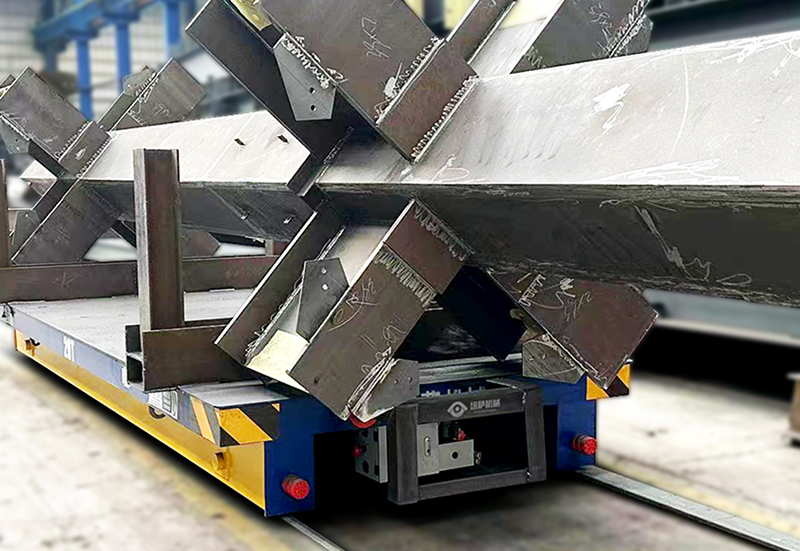

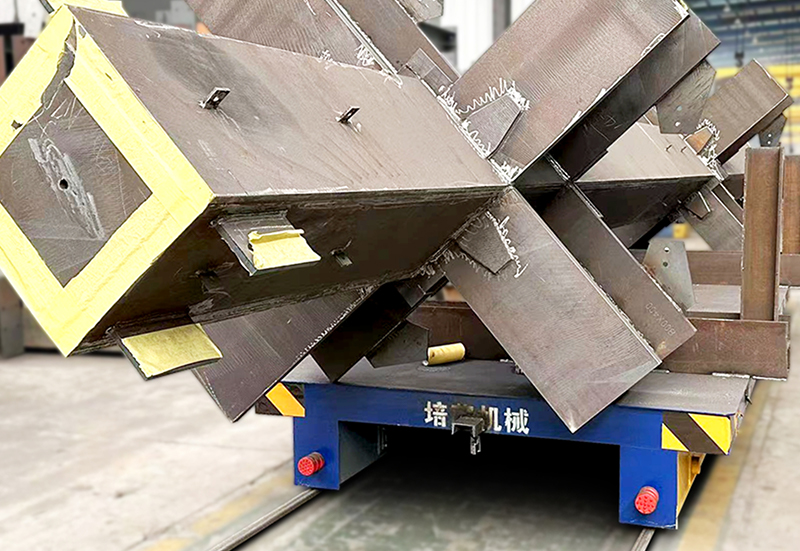

A rail transfer cart is one of the most effective material handling solutions for transporting heavy steel structures in the manufacturing and industrial sectors. Its high load capacity and strong impact resistance enable it to carry heavy materials without deformation, with a maximum load capacity of up to 1500 tons. In addition, the low-voltage rail power supply system makes it especially suitable for high-frequency and long-distance transportation applications.
1.No charging or power interruptions: the cart runs continuously as long as the rails are powered.
2.Ultra-heavy load capacity: capable of transporting loads from 1 ton up to 1,500 tons.
3.Low upfront investment and minimal long-term maintenance, making it highly cost-effective compared to battery-powered transfer carts.
4.Supports fully automated operation, enabling unmanned material transport in production workshops.
Common Concerns Addressed
Is rail insulation complicated?It only requires one extra step compared to battery-powered carts: laying insulation materials. Professional local contractors can easily complete this work.
Does power cut out at rail joints?Rail joints are connected with splice plates, ensuring stable power transmission without interruption.
Is there a limit to travel distance?Theoretically unlimited. A supplementary power supply point is installed every 50 to 100 meters to maintain stable voltage.
