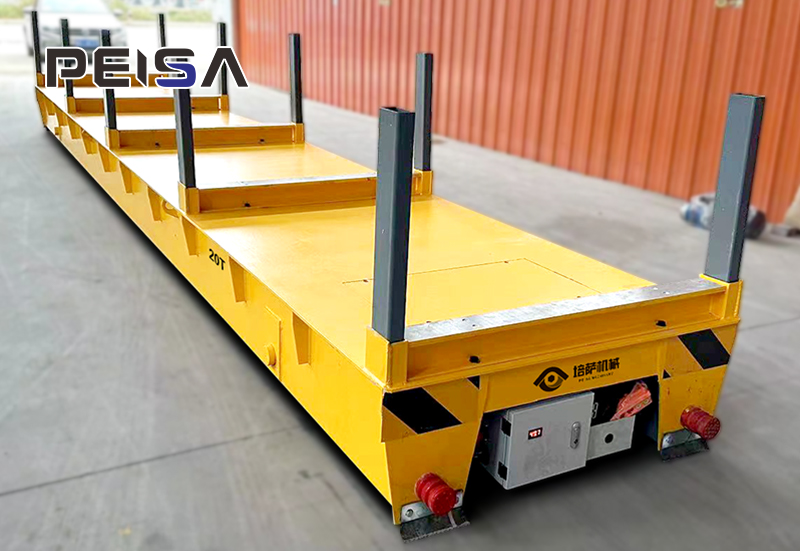

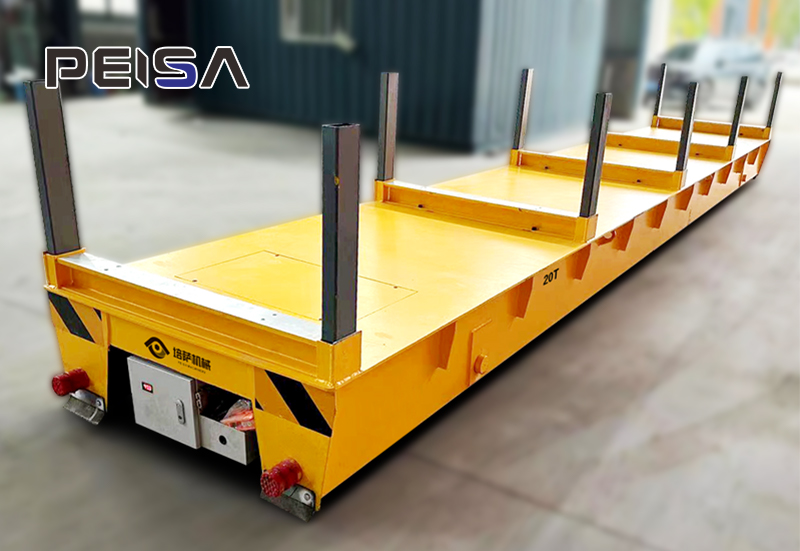

Low Voltage  Rail  Transfer Cart

Low-voltage rail powered rail transfer cart , also known as low-voltage rail electric transfer cart or electric transfer trolley, is a rail vehicle driven by a low-voltage power supply. It uses a low-voltage guide rail installed on the ground to supply power, and obtains current from the guide rail through the on-board collector to drive the motor of the vehicle to work, so as to achieve the handling and transportation of goods. Such vehicles are typically designed for medium - and long-distance material handling tasks in factories, warehouses, and other industrial environments.

Advantages of Low Voltage Rail Transfer Carts

Low-voltage rail transfer carts use a low-voltage power supply, typically below 36V, which significantly reduces the risk of electric shock. The vehicle is also equipped with safety features such as a braking system, an emergency stop button, and obstacle detection to further ensure safe operation.

These carts can operate continuously without being affected by operator fatigue, greatly improving material handling efficiency. They also offer low operating costs and flexible routing, which enhances overall economic benefits.

In addition, the electric flat cart has a simple structure and is easy to maintain, helping to reduce maintenance costs.

Strong adaptability: Depending on different application scenarios and requirements, various models and specifications can be customized to meet material handling needs in diverse industrial environments.

Why should I choose low voltage rail power instead of battery?

How does a low-voltage rail transfer cart work?

It is powered by a low-voltage rail system connected to the factory's AC power supply. The AC power is supplied to the rail system through a step-down transformer.

The transfer cart is equipped with power pickup sliders. Once the power is collected from the rails, it passes through an onboard step-up transformer and is then supplied to the electrical control box.

Once the cart is powered on, it can be operated using a wireless remote control. The motor drives the gearbox and wheels, allowing the cart to move forward, move backward, and stop as needed.

When should you choose a low-voltage rail transfer cart?

There are several power supply options for rail transfer carts, including batteries, cable reels, trailing cables, and low-voltage rail systems.

With so many options available, when is a low-voltage rail transfer cart the right choice?

Customers may consider the DDG-type model in the following situations:

1. Frequent or high-frequency transportation of heavy materials.

2. Transportation along fixed routes, such as A → B → C.

3. Long-distance transportation or operation in areas where a direct power connection is not available.

4. Most importantly, the factory environment allows for the installation of rails.

5. Heavy-load applications.

6. Applications that require long-term and stable transportation. Although installing a low-voltage rail system requires a certain amount of time and investment, it can be an excellent choice for long-term use.
