Technical Parameter
The Low Voltage Rail Transfer Cart belongs to our DDG series and is powered by low-voltage rails to drive the cart. There are two types of low-voltage rail power supply: two-phase and three-phase, depending on the power configuration available at the customer’s facility.
Two‑Phase Power Principle
Two-phase power is fed into a transformer and stepped down to a safe 36V voltage. This power is transmitted to the rails. Current collectors mounted at the bottom of the cart draw power from the rails, which is then converted to DC power via a rectifier before entering the electrical cabinet to drive the cart.
Three‑Phase Power Principle
Three-phase power goes through a transformer to be reduced to 36V and supplied to the rails. The current collectors collect power from the rails, which is then boosted by a step-up transformer and sent to the electrical cabinet to operate the cart.
Both two-phase and three-phase systems offer the same key advantages:
Continuous power supply enables 24-hour non-stop operation.
High guidance accuracy with no deviation from the rail system.
Excellent positioning precision, compatible with PLC control for unmanned automatic operation.
Low maintenance requirements with no extra upkeep needed.
Lower long-term cost compared to battery-powered transfer carts, eliminating the need for battery replacement every three years.
Ideal Applications for Low Voltage Rail Transfer Carts
Heavy loads · High operating frequency · Continuous production · Harsh working environmentsIncluding steel structure plants, motor manufacturing facilities, and mold workshops.

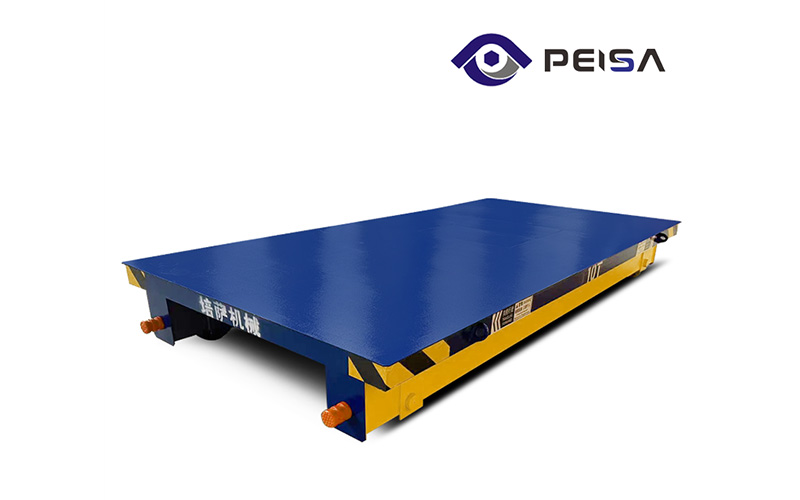

Low Voltage Rail Transfer Cart (1–1000 tons)
Load capacity from 1 to 1000 tons.
Low-voltage rail power supply, supporting both two-phase and three-phase power.
Customizable according to the size of the goods to be transported.
Rail system planned in advance.
Insulated rail system.
Motors and electronic controls from well-known brands can be selected according to customer requirements.
Remote wireless control.

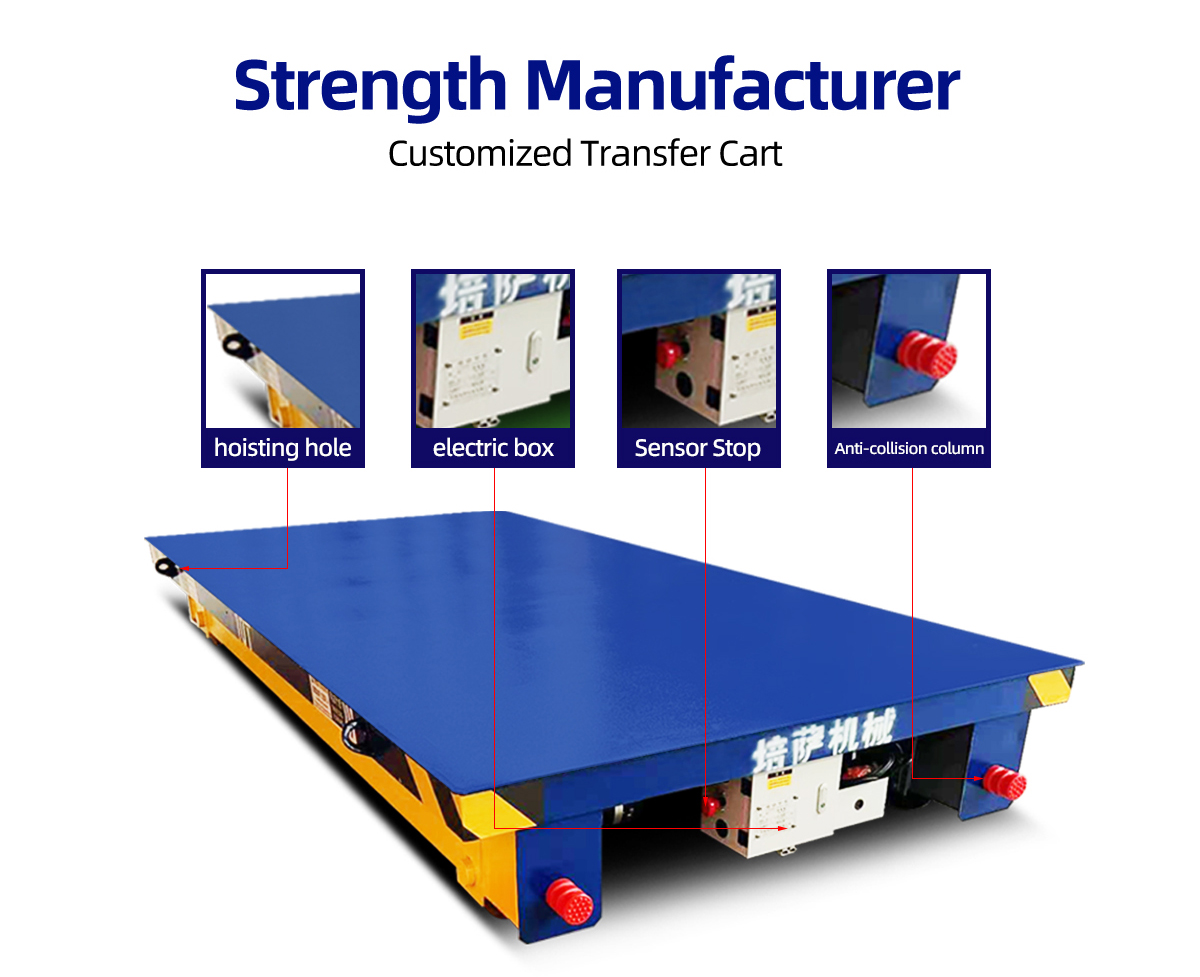

Safety devices: emergency brake, infrared sensors, scanning radar, limit switches, and anti-collision columns.
Parameters
| Model | DDG |
| Rated load (T) | 5 | 10 | 20 | 30 | 50 | 60 | 150 |
| Impacted rated load(T) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded,beam structure |
| Table Size (mm) | Customized |
| Height (mm) | 450 | 530 | 600 | 700 | 800 | 800 | 1000 |
| Motor Power (Kw) | 2 | 2 | 3 | 4 | 6 | 8 | 22 |
| Rail Distance(mm) | 1430 | 2000 |
| Running speed(m/min) | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Track selection | P18 | P18 | P24 | P38/43/50 | QU100 |
| Transformer power | 6 | 6 | 10 | 15 | 25 | 30 | 50 |
| Break method | electromagnetic brake |
| Ground clearance | 500-100 |
| Balance adjustment | mechanical conditioning |
| Operating Mode | Wireless remote control/car handle |
| Battery Type | Lead-acid battery, maintenance-free battery, lithium battery |
| Safety protectio | Infrared contact stop, fan-scanning radar |
| Mesa requirement | Laying rubber, V-shaped frame, table lifting, rollover, work frame |
