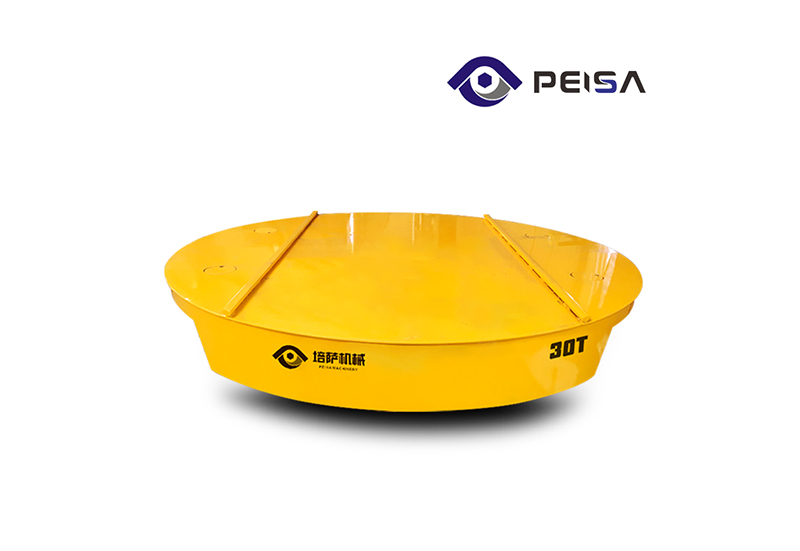

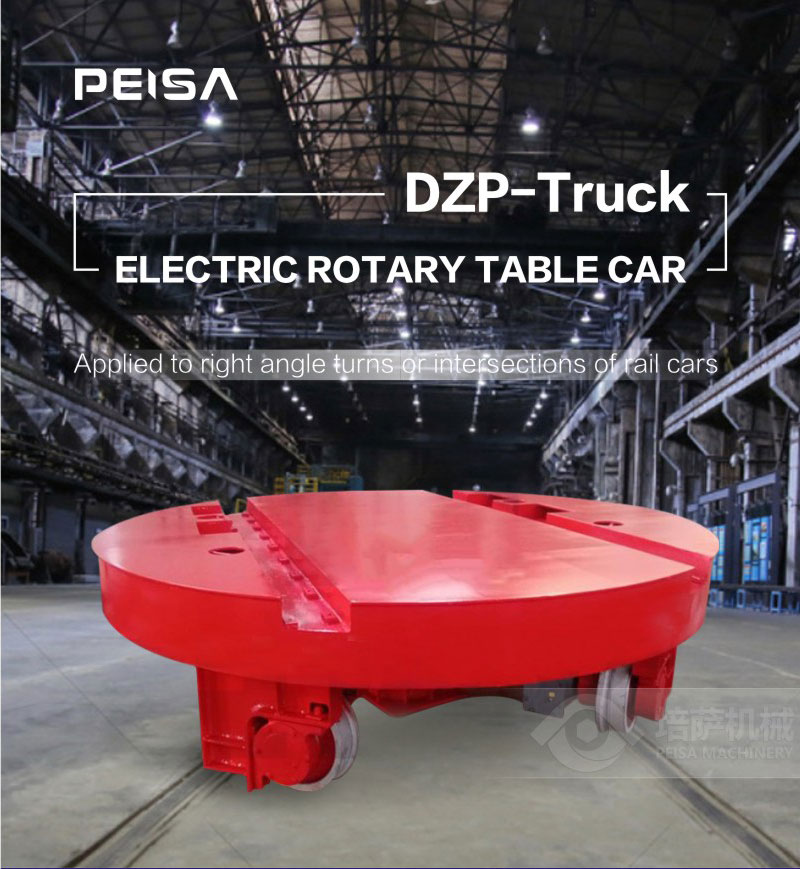

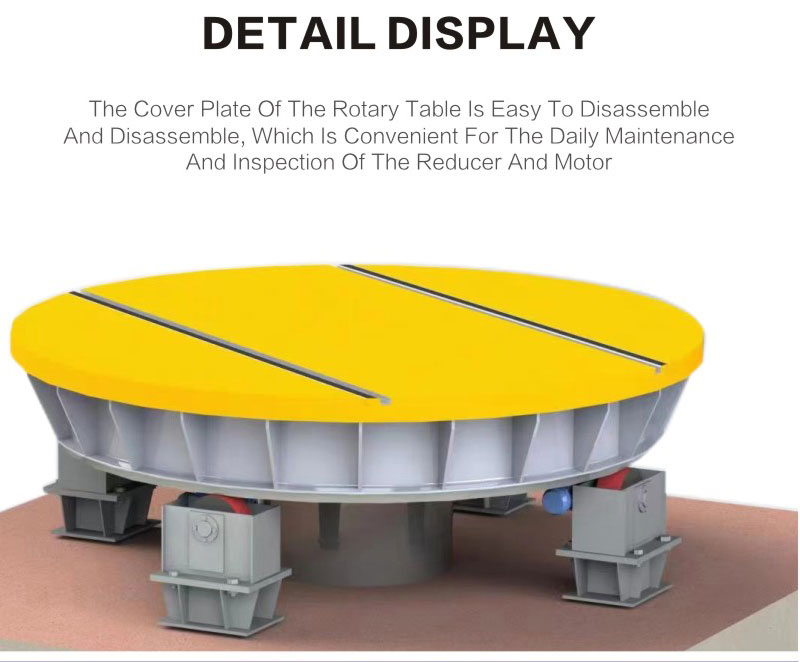

Railroad Turntable

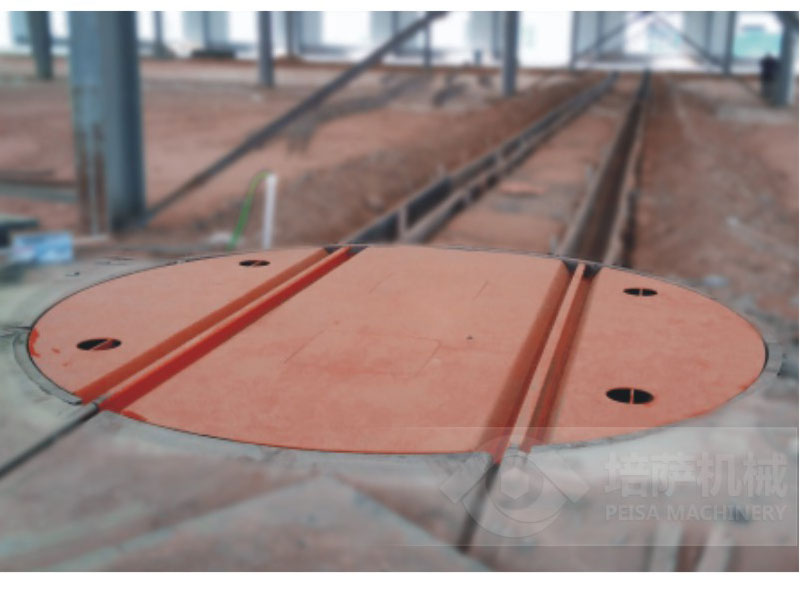

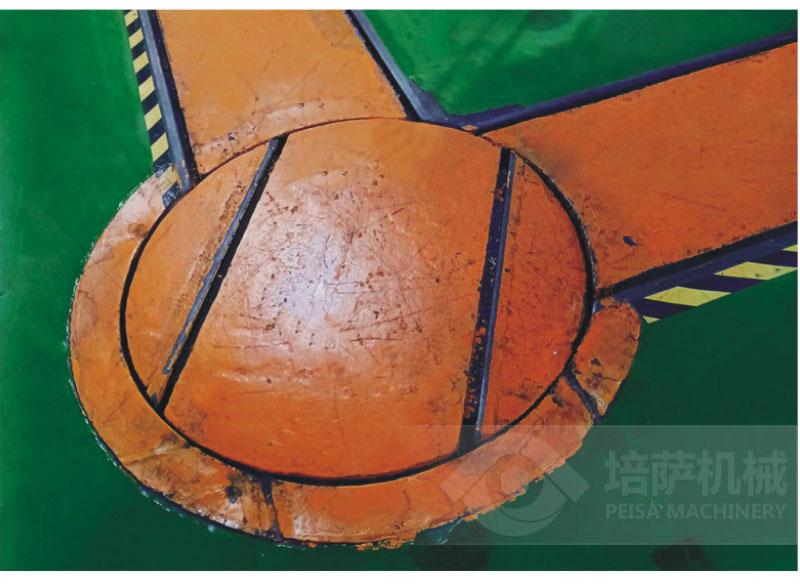

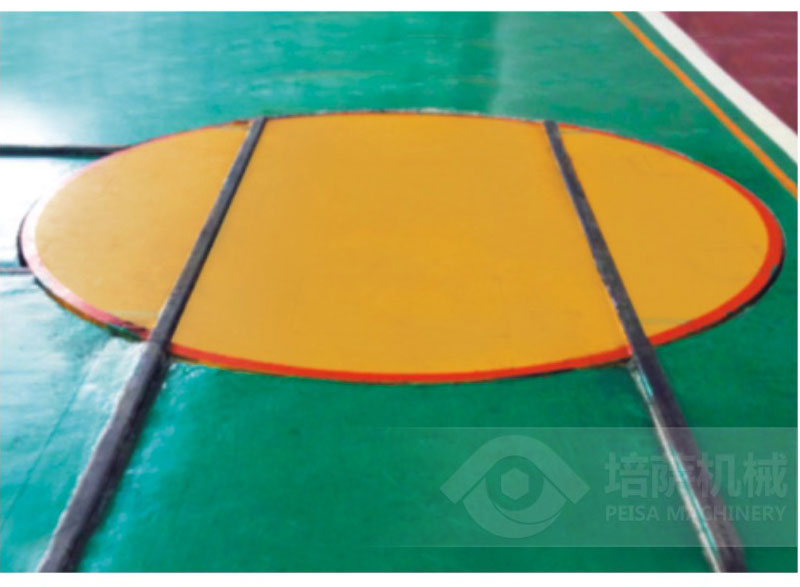

A railroad turntable is a key piece of equipment widely used in heavy industry. Factories rely on these custom-engineered turntables to adjust and redirect the travel path of industrial rail vehicles, suitable for both indoor and outdoor operation. It supports full-range directional adjustment from 1° to 360°, enabling precise and flexible turning as required.

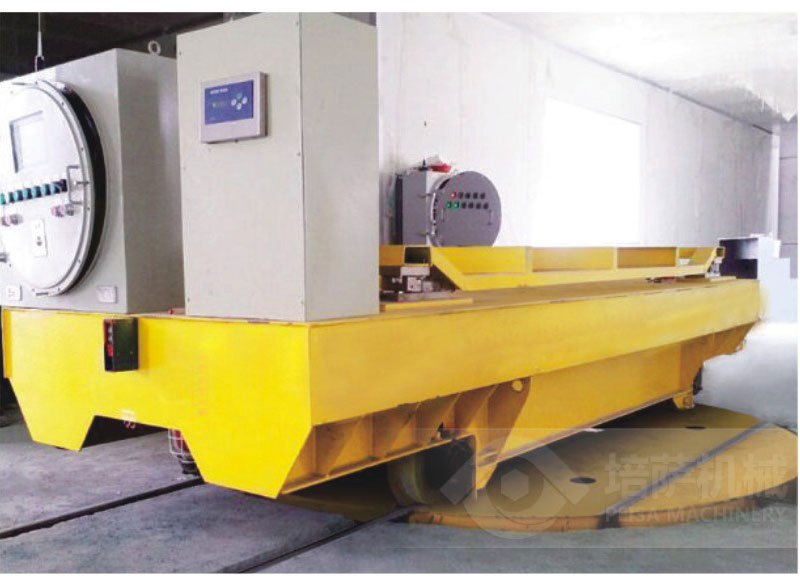

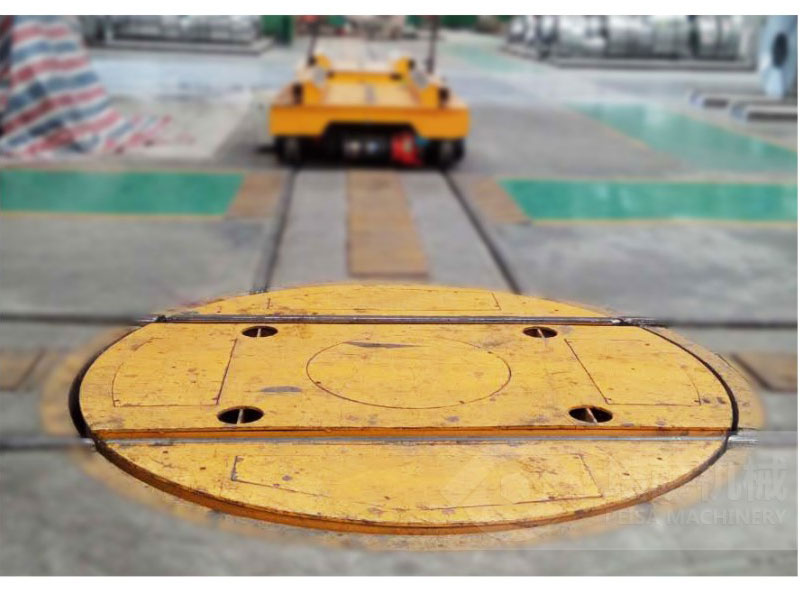

In practice, railroad turntables are most commonly paired with rail transfer carts. Many factories use rail transfer carts to move heavy materials throughout production facilities, where directional changes and turns are unavoidable. The railroad turntable provides a reliable and efficient solution to guide these carts along different travel routes.

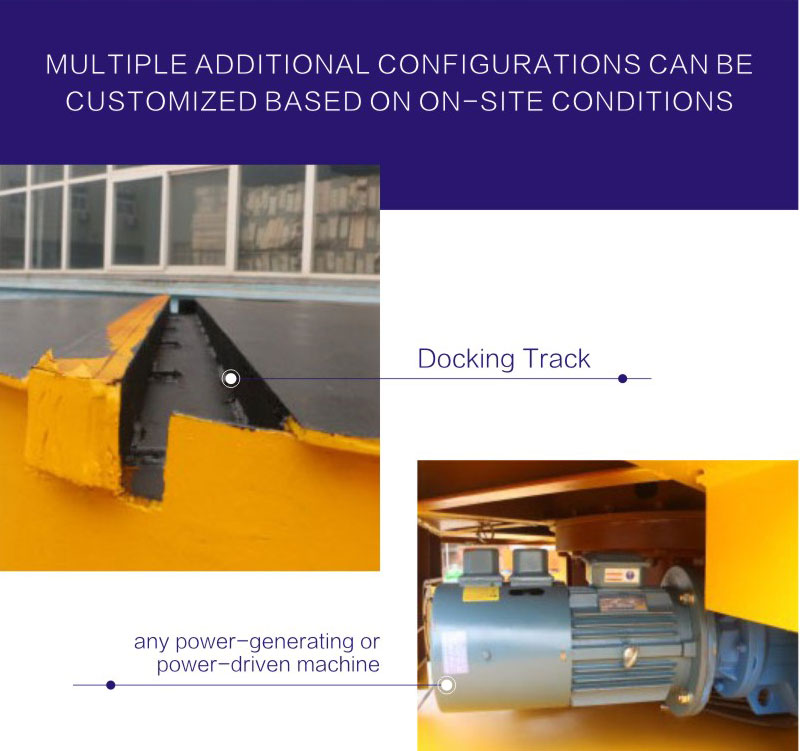

A rail turntable cart can be customized in the following aspects:

• Load capacity (from 1 ton up to 200+ tons)

• Turntable diameter / platform size

• Rotation angle (90°, 180°, 360° rotation)

• Power supply method (battery powered, cable powered, low-voltage rail power)

• Rail gauge (customized to match existing rails)

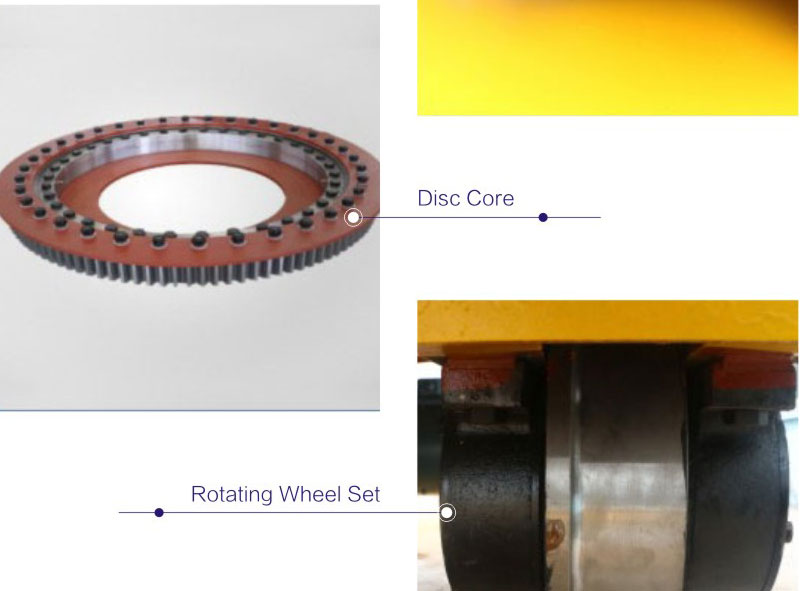

• Rotation drive system (motor-driven rotation, hydraulic rotation)

• Rotation speed (fixed speed or variable speed control)

• Control system (wireless remote control, wired pendant control, PLC automatic control)

• Positioning accuracy (mechanical positioning, sensor positioning, automatic alignment)

• Safety devices (limit switches, emergency stop, warning light & buzzer, anti-collision sensors)

• Table surface design (flat platform, V-frame for coils, mold support frame, customized fixtures)

• Operating environment (indoor/outdoor, high temperature, explosion-proof requirements)

Key Advantages

Space-saving design that optimizes on-site layout and minimizes floor space usage.

Cost-effective solution with lower overall operating expenses.

Supports remote operation, keeping workers away from the working area for improved safety.

Cable-powered for continuous, non-stop operation with zero downtime.

Fully compatible with automated production lines, supporting PLC control for unmanned material handling.

With over 10 years of manufacturing experience, Henan PEISA Machinery Co., Ltd. specializes in railroad turntables. We provide tailored solutions designed to match diverse working conditions and on-site requirements.
