Heavy Duty AGV| Transfer Cart Manufacturer
Get the Latest Price List Online Transfer Carts

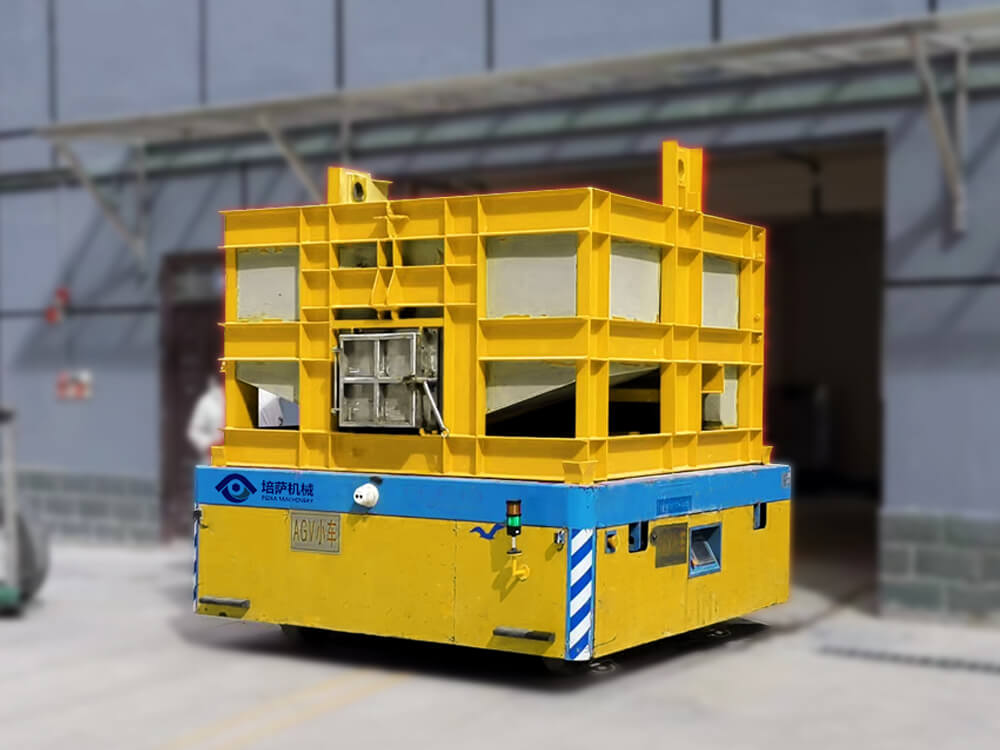

Heavy Duty AGV| Transfer Cart Manufacturer

Load:1-150T

Table size: custom made

Speed: 25 m/min (Custom)

Power supply mode:Battery/Lithium battery

Technical Parameters

Heavy Duty AGV for Heavy Load Material Handling


What is a Heavy-Duty AGV?

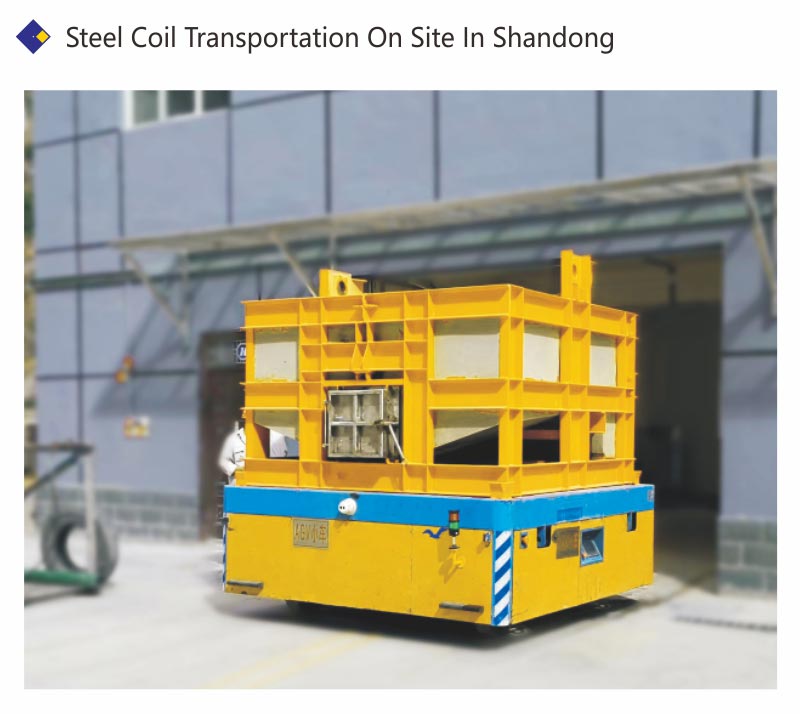

A heavy-duty AGV is an intelligent material handling vehicle capable of transporting heavy loads—such as molds, transformers, steel coils, and large-scale equipment—with minimal human intervention.

Heavy Duty AGV tRANSFER cART

At PEISA, heavy-duty AGVs are divided into two main categories:

  1. Fully Automated Heavy-Duty AGVs: Primarily used in smart warehouses and workshops equipped with their own dispatch systems. Commands are sent through the dispatch system, enabling unmanned and autonomous operation. Key features: No human intervention is required; the vehicle is controlled by the dispatch system.

  2. Semi-Automated Heavy-Duty AGVs: Designed for factories without a central dispatch system. Commands are issued through an onboard display or a call station at a designated location. Once loading or unloading is completed, a worker at the station sends a command, and the vehicle automatically travels to the next workstation.

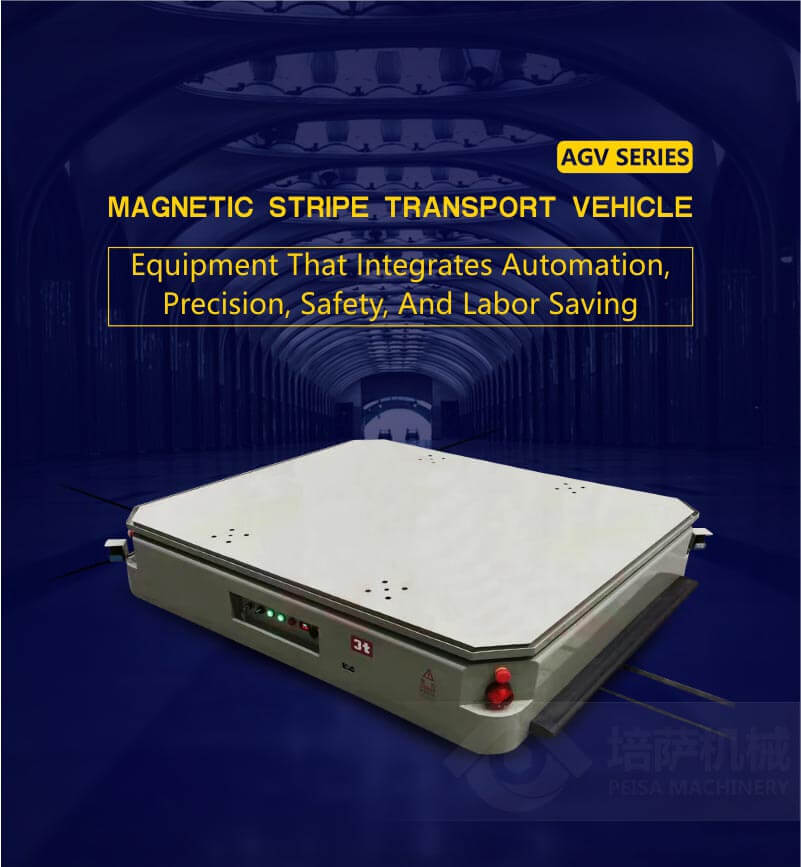

  3. Regardless of whether they operate fully automatically or semi-automatically, these vehicles rely on magnetic strip navigation.

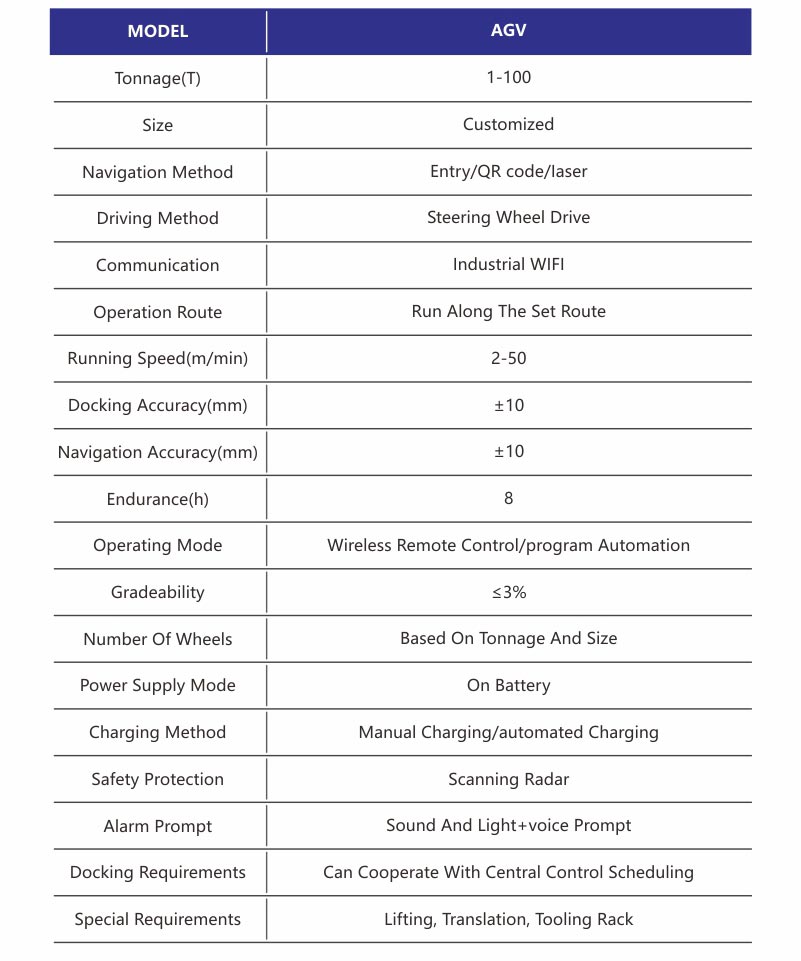

ModelAGV
Load Capacity (T)1–100
SizeCustomized

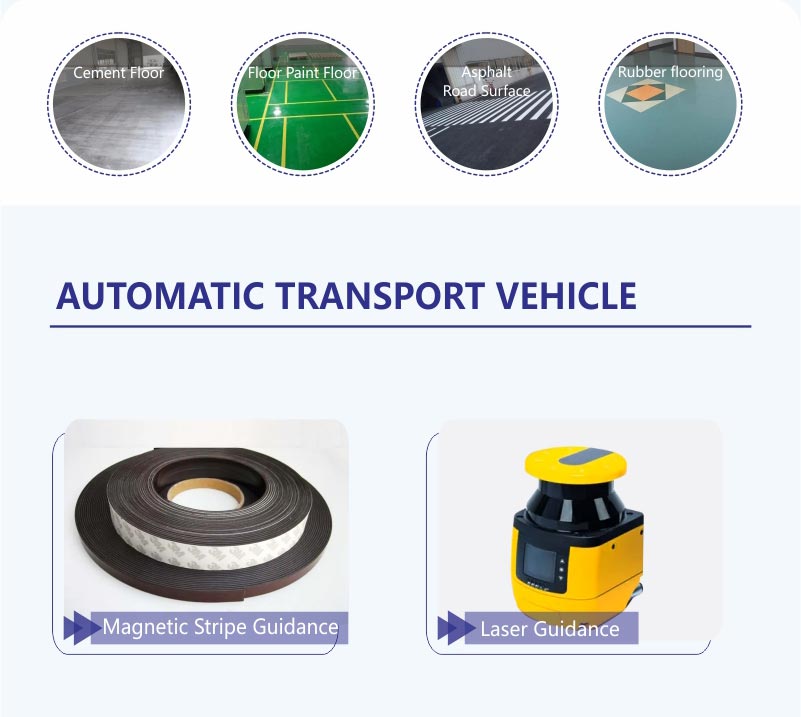

Navigation MethodMagnetic Stripe / QR Code / Laser
Driving MethodSteering Wheel Drive
CommunicationIndustrial Wi-Fi
Operation RouteRuns Along the Set Route
Running Speed (m/min)2–50
Docking Accuracy (mm)±10
Navigation Accuracy (mm)±10
Endurance (h)8
Operating ModeWireless Remote Control / Programmed Automation
Gradeability≤3%
Number of WheelsBased on Load Capacity and Size
Power SupplyBattery Powered
Charging MethodManual Charging / Automatic Charging
Safety ProtectionScanning Radar
Alarm PromptSound, Light & Voice Prompt
Docking RequirementsCan Work with Central Control Scheduling System
Special RequirementsLifting, Translation, Tooling Rack

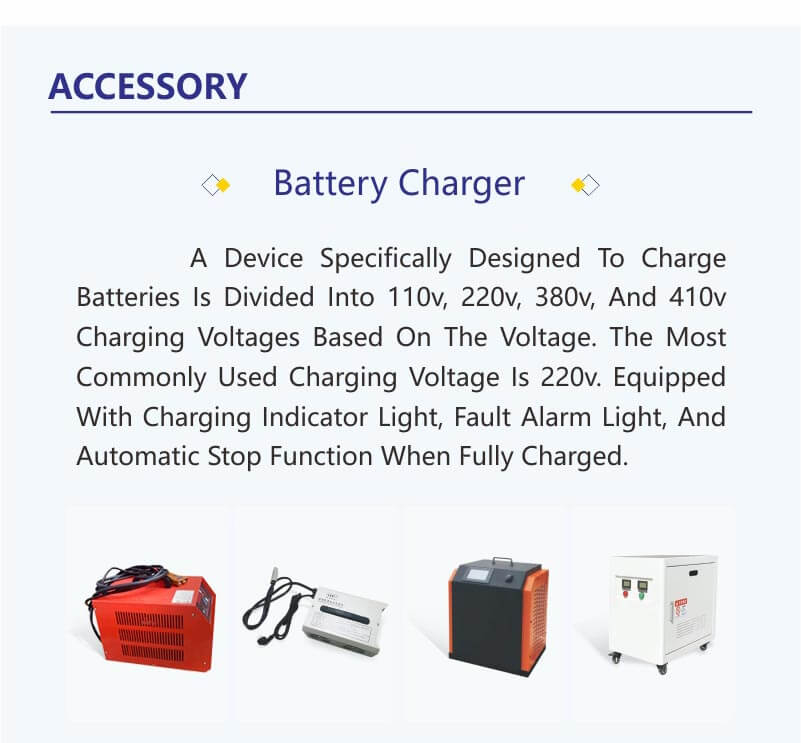

cHARGER

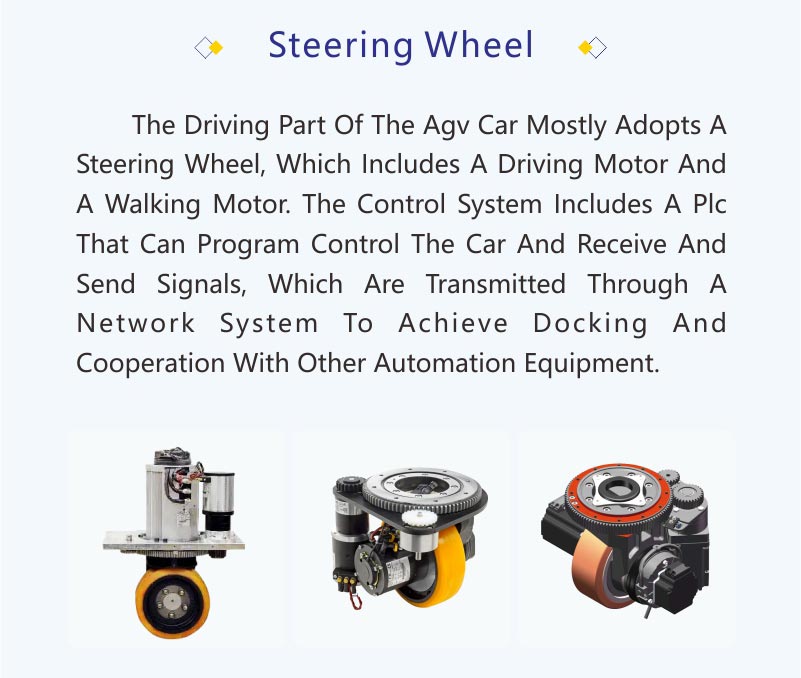

Helm Wheel of AGV

What functions can these AGVs perform?

  1. Trackless movement: Relies on magnetic strip navigation and requires no modification to the facility layout.

  2. Reduced labor requirements: Helps reduce labor costs.

  3. Intelligent dispatch: Integrates with factory automation systems, allowing vehicles to automatically plan routes based on production tasks.

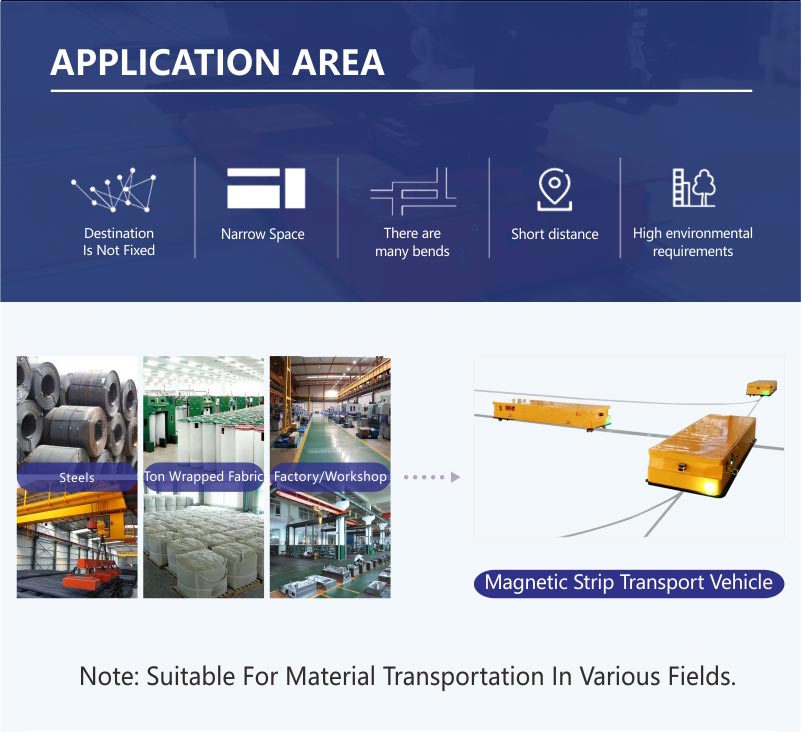

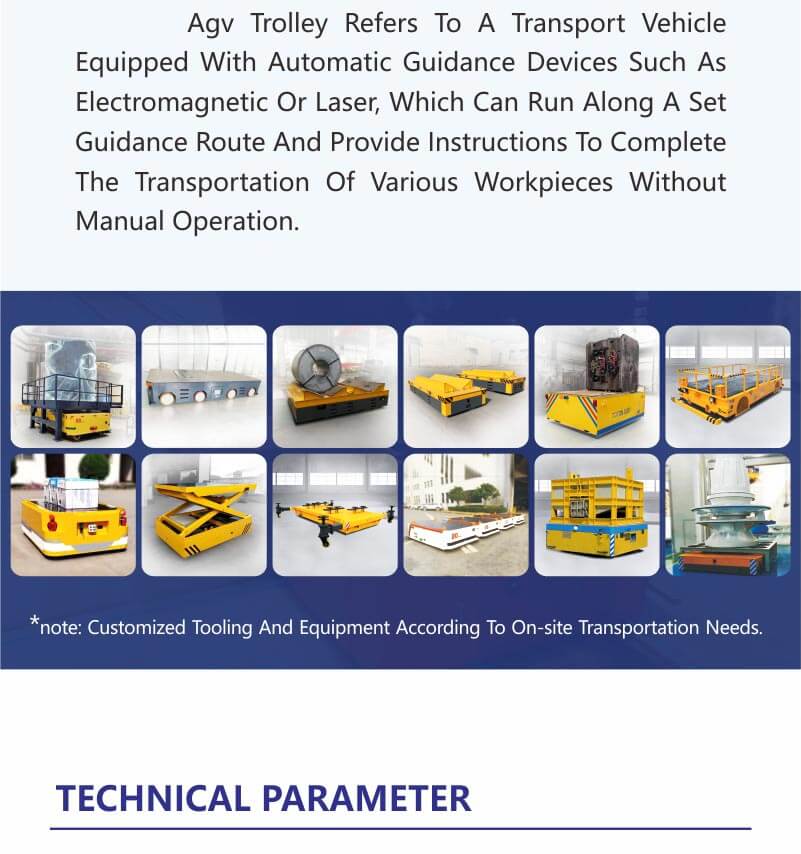

  4. Customization: Load capacity and dimensions can be customized according to specific requirements.

1-Ton AGV for a Food Processing Plant:

This is a 1-ton-capacity AGV designed for use in a cleanroom environment to transport finished food products. The vehicle follows a 40-meter magnetic strip to transport finished products to the loading area, where a forklift then transfers them to the warehouse, completing the material handling process.

agv transfer cart for handling materialsAGV CART FRAME

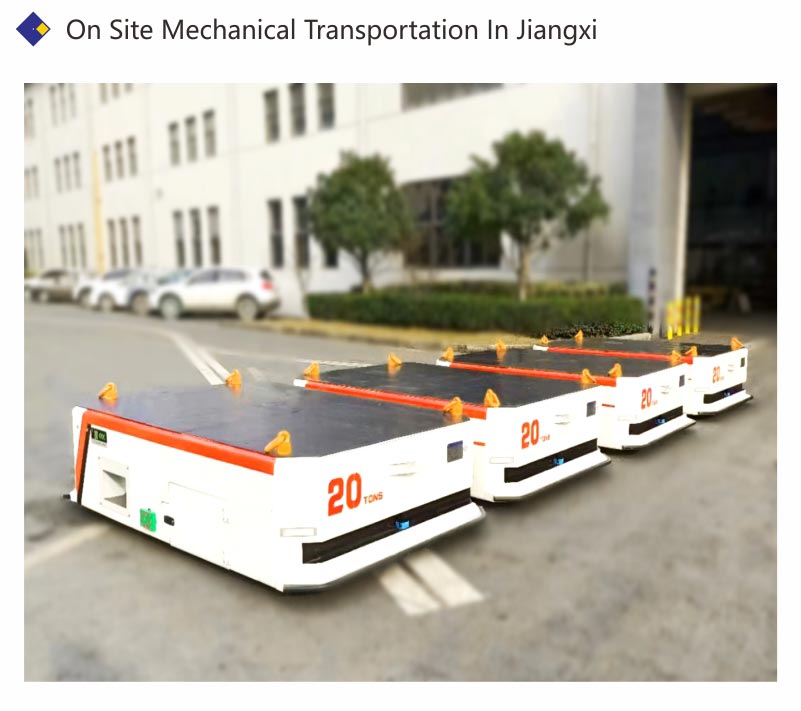

Customer Cases
