Technical Parameter
What is a Straddle Carrier?

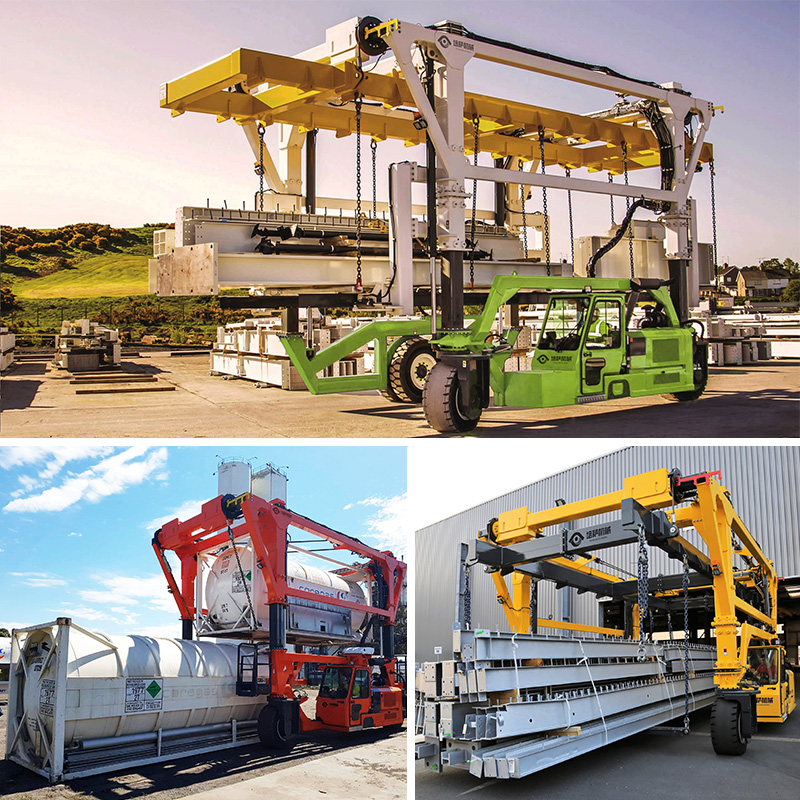

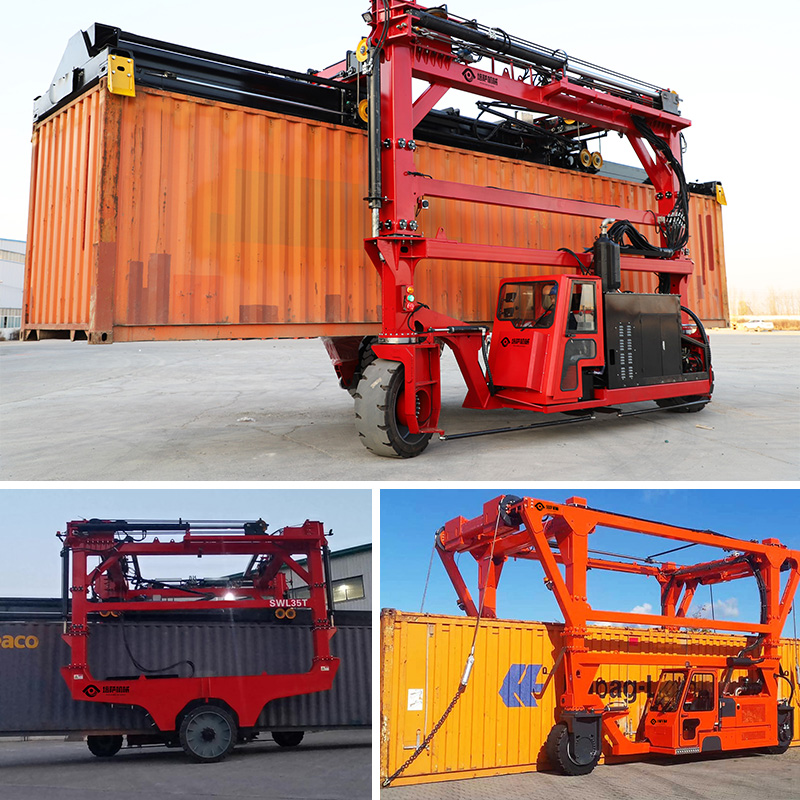

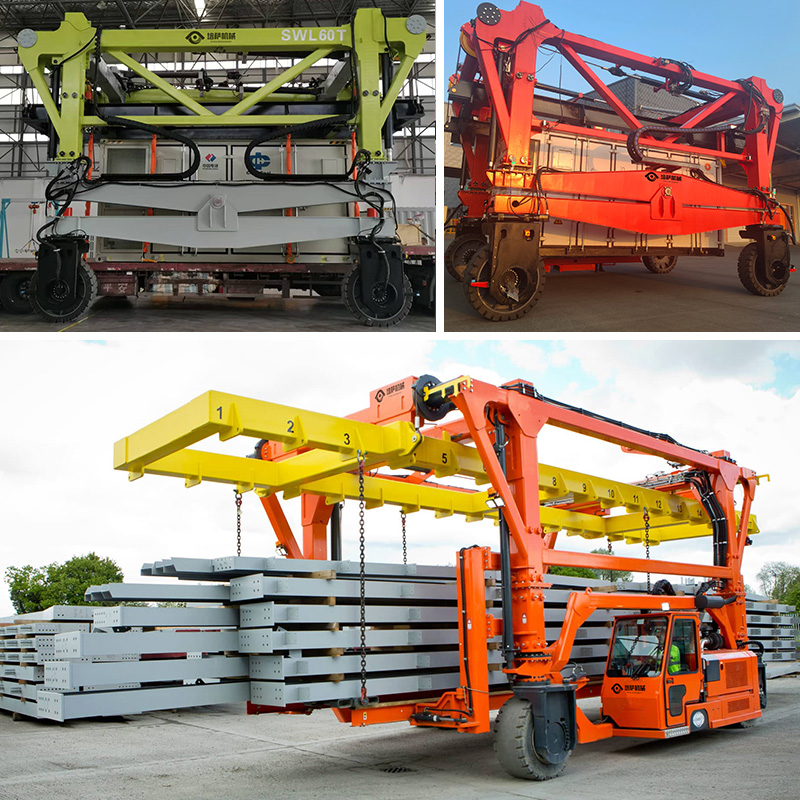

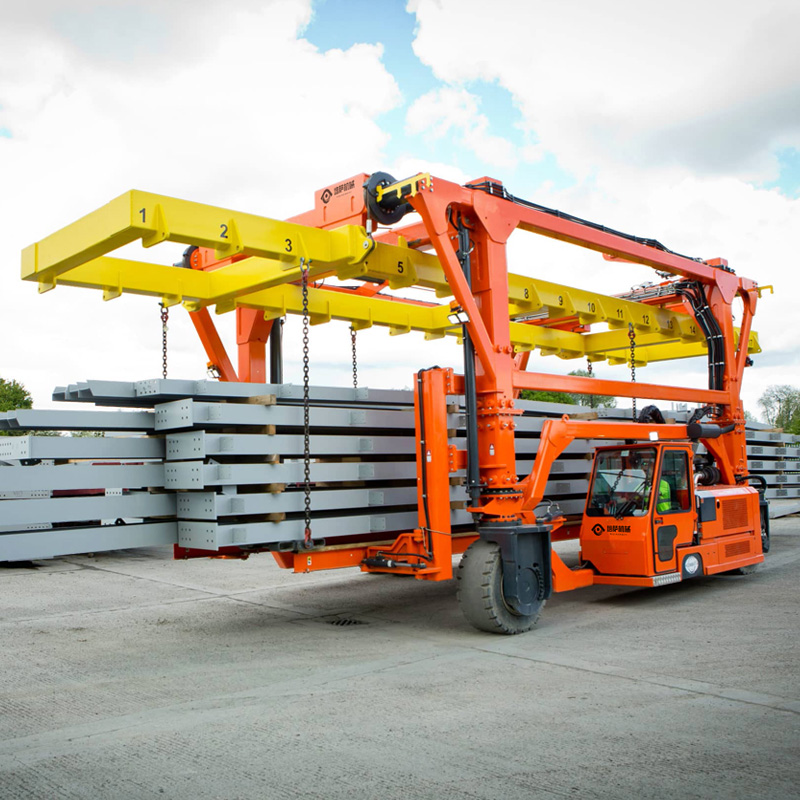

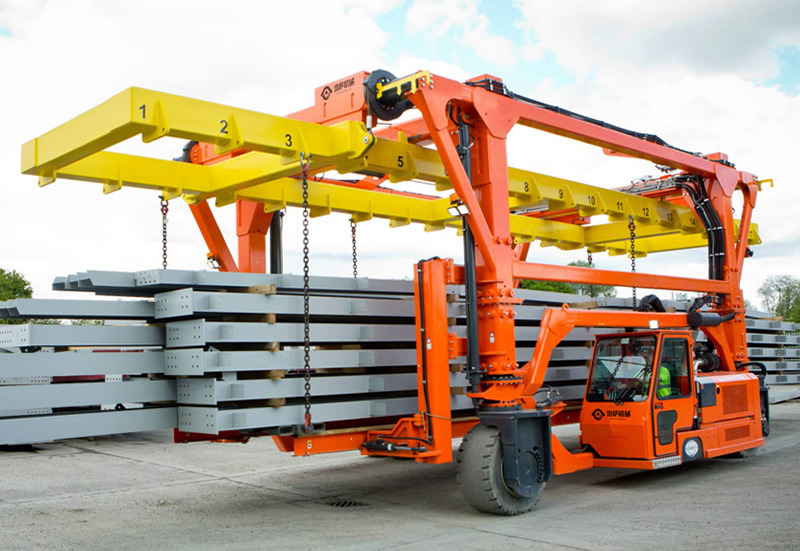

A Straddle Carrier is a specialized transport vehicle designed with a unique concept that combines the functions of a crane and an electric transfer cart. It is widely used in ports and terminals for efficient cargo handling.
Its most distinctive advantage lies in its straddle-type structure: the vehicle is designed to span over containers. The frame is equipped with professional and purpose-built lifting devices. Controlled by a hydraulic system, the Straddle Carrier can accurately grip, lift, transport, and set down containers or other heavy loads with high precision and safety.
| Item | MST3531 | MST6037 | MST8037 |
|---|
| Model | MST3531 | MST6037 | MST8037 |
| Capacity | 35 t | 60 t | 80 t |
| Length × Width × Height | 9200 × 5100 × 5500 mm / 7110 × 5100 × 6100 mm | 9250 × 5700 × 6350 mm | 12500 × 6000 × 6350 mm |
| Effective Inner Width | 3100 mm | 3750 mm | 3750 mm |
| Wheelbase | 6010 mm | 6600 mm | 7400 mm |
| Duplex Lifting Height | N/A / 1550 mm | 1750 mm | 1750 mm |
| Max. Lifting Height (Below Spreader) | 4600 mm / 6150 mm | 6300 mm | 6300 mm |
| Min. Ground Clearance | 230 mm | 310 mm | 310 mm |
| Tire Quantity | 4 | 4 | 8 |
| Deadweight (Not Including Spreader) | 19 T / 21 T | 35 T | 45 T |
| Engine (Weichai – China Stage III) | 103 kW | 129 kW | 176 kW |
| Closed Travel Pump | Hytek / Danfoss / PMP
|
| Empty Load Max. Speed | 115 m/min | 80 m/min | 80 m/min |
| Full Load Max. Speed | 80 m/min | 50 m/min | 50 m/min |
| Turning Radius | 6950 mm | 8900 mm | 13000 mm |
| Gradeability (No-load / Full-load) | 6% / 3% |
| Control Mode | Cab driving (remote control optional) | Cab driving (remote control optional) | Cab driving (remote control optional) |
| Tires | Solid tires | Solid tires | Solid tires |
| Lifting Tools | Chain + Lock / Automatic Spreader | Oversized Load Spreader | Oversized Load Spreader |
Key Features of the Best-Selling Straddle Carrier:
High lifting height & strong load capacity
Capable of lifting and handling containers, vehicles, and other heavy loads ranging from 20 to 80 tons.
Flexible and precise maneuverability
Equipped with omnidirectional wheels, allowing smooth operation in narrow aisles and confined spaces. The omnidirectional wheel system enables 360-degree rotation, diagonal movement, and highly flexible positioning.
Multiple control options
Can be operated via remote control or cab driving, offering flexibility to suit different working environments and operator preferences.
Cost-effective operation
No need any rail system is required, and there is no need for reinforced concrete foundations. As long as the ground is compacted and level, the Straddle Carrier can operate smoothly, significantly reducing infrastructure and installation costs.
